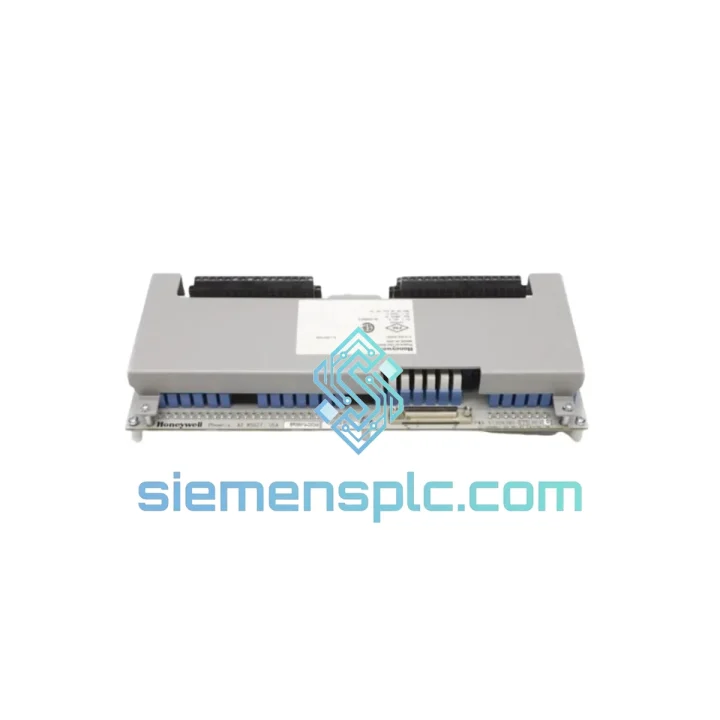

Honeywell 51308380-175 CC-SDOR01 DCS Output Relay Module – Experion PKS

Honeywell 51308380-175 CC-SDOR01 — Digital Output Relay Module for Experion PKS Process Control Architecture

The Honeywell 51308380-175 (CC-SDOR01) is an 8-channel digital output relay module engineered for deployment within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. Operating on the C300 Series I/O backplane, this module provides galvanically isolated dry-contact relay switching for field-side actuators, solenoid valves, motor starters, and alarm annunciators in safety-critical process environments. Its relay contact architecture decouples the control-side logic voltage from field-side load circuits, a design requirement in facilities where field wiring may carry inductive transients or mixed voltage classes.

Unlike solid-state output modules that rely on triac or transistor switching, the CC-SDOR01 uses electromechanical relay contacts. This makes it the preferred selection for applications requiring zero leakage current at open state, bidirectional AC/DC load compatibility, and inherent galvanic isolation without additional external isolation relays. The module integrates directly into the Experion PKS FTE (Fault Tolerant Ethernet) network topology and is recognized natively by Experion Station configuration tools, eliminating manual I/O mapping overhead during commissioning.

Each channel’s relay coil is driven by an onboard ASIC that receives switching commands from the C300 controller via the CIOM (C300 I/O Module) backplane bus. The module’s internal watchdog logic forces all relay outputs to a de-energized (fail-safe) state upon loss of backplane communication, a behavior configurable per channel in the Experion PKS Control Builder environment. This deterministic fail-safe response is a fundamental requirement in SIL-rated interlock loops and emergency shutdown (ESD) applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-SDOR01’s internal architecture separates the control-side logic domain from the field-side switching domain through two distinct isolation barriers. The first barrier is an optocoupler stage between the backplane ASIC and the relay coil driver transistor. This stage attenuates common-mode noise injected from the C300 backplane bus and prevents field-side fault currents from propagating into the controller’s logic supply rail. The optocoupler’s CTR (current transfer ratio) is selected to maintain switching fidelity at the module’s rated coil drive current across the full operating temperature range of 0 °C to 60 °C.

The second isolation barrier is the relay contact gap itself. Electromechanical relay contacts provide a physical air gap at open state, yielding leakage currents in the sub-microampere range — orders of magnitude lower than solid-state alternatives. This characteristic is critical in applications where a leaking output could partially energize a solenoid valve or maintain a motor contactor in an indeterminate state.

The module’s onboard watchdog timer monitors backplane heartbeat frames from the C300 controller. If the inter-frame gap exceeds the configured timeout threshold (typically 100–500 ms, set in Control Builder), the watchdog asserts a coil de-energize command to all eight relay drivers simultaneously. This hardware-enforced fail-safe path operates independently of the module’s firmware execution context, meaning a firmware hang cannot prevent the fail-safe response — a design characteristic aligned with IEC 61511 functional safety requirements for SIL 1 and SIL 2 interlock applications.

EMC performance is addressed through onboard transient suppression diodes across each relay coil. When the coil driver transistor switches off, the collapsing magnetic field generates a back-EMF spike. Without suppression, this spike can couple into adjacent signal traces and degrade the optocoupler’s switching threshold. The suppression diodes clamp the back-EMF to within the transistor’s rated V_CE, maintaining signal integrity across all eight channels during simultaneous switching events — a scenario common in batch process sequences where multiple actuators are commanded in a single scan cycle.

System Integration Benefits

• Native Experion PKS Recognition: The CC-SDOR01 is enumerated automatically by the Experion PKS FTE network during I/O scan. No third-party driver or manual address mapping is required, reducing commissioning time and eliminating configuration transcription errors.
• Deterministic Scan Cycle Alignment: Relay output commands are synchronized to the C300 controller’s deterministic scan cycle (configurable from 100 ms to 1000 ms), ensuring that field-side switching events occur within a bounded time window relative to the control algorithm execution.
• Per-Channel Diagnostic Transparency: The module reports per-channel relay coil status and contact feedback discrepancy (where external feedback wiring is configured) back to the Experion PKS historian and alarm subsystem, enabling maintenance teams to detect welded contacts or open-circuit field wiring without physical inspection.
• Hot-Swap Without Process Interruption: In redundant C300 architectures, the CC-SDOR01 supports live module replacement. The redundant controller maintains output state during the swap interval, and the replacement module synchronizes its relay states from the active controller’s output image upon insertion.
• Configurable Fail-Safe State Per Channel: Control Builder allows engineers to define the fail-safe relay state (energized or de-energized) independently for each of the eight channels, accommodating both normally-open and normally-closed field device wiring conventions without external relay inversion logic.
• Reduced Panel Wiring Complexity: The dry-contact relay output eliminates the need for external isolation relays between the DCS output and field devices operating at voltages above the DCS logic supply. This reduces terminal block count, panel footprint, and potential failure points in the field junction box.
• Integrated Surge Suppression: Onboard transient voltage suppression on each relay coil driver protects adjacent module circuitry from inductive load switching transients, maintaining signal integrity across the full 8-channel array during simultaneous switching operations.
• Backward Compatibility Across Experion PKS Revisions: The CC-SDOR01 hardware revision is compatible with Experion PKS R400 through current releases, allowing it to be deployed as a direct replacement in existing installations without firmware upgrade dependencies or I/O configuration migration.

Quality Assurance & Global Logistics

Every Honeywell 51308380-175 CC-SDOR01 unit dispatched from our Xiamen, China facility is sourced from authenticated Honeywell distribution channels. Physical inspection covers PCB surface condition, connector pin integrity, authentic Honeywell date codes, and revision label verification. Functional bench testing confirms relay coil energization, contact switching, and backplane communication handshake prior to packaging.

Units are packed in anti-static ESD shielding bags per IEC 61340-5-1, placed in foam-lined cartons rated for international air freight handling. Shipments from Xiamen reach major industrial hubs in Southeast Asia within 3–5 business days, Europe within 5–7 business days, and North America within 5–8 business days via DHL Express, FedEx International Priority, or UPS Worldwide. Full export documentation — commercial invoice, packing list, HS code declaration, and certificate of origin — is prepared for every shipment. Bulk project orders for EPC contractors and system integrators are accommodated with volume pricing and consolidated freight options. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.
