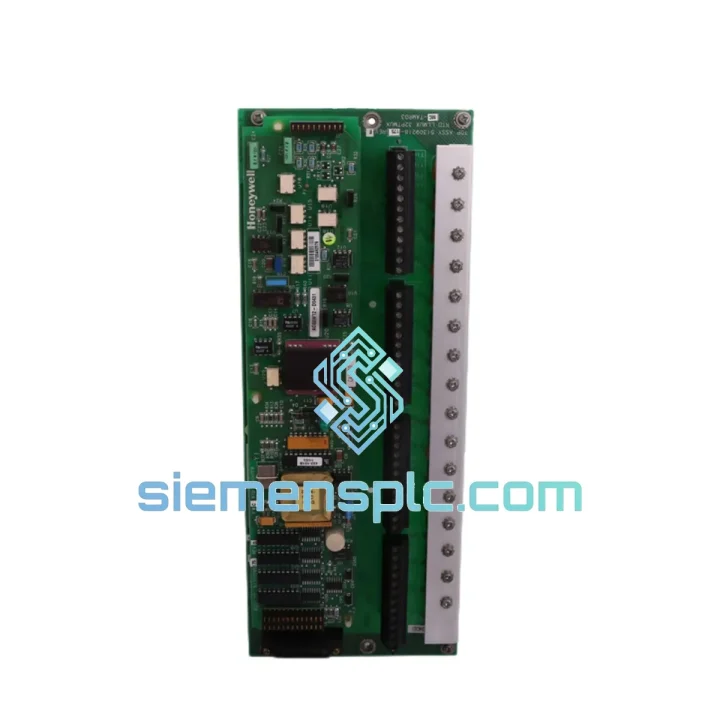

Honeywell 51309218-175 MC-TAMR03 DCS I/O Module – TDC 3000

Honeywell 51309218-175 MC-TAMR03: Low-Level Analog Multiplexer Module in TDC 3000 Control Architecture

The Honeywell MC-TAMR03, part number 51309218-175, is a low-level analog multiplexer (Mux) module deployed within the TotalPlant™ DCS I/O subsystem. Its primary function in the control loop is to aggregate multiple low-amplitude thermocouple and millivolt signals — typically ranging from −10 mV to +100 mV — onto a shared analog bus for sequential conversion by a downstream A/D processor. This multiplexed architecture reduces the per-channel hardware cost in high-density temperature measurement applications while maintaining the signal fidelity required for closed-loop process control in refining, petrochemical, and power generation environments.

Within the TDC 3000 I/O hierarchy, the MC-TAMR03 sits between the field termination assembly and the High-Performance Process Manager (HPM) or Basic Process Manager (BPM). It does not perform analog-to-digital conversion independently; instead, it conditions and routes low-level signals through a solid-state multiplexer switch matrix to the shared conversion resource on the I/O carrier. This design concentrates conversion accuracy at a single calibrated point, reducing cumulative offset errors that would otherwise accumulate across independent per-channel converters. The module’s channel-scan cycle is synchronized with the HPM’s I/O scan period, ensuring deterministic data latency across all multiplexed inputs.

In thermocouple measurement loops, the MC-TAMR03 handles cold-junction compensation (CJC) at the termination panel interface, with CJC reference data passed alongside the multiplexed signal to the process manager for software-based temperature linearization per IEC 60584 thermocouple tables. This approach allows a single module to support mixed thermocouple types (J, K, T, E, R, S) across its input channels without hardware reconfiguration, provided the HPM configuration database is updated accordingly.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Multiplexer Switch Matrix and Scan Sequencing
The MC-TAMR03 employs a CMOS analog switch matrix to route one of 16 differential input channels to the shared output bus at a time. The scan sequence is controlled by address lines driven from the I/O carrier’s local controller, which cycles through all 16 channels within a single HPM I/O scan period. Because the switch matrix uses break-before-make switching, there is no momentary short between adjacent channels during transition — a critical requirement when multiplexing thermocouple signals where even a 50 µV transient can corrupt a 10 mV full-scale reading. The settling time after each channel switch is hardware-enforced by an RC filter on the output bus, ensuring the downstream A/D converter samples only after the signal has stabilized to within ±0.1% of its final value.

Optical Isolation Architecture and EMC Design
Field-side inputs are galvanically isolated from the backplane bus through optocoupler barriers rated at 500 V DC working isolation. This isolation topology serves two functions: it prevents ground loop currents — common in large industrial plants where field ground potential can differ from control room ground by several volts — from corrupting the low-level mV signals, and it provides a defined barrier against transient overvoltages induced by nearby switching equipment or lightning coupling on field cable runs. The module’s PCB layout places the field-side circuitry and backplane-side circuitry in separate ground planes connected only through the isolation barrier, with guard traces surrounding the high-impedance analog input traces to suppress leakage currents that would otherwise appear as offset errors at the microvolt level.

Common Mode Rejection and Normal Mode Filtering
Achieving ≥ 120 dB CMRR at 50/60 Hz requires matched impedance on both differential input legs. The MC-TAMR03 uses laser-trimmed thin-film resistors in the input network to maintain differential balance to within 0.01%, which directly determines the CMRR floor. A two-stage LC filter on each input channel provides ≥ 60 dB normal mode rejection at the power line frequency, attenuating induced noise from parallel cable runs in cable trays shared with 480 V AC motor feeders — a common installation scenario in refinery and chemical plant environments.

Cold-Junction Compensation Reference Circuit
The CJC reference thermistor is mounted on the field termination assembly at the point where thermocouple extension wire transitions to copper conductors. The MC-TAMR03 reads the CJC thermistor resistance via a dedicated measurement channel (channel 0 in the scan sequence) and passes the raw resistance value to the HPM, which applies the Callendar–Van Dusen equation for RTD linearization and adds the CJC offset to the thermocouple EMF reading before applying the IEC 60584 polynomial for final temperature conversion. This distributed CJC architecture means the module itself does not need to be recalibrated when thermocouple types are changed — only the HPM configuration database requires updating.

System Integration Benefits

• Deterministic I/O Scan Latency: The MC-TAMR03’s scan cycle is phase-locked to the HPM’s I/O scan period (configurable from 100 ms to 2 s), ensuring all 16 channels are updated within a single scan cycle with no jitter introduced by the multiplexer hardware. This determinism is essential for cascade control loops where the secondary loop must receive updated process variable data within a defined time window.
• Reduced Field Wiring Density: By multiplexing 16 thermocouple inputs through a single module slot, the MC-TAMR03 reduces the number of I/O carrier slots required for high-density temperature measurement applications by a factor of up to 8 compared to single-channel analog input modules, directly reducing cabinet space, wiring labor, and termination hardware costs.
• Mixed Thermocouple Type Support: A single MC-TAMR03 can simultaneously handle J, K, T, E, R, and S type thermocouples across its 16 channels, with type assignment managed entirely in the HPM configuration database. No hardware jumpers or module variants are required for type selection, simplifying spare parts inventory management.
• Integrated Diagnostic Transparency: The module reports open-circuit thermocouple faults (detected as out-of-range mV readings), CJC sensor failures, and multiplexer address errors to the HPM’s diagnostic register. These fault codes are surfaced in the TDC 3000 operator console as tagged alarms, enabling maintenance personnel to identify the specific failed channel without physical inspection of the I/O cabinet.
• Backplane Hot-Swap Compatibility: The MC-TAMR03 supports live insertion and removal from the I/O carrier without requiring a system shutdown, provided the HPM is configured for redundant I/O operation. During module removal, the HPM substitutes the last valid reading or a configured fallback value for the affected channels, maintaining control loop continuity during maintenance operations.
• Galvanic Isolation for Multi-Ground Environments: The 500 V DC isolation barrier between field inputs and the backplane eliminates ground loop interference in plants where field instruments share grounding infrastructure with high-power electrical equipment. This is particularly relevant in offshore platforms and refineries where ground potential differences of 2–5 V between instrument and power system grounds are common.
• Compatibility with Redundant HPM Configurations: In dual-HPM redundant configurations, the MC-TAMR03 presents its output to both primary and backup HPMs simultaneously via the I/O carrier’s dual-bus architecture. Switchover from primary to backup HPM does not interrupt the module’s scan cycle, ensuring bumpless transfer of process variable data to the backup controller.
• Long-Term Platform Continuity: The MC-TAMR03 is mechanically and electrically compatible with all TDC 3000 I/O carrier generations, including the original TDC 2000 carrier with adapter. This backward compatibility allows plants to extend the operational life of legacy DCS infrastructure without requiring a full I/O subsystem replacement, supporting IEC 61511 functional safety lifecycle management requirements for existing SIL-rated loops.

Quality Assurance & Global Logistics

Every Honeywell 51309218-175 MC-TAMR03 dispatched from our Xiamen facility undergoes a documented four-stage verification process before packaging. At intake, each unit’s manufacturer markings, date codes, and lot numbers are cross-referenced against Honeywell’s known production references to screen for counterfeit or re-marked units — a documented risk in the secondary market for legacy DCS components. Units with inconsistent markings, evidence of PCB rework, or non-original conformal coating are rejected and quarantined.

Physical inspection covers connector pin condition, housing integrity, label adhesion, and PCB surface examination under magnification for signs of re-balling, sanding, or re-coating. Where test fixtures are available, modules are powered on a compatible TDC I/O carrier and exercised through a channel-scan sequence to verify multiplexer addressing, CJC channel response, and backplane communication handshake. Test results are logged and available to qualified buyers upon request.

Packaging follows ESD-safe protocols: each module is sealed in a static-dissipative bag, placed in foam-lined inner packaging, and shipped in a double-wall corrugated outer carton with fragile and orientation labels. Export documentation — commercial invoice, packing list, Certificate of Conformance, and Country of Origin declaration — is prepared for every international shipment. HS Code 8537.10 classification is applied for customs clearance. Shipping is via DHL Express or FedEx International Priority for standard orders; sea freight LCL/FCL is available for bulk procurement. In-stock units ship within 3–5 business days of order confirmation. A 12-month warranty against manufacturing defects and dead-on-arrival failures applies from the shipment date.
