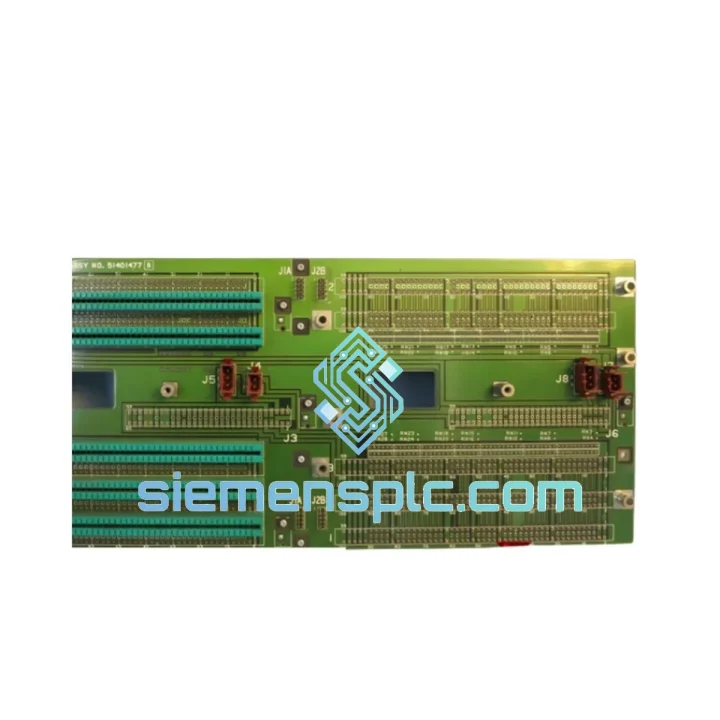

Honeywell 51401477-100 DCS Backplane Chassis

Honeywell 51401477-100 — Your I/O Rack Is Down. Every Minute Costs Money. We Ship in 24 Hours.

Production halted. Your TDC-3000 or PlantScape DCS is throwing RACK NOT RESPONDING faults. The HPM can’t see the I/O rack. Operators are in manual. Maintenance is pulling modules trying to isolate the fault — and the backplane chassis is the culprit. You need a Honeywell 51401477-100 on-site, fast, and you need it to be the real thing.

We stock the 51401477-100 (cross-reference: 51402455-100 / MP-DNCF02-201) in Xiamen, inspected and ready to dispatch within 24 hours of PO confirmation. No OEM lead times. No broker delays. A verified chassis, packed for export, handed to DHL or FedEx the same day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of emergency callouts across refineries, LNG terminals, and power plants. Here is what actually fails on the 51401477-100 chassis and what you must verify before the replacement goes live.

Fault 1 — Backplane Bus Connector Oxidation (Most Frequent)
Gold-plated edge connectors degrade in H₂S-rich or high-humidity environments. Symptoms: intermittent COMM FAIL alarms on HPM or PM controllers, I/O modules that pass self-test in isolation but fault when seated in the rack. Before condemning the chassis, clean all connector fingers with 99% IPA and reseat every module. If faults migrate across multiple slot positions, the bus rail is compromised — the chassis must be replaced, not cleaned.

Fault 2 — Power Rail Collapse Under Load
A single shorted module can drag down the entire chassis DC rail, triggering cascade faults across all slots simultaneously. Isolation method: power down, remove all modules one by one, restore power after each removal. The slot that clears the fault identifies the shorted module. Before reinstalling anything into the replacement chassis, inspect the power rail traces on the old unit for burn marks or discoloration — a rail that has been shorted once may have damaged the bus wiring harness, not just the chassis PCB.

Fault 3 — Rack Address Rotary Switch — Critical Configuration Step
The 51401477-100 chassis carries no firmware, but the rack address rotary switch on the rear panel determines how the HPM/PM controller maps this rack in the DCS configuration. Before removing the failed chassis: photograph the rotary switch position and record the rack address from the DCS system display. Set the replacement chassis rotary switch to the identical position before energizing. A one-position mismatch generates a RACK NOT RESPONDING fault that looks identical to the original hardware failure — and wastes hours of troubleshooting time.

Fault 4 — Slot Guide Cracking from Forced Hot-Swap
Forcing module insertion under live conditions — a common field shortcut under pressure — cracks the plastic slot guides. A cracked guide allows the module to seat at a slight angle, causing intermittent pin contact that is nearly impossible to diagnose without physical inspection. Examine every slot guide in the replacement chassis before seating modules. Any chassis with cracked guides should be rejected before installation.

Fault 5 — Chassis Frame Ground Continuity
The chassis frame is the EMI ground reference for all seated I/O modules. Measure continuity between the chassis ground lug and the rack enclosure ground bus before powering up. Target: <0.1 Ω. A high-resistance ground path injects noise into analog I/O channels — you will see 4–20 mA signals drifting without any corresponding process change, which is extremely difficult to trace back to a grounding fault under production pressure.

Fault 6 — Module Firmware Compatibility After Chassis Swap
If the replacement chassis is being installed into a system that has been upgraded since the original chassis was commissioned, verify that the I/O module firmware versions seated in the new chassis are compatible with the current HPM/PM firmware revision. Honeywell TDC-3000 systems with mixed firmware generations can exhibit silent data errors on analog input channels — no fault alarm, just wrong process values. Pull the system firmware revision from the DCS engineering workstation before signing off on the replacement.

Reliability in Harsh Conditions

The 51401477-100 was built for continuous-process industries where the control room environment is actively hostile to electronics. The steel chassis frame meets IEC 60068-2-6 vibration profiles — the same standard applied to compressor skids and turbine pedestals where resonant frequencies destroy PCB solder joints within months of installation. In field deployments across LNG trains, crude distillation units, and kraft recovery boilers, this chassis has demonstrated service lives exceeding 15 years under proper maintenance regimes.

Thermal performance is validated to 60 °C ambient without derating. This matters in tropical plant rooms and enclosed control cabinets where HVAC failures are a secondary emergency — the chassis will not go into thermal shutdown and take your process offline a second time. The backplane bus connectors use gold-over-nickel plating that resists sulfur compounds and chloride corrosion, the two dominant chemical attack vectors in petrochemical and coastal industrial environments.

Every unit dispatched from our Xiamen facility undergoes incoming inspection before it enters stock: visual examination of all connector pins under magnification, slot guide integrity check across all positions, chassis frame ground continuity measurement, and dimensional verification against OEM mechanical drawings. Units that do not pass do not ship. We do not move product on the basis of paperwork alone — physical inspection is non-negotiable for emergency-grade inventory.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), a DHL and FedEx hub with direct freighter connections to Frankfurt, Dubai, Los Angeles, and Singapore. This location was chosen specifically to compress the time between your purchase order and the chassis clearing customs at your plant’s nearest airport.

Dispatch Timeline:

• Day 0: PO confirmed before 14:00 CST — unit pulled from shelf, inspection tag applied, packed in anti-static bag inside foam-lined export carton. Handed to DHL Express or FedEx International Priority same day.
• Day 0–1: AWB number and commercial invoice emailed within 2 hours of carrier handover. You have tracking before you leave the office.
• Day 2–3: Delivery to Southeast Asia, Middle East, and Europe. Day 3–4 for North America and South America.

For customers with freight forwarder accounts, EXW Xiamen terms are available with full export documentation: commercial invoice, packing list, certificate of conformance, and inspection report. HS Code 8537.10 applies for customs classification in most jurisdictions. We can pre-fill your customs broker’s documentation package on request — this has consistently saved 12–24 hours on customs clearance at high-scrutiny ports.

Emergency same-day dispatch is available for orders confirmed before 14:00 CST. For time-critical plant emergencies, contact us directly on WhatsApp — we monitor around the clock.
