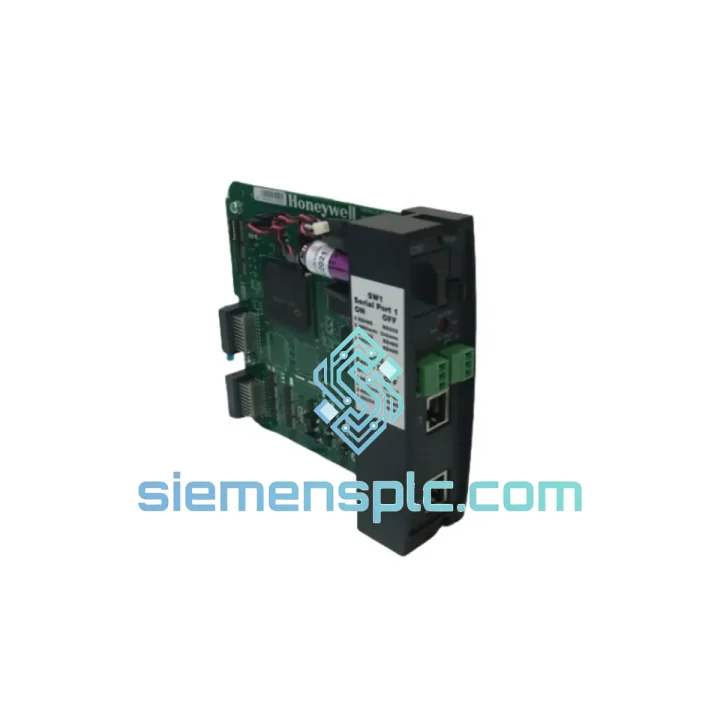

Honeywell 6582800029 Digital Input Module – Experion PKS

Honeywell 6582800029 — 32-Channel Digital Input Module in Experion PKS Distributed Control Architecture

The Honeywell 6582800029 is a 32-channel digital input (DI) module engineered for deployment within the Honeywell Experion PKS (Process Knowledge System) distributed control system. It occupies a single slot in the Series C I/O chassis and communicates with the C300 Controller via the FTE (Fault Tolerant Ethernet) backplane link, delivering deterministic signal acquisition at scan rates consistent with process-critical loop requirements. Each of the 32 input channels is individually optically isolated, providing a galvanic barrier rated at 1,500 V AC between field wiring and the backplane logic bus — a design choice that directly limits ground-loop interference propagation in multi-panel installations.

Field-side input voltage acceptance spans 24 V DC nominal with a threshold detection window of 11–30 V DC for logic-high recognition and below 5 V DC for logic-low, accommodating the signal variance typical of solenoid valve feedback, limit switch contacts, and proximity sensor outputs across extended cable runs. The module’s internal watchdog timer generates a hardware fault token on the FTE link within one scan cycle if any channel’s signal conditioning circuit fails to respond, enabling the C300 to execute pre-configured failsafe substitution values without operator intervention.

Physically, the 6582800029 conforms to the CIOM-A and CIOM-B chassis form factor, with a 35-pin field termination assembly (FTA) interface. The module draws approximately 350 mA from the chassis 24 V DC power rail, contributing a predictable load budget for power supply sizing calculations. Operating temperature range is −20 °C to +70 °C, with humidity tolerance up to 95% RH non-condensing — parameters that satisfy IEC 61131-2 environmental class 3.2 requirements for enclosed panel installations in petrochemical and power generation environments.

At siemensplc.com, every Honeywell 6582800029 unit is sourced through verified supply channels, inspected for label integrity, connector pin condition, and firmware revision markings, and shipped with full lot traceability documentation. Stock is held in Xiamen, China, with DHL Express and FedEx International Priority dispatch available for same-day or next-business-day shipment on confirmed orders.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6582800029’s per-channel optical isolation architecture is implemented using discrete optocoupler arrays rather than a shared isolation barrier, which means a wiring fault or transient surge on one field circuit cannot couple noise into adjacent channels through a common isolation stage. This is a measurable advantage over modules that use a single isolation transformer for an entire channel bank, where inter-channel crosstalk under high dV/dt transient conditions can exceed 50 mV — sufficient to cause spurious state transitions in adjacent channels operating near the logic-low/high boundary.

The module’s input filter network applies a hardware RC time constant of approximately 3 ms per channel before the signal reaches the optocoupler input stage. This filter attenuates contact bounce from mechanical limit switches and relay contacts, reducing false-positive state transitions without requiring software debounce logic in the C300 control strategy — a design that keeps scan-cycle CPU load predictable and independent of field wiring quality.

EMC compliance is achieved through a combination of shielded PCB trace routing on the field-side input lines, ferrite bead suppression on the power supply pins, and a chassis ground strap connection point on the module faceplate. The module meets IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge immunity, 1 kV line-to-line) test levels, which are the relevant benchmarks for panel installations in proximity to variable-frequency drives and high-current switching equipment.

The watchdog and diagnostic logic embedded in the module’s ASIC continuously monitors the optocoupler output state against the expected scan-cycle update pattern. If a channel’s output fails to toggle within a configurable timeout window — indicating a stuck-at fault in the optocoupler or field wiring open-circuit — the module sets a channel-level diagnostic bit in the FTE data frame. The C300 controller reads this bit within the next scan cycle and can execute a pre-programmed alarm or substitution action without requiring a module-level fault to propagate to a system-wide alarm state.

System Integration Benefits

• Deterministic scan-cycle alignment: The module synchronizes its channel data update to the C300’s FTE polling cycle, ensuring all 32 input states are captured within a single consistent time stamp — eliminating the inter-channel skew that occurs in polled I/O architectures where channels are read sequentially.
• Channel-level diagnostic transparency: Each channel reports individual status bits (open-circuit, out-of-range, communication fault) directly to the Experion PKS Station display, enabling maintenance personnel to isolate a single field device fault without removing the module from service.
• Hot-swap capability: The CIOM chassis supports module replacement under power, allowing the 6582800029 to be extracted and reinserted without de-energizing the chassis or interrupting adjacent module operation — a critical feature for continuous-process plants with no scheduled downtime windows.
• Redundant FTE path support: When paired with a redundant C300 controller pair, the module’s FTE interface participates in the controller switchover protocol, maintaining input data continuity to the standby controller with no data loss during the switchover event.
• Integrated power monitoring: The module reports its 24 V DC rail voltage to the chassis power monitor, contributing to the system-level power budget display in Experion Station — allowing engineers to verify power margin without physical measurement at the chassis.
• Configurable input filtering: Beyond the hardware RC filter, the C300 control strategy can apply additional software filter constants per channel, enabling application-specific debounce tuning for high-vibration environments where mechanical contact chatter exceeds the hardware filter’s attenuation capability.
• Alarm prioritization support: Channel diagnostic bits are mapped to Experion PKS alarm priority levels through the control strategy configuration, allowing process engineers to assign different response procedures to a field device fault versus a module communication fault — without custom programming.
• Backward compatibility with legacy CIOM chassis: The 6582800029 is electrically and mechanically compatible with both first-generation and current-revision CIOM-A/B chassis, protecting the capital investment in existing Experion PKS infrastructure during incremental I/O expansion projects.

Quality Assurance & Global Logistics

Every Honeywell 6582800029 unit dispatched from siemensplc.com is a genuine OEM-manufactured component produced under Honeywell’s ISO 9001-certified quality management system. Units are not remanufactured, relabeled, or sourced from unverified secondary markets. Pre-shipment inspection covers label authenticity, connector pin integrity, housing condition, and firmware revision marking against the known production revision matrix for this part number.

Inventory is stocked at our Xiamen, China facility, positioned for efficient access to major international freight hubs including Xiamen Gaoqi International Airport (XMN) and Xiamen Port. Standard export documentation — commercial invoice, packing list, certificate of origin, and inspection certificate — is prepared for every shipment. Anti-static packaging with foam-lined outer cartons is used for all module shipments to prevent ESD damage and mechanical shock during transit.

Shipping options include DHL Express (2–4 business days to most destinations), FedEx International Priority (2–3 business days), and sea freight consolidation for bulk orders where lead time permits. Export compliance screening is applied to all orders in accordance with applicable EAR/ECCN regulations. A 12-month quality guarantee covers defects in materials and workmanship from the date of shipment, with DOA replacement processed within 5 business days of confirmed fault documentation.
