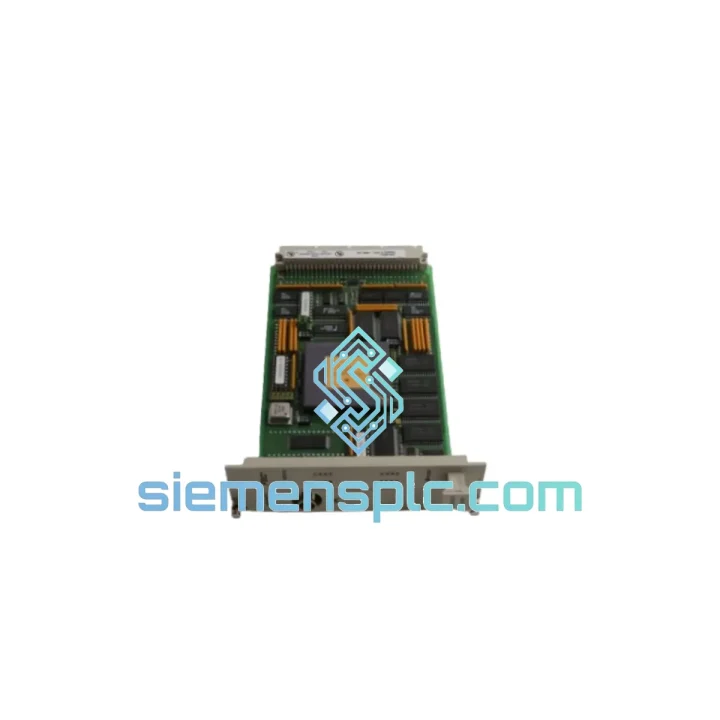

Honeywell 80364052-100 DCS Interface Board

80364052-100 Interface Board: Stop the Clock on Your Downtime — Ships Within 24 Hours

Every minute your TDC 3000 system sits offline, the losses compound. A failed interface board shouldn’t cost you a full production shift. The Honeywell 80364052-100 (cross-reference: 51401583-100) is pulled from verified surplus stock, bench-tested, and ready to leave Xiamen today. We’ve handled enough emergency callouts to know that the only thing worse than a board failure is waiting two weeks for a replacement.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 80364052-100 sits at the communication backbone of your TDC 3000 card cage. When it fails, symptoms are rarely subtle — you’ll see LCN communication faults, controller dropouts, or a complete loss of I/O response on the affected node. Here’s what to check before you pull the card and what to watch during swap-out:

Common Failure Indicators:

• Fault LED on the module face illuminated solid red — indicates internal watchdog trip, not a transient glitch.
• Intermittent “COMM FAIL” alarms on the HMI tied to a specific LCN node address — often the first sign of a degrading interface board before full failure.
• Loss of process data on one or more APM/BC controllers while adjacent nodes remain healthy — isolates the fault to the interface layer, not the network cable.
• Repeated controller restarts without a clear process cause — the interface board may be corrupting handshake packets during high-traffic periods.

Pre-Swap Checklist:

• Confirm slot address: TDC 3000 card cages use physical slot position for node addressing. Document the exact slot number before extraction — reinserting into the wrong slot will assign a different node address and cause a configuration mismatch.
• Check backplane connector pins: Bent or oxidized pins on the backplane are a common secondary cause of interface board failures. Inspect with a flashlight before inserting the replacement. Clean with isopropyl alcohol if oxidation is visible.
• Verify revision compatibility: The -100 suffix denotes the first hardware revision. If your system is running firmware R600 or later, confirm with your Honeywell system engineer whether a -150 revision is required. Mixing revisions in a multi-node cage can cause intermittent LCN arbitration errors.
• No DIP switch configuration required on this module — the 80364052-100 uses automatic slot-based addressing via the backplane. Do not attempt to manually set node addresses through software until the physical swap is confirmed stable.
• Cold swap only: This module is not hot-swappable in standard TDC 3000 configurations. Power down the affected card cage section before extraction. Failure to do so risks backplane damage and potential cascade faults to adjacent modules.
• Post-installation: After seating the replacement board, allow 90 seconds for the LCN self-test sequence to complete before checking node status on the HMI. A premature status check will show a false fault.

Fault Code Reference:

• LCN-E01 — Node not responding: check physical seating and backplane connector integrity first.
• LCN-E04 — Duplicate node address detected: verify no other module occupies the same slot position in a parallel cage.
• APM-F12 — Interface board watchdog timeout: typically indicates a board-level hardware fault; replacement is the correct action.
• TPS-COMM-003 — Firmware version mismatch: cross-check the replacement board’s firmware label against your system’s baseline revision sheet.

Reliability in Harsh Conditions

The 80364052-100 was engineered for continuous operation in process plant environments — not office-grade conditions. Honeywell’s TDC 3000 hardware platform was designed to meet IEC 61131-2 environmental requirements, and this interface board is no exception.

• Temperature range: Rated for 0°C to 60°C operating ambient. In practice, these boards have been recovered from card cages running at sustained 55°C ambient in tropical refinery environments and returned to full function after cleaning.
• Vibration tolerance: Designed to withstand continuous vibration profiles consistent with compressor rooms and pump stations. The PCB uses conformal coating on critical signal traces to prevent micro-fractures under sustained mechanical stress.
• Humidity resistance: Conformal coating provides protection against condensation and humidity up to 95% RH non-condensing. Units sourced from decommissioned plants are inspected for coating integrity before dispatch — any board showing delamination or corrosion is rejected.
• EMI shielding: The card cage grounding scheme and board-level shielding suppress conducted and radiated interference from adjacent VFDs, contactors, and high-current bus bars common in DCS panel rooms.
• Each unit we ship has passed a functional bench test under simulated LCN load conditions. We do not ship boards that have only passed a visual inspection.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia. When you confirm an order, here’s exactly what happens:

• Hour 0–2: Order confirmed, unit pulled from ESD-safe storage, functional test log attached to shipment documentation.
• Hour 2–6: Anti-static packaging, bubble wrap secondary layer, rigid outer carton. Export commercial invoice, packing list, and certificate of origin prepared.
• Hour 6–24: Handed to DHL Express or FedEx International Priority — carrier selected based on your destination country’s fastest available service at time of booking.
• Transit times: Southeast Asia 1–2 days. Middle East, Europe, North America 3–5 days. South America, Africa 5–7 days. All shipments include door-to-door tracking from Xiamen to your receiving dock.
• Customs documentation: HS code pre-declared, commercial invoice at correct declared value, and COO provided. For countries requiring import permits for industrial control equipment, we advise in advance — we’ve cleared customs in over 40 countries without a single seizure.
• Emergency freight: If your plant is in active shutdown and standard express isn’t fast enough, contact us directly on WhatsApp. We have access to same-day charter freight options for critical situations.
