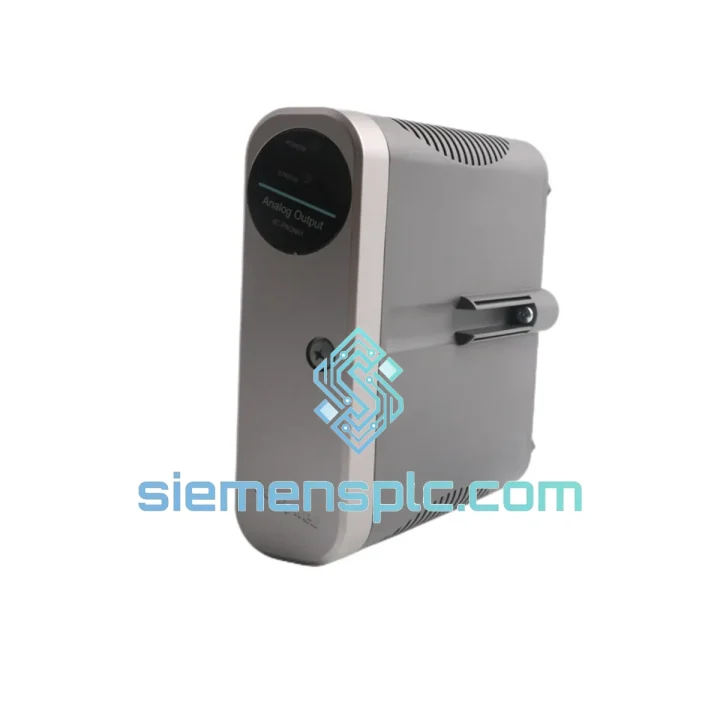

Honeywell 8C-PAON01 Analog Output Module – Experion PKS C300 Series

Honeywell 8C-PAON01 — 8-Channel Analog Output Module for Experion PKS C300 Process Control Architecture

The Honeywell 8C-PAON01 (catalog reference 51454357-175) is a dedicated analog output module engineered for deployment within the Experion PKS C300 distributed control system. Its primary function is to translate digitally computed setpoints from the C300 controller into precision 4–20 mA current signals that drive field actuators — control valves, variable-speed drives, electro-pneumatic positioners, and current-to-pressure transducers. In a closed-loop control architecture, the module sits at the terminal boundary between the controller’s execution cycle and the physical process, making its signal fidelity and channel isolation characteristics directly consequential to loop stability and regulatory performance.

Unlike general-purpose I/O cards, the 8C-PAON01 is designed around the Series C I/O subsystem’s IOTA (I/O Termination Assembly) architecture. The module plugs into a dedicated IOTA — either the 8C-TAON01 for standard single-ended wiring or the 8C-TAON11 for redundant configurations — which handles all field wiring terminations independently of the electronics card. This physical separation means the module can be extracted and replaced under power without disturbing field wiring, a critical operational advantage in continuous-process plants where loop interruption carries direct production cost.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 8C-PAON01 implements a per-channel 16-bit digital-to-analog converter architecture rather than a shared multiplexed DAC bus. Each of the eight output channels maintains its own dedicated conversion stage, which eliminates inter-channel settling time dependencies and ensures that a transient disturbance on one loop — such as a step change in valve demand — does not introduce crosstalk artifacts on adjacent channels. In high-density control cabinets where multiple fast-responding loops share a single I/O card, this parallel DAC topology is a measurable advantage over multiplexed designs.

Channel isolation is implemented via optical coupling at the boundary between the digital logic domain and the analog current-drive stage. The isolation barrier is rated at 500 V DC, which provides adequate protection against ground potential differences between field instruments and the control system common — a common failure mode in large plants where cable runs span multiple earthing zones. The optocoupler stage also attenuates high-frequency conducted noise injected from the field side, reducing the risk of DAC register corruption from capacitively coupled transients on long cable runs.

The module’s backplane communication uses the Series C I/O Link protocol, which operates over Honeywell’s Fault Tolerant Ethernet (FTE) infrastructure. The FTE layer provides dual-path redundancy at the network level: if the primary communication path between the C300 controller and the I/O chassis is interrupted, the secondary path assumes traffic within one scan cycle. From the 8C-PAON01’s perspective, this means the module continues to receive updated output values without a hold-last-value timeout triggering, preserving loop integrity during network maintenance or cable fault events.

The HART modem embedded in each channel operates concurrently with the 4–20 mA primary signal. The FSK (Frequency Shift Keying) HART carrier is superimposed on the DC current loop at 1200/2200 Hz without measurable interference to the analog setpoint accuracy, as the HART signal amplitude (±0.5 mA peak) is filtered by the receiving instrument’s input stage. This allows the C300 controller to poll HART device variables — including valve position feedback, actuator diagnostics, and device status — through the same two-wire loop used for the control signal, eliminating the need for separate HART multiplexer hardware.

The module’s EMC design incorporates multi-layer PCB ground planes with controlled impedance traces on the analog signal paths, ferrite bead filtering on power supply rails, and transient voltage suppression (TVS) diodes on all field-facing signal lines. These measures collectively address IEC 61000-4-4 (electrical fast transient), IEC 61000-4-5 (surge immunity), and IEC 61000-4-6 (conducted RF immunity) test requirements, which are the three most commonly encountered EMC failure modes in industrial cabinet environments.

System Integration Benefits

• Deterministic scan-cycle alignment: The 8C-PAON01 updates all eight output channels within a single C300 controller scan cycle, ensuring that multi-loop coordinated control strategies — such as cascade or ratio control — apply setpoint changes to all actuators in the same execution frame, eliminating inter-channel timing skew.
• Online module replacement without process interruption: When paired with the 8C-TAON11 redundant IOTA, the electronics card can be extracted and reinserted under power. The IOTA holds the last commanded output value on the field terminals during the swap interval, preventing actuator movement during the replacement procedure.
• Integrated HART pass-through to Experion asset management: HART device data collected by the module is forwarded to Honeywell’s Asset Management System (AMS) via the FTE backbone, enabling predictive maintenance workflows without additional field wiring or handheld communicators.
• Per-channel open-wire and over-range diagnostics: The module continuously monitors each output loop for open-circuit conditions (current below 3.6 mA) and over-range conditions (current above 20.5 mA), generating channel-level fault alarms that propagate to the Experion operator station within one scan cycle.
• Configurable fail-safe output states: Each channel can be independently configured to hold last value, drive to a defined safe current (e.g., 4 mA to close a fail-closed valve), or ramp to a setpoint at a controlled rate upon controller communication loss, supporting SIL-rated safety instrumented function design.
• Scalable chassis density: The Series C I/O chassis supports 4, 8, and 12-slot configurations. Multiple 8C-PAON01 modules can be installed in a single chassis, allowing up to 96 analog output channels per chassis enclosure and reducing cabinet footprint in high-channel-count applications.
• Unified engineering environment: Module configuration — including channel scaling, HART polling intervals, and fail-safe states — is performed entirely within Experion Control Builder, with no separate hardware configuration tool required. Configuration data is stored in the Experion database and automatically downloaded to replacement modules.
• Firmware version management via FTE: Module firmware can be updated remotely through the FTE network using Honeywell’s standard firmware upgrade utility, eliminating the need for physical access to the I/O chassis during software maintenance windows.

Quality Assurance & Global Logistics

Every 8C-PAON01 unit dispatched from our Xiamen facility is sourced exclusively from verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical authenticity verification includes label examination under UV light, PCB revision marking cross-reference against Honeywell’s published revision history, and connector pin inspection for evidence of prior field installation. Units showing signs of undisclosed prior use are segregated and listed separately with full condition disclosure.

Functional verification is performed on a dedicated Series C I/O test chassis. Each of the eight output channels is exercised across the full 4–20 mA range in 1 mA increments, with measured output current logged against the commanded value. Channel accuracy is verified against the ±0.1% full-scale specification. HART communication is confirmed on all channels using a calibrated HART communicator. Units that fail any test parameter are quarantined and not offered for sale.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: Southeast Asia 2–4 business days via DHL Express; Middle East 3–5 business days; Europe 4–6 business days via FedEx International Priority; North America 5–7 business days via UPS Worldwide Expedited. All shipments include a commercial invoice, packing list, certificate of origin, and a copy of the pre-shipment test report. Export classification and customs documentation are prepared in compliance with Chinese export regulations and destination-country import requirements. Bulk orders of five or more units qualify for volume pricing and dedicated logistics coordination.
