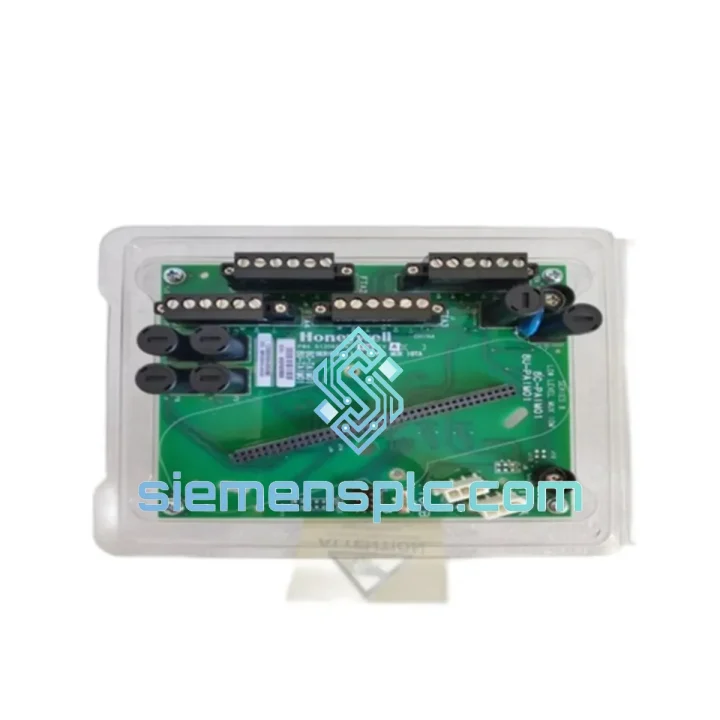

Honeywell 8C-TAIM01 51306999-175 Analog Input Module – Experion PKS C300

Honeywell 8C-TAIM01 51306999-175 — 8-Channel Analog Input Module in the Experion PKS C300 Control Architecture

The Honeywell 8C-TAIM01 (catalog order number 51306999-175) is a dedicated analog input module engineered for the Experion PKS C300 Distributed Control System. Within the C300 I/O subsystem, this module occupies a precisely defined role: it converts field-level 4–20 mA process signals — with embedded HART digital overlay — into 16-bit digital representations that the C300 controller processes across its high-speed Series C I/O Link backplane. The module supports eight independent input channels, each with individual channel-to-channel and channel-to-bus galvanic isolation, enabling simultaneous acquisition of eight process variables without cross-channel interference or ground loop contamination.

In a typical C300 control loop, the 8C-TAIM01 sits between the field transmitter and the C300 controller’s control execution environment (CEE). The module’s internal A/D conversion pipeline samples each channel at a rate consistent with the C300 I/O Link scan cycle, delivering deterministic latency from field signal to controller PV register. This determinism is not incidental — it is a structural property of the Series C I/O Link protocol, which uses a time-division multiplexed communication frame to guarantee bounded scan times regardless of I/O load. For process control engineers managing tight loop tuning requirements in applications such as distillation column temperature profiling or reactor pressure cascade control, this bounded latency is a measurable engineering parameter, not a marketing claim.

The HART pass-through capability of the 8C-TAIM01 deserves specific attention. The module does not merely tolerate the HART FSK signal superimposed on the 4–20 mA loop — it actively routes HART communication frames to the Experion PKS HART Multiplexer infrastructure, enabling the Asset Manager application to poll connected smart field devices for device status, calibration data, and diagnostic variables. This architecture eliminates the need for a separate HART modem infrastructure at the field junction box level, reducing panel wiring complexity and enabling continuous device health monitoring without interrupting the primary analog measurement path.

The module mounts into the Series C I/O Link Interface Module (IOLIM) rack — either the 8C-IOLIM01 or 8C-IOLIM02 — which provides the physical backplane connection to the C300 controller via the Series C I/O Link cable. The IOLIM rack supports hot-swap insertion and removal of I/O modules while the system remains in service, provided the controller configuration has been appropriately prepared. This capability is operationally significant in continuous-process industries where planned shutdowns carry substantial production cost penalties.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal architecture of the 8C-TAIM01 reflects design decisions made at the hardware logic level that directly affect measurement fidelity and system reliability in industrial environments.

Galvanic Isolation Architecture: Each of the eight input channels is isolated from adjacent channels and from the module’s backplane communication bus using optocoupler-based galvanic isolation barriers. This two-tier isolation topology — channel-to-channel and channel-to-bus — prevents ground potential differences between field instruments from propagating into the digital measurement domain. In installations where field transmitters are distributed across multiple process areas with independent earthing systems, this isolation architecture is not optional; it is the primary defense against common-mode noise injection that would otherwise degrade 16-bit measurement resolution to an effective 12–13 bits.

EMC Design Considerations: The module’s PCB layout follows Honeywell’s internal EMC design rules for industrial process control hardware, including controlled impedance traces on the analog front-end, ground plane segmentation between analog and digital domains, and transient suppression components at the field terminal interface. These measures allow the module to maintain specified accuracy in environments with conducted and radiated interference levels consistent with IEC 61000-4 test standards applicable to industrial process control equipment.

HART Signal Conditioning: The HART FSK signal (1200 Hz / 2200 Hz) is superimposed on the 4–20 mA DC loop at a peak-to-peak amplitude of approximately 0.5 mA. The 8C-TAIM01’s analog front-end separates the DC component (the primary process variable) from the AC HART overlay using passive filtering, ensuring that HART communication activity does not introduce measurable perturbation into the 16-bit A/D conversion result. The extracted HART signal is then routed through the module’s internal HART modem logic to the IOLIM backplane’s HART communication channel.

Scan Cycle Determinism: The Series C I/O Link protocol operates on a fixed-period communication frame. The 8C-TAIM01 presents its eight channel values to the IOLIM backplane at each frame boundary, and the IOLIM forwards these values to the C300 controller’s CEE at the next available I/O scan slot. The resulting end-to-end latency from field signal change to controller PV register update is bounded and predictable — a property that allows control engineers to include I/O latency as a known, fixed term in loop tuning calculations rather than treating it as a stochastic variable.

System Integration Benefits

• Deterministic I/O scan latency — The Series C I/O Link fixed-frame protocol delivers bounded PV update times, enabling precise loop tuning for fast-response control applications such as pressure and flow control.
• Continuous HART device diagnostics — HART pass-through to Experion Asset Manager enables background polling of connected smart transmitters for device health, calibration status, and process alerts without interrupting the primary 4–20 mA measurement.
• Reduced field wiring infrastructure — Integrated HART modem logic eliminates the need for external HART multiplexers at the field junction box, reducing panel component count and associated wiring labor.
• Hot-swap field replacement — Modules can be removed and reinserted under power, reducing the mean time to repair (MTTR) for I/O module failures in continuous-process environments where unplanned shutdowns are operationally costly.
• Redundancy-compatible architecture — The 8C-TAIM01 is compatible with C300 redundant I/O configurations, supporting fault-tolerant system designs where single-module failure must not result in loss of process measurement.
• 16-bit measurement resolution — 65,536 discrete count levels across the 4–20 mA span provide measurement granularity of approximately 0.0015% of span per count, supporting high-precision process variable monitoring in applications such as analytical instrumentation and custody transfer metering.
• Seamless Experion PKS integration — Module configuration, channel scaling, alarm limits, and HART device parameters are all managed within Experion Control Builder, eliminating the need for separate configuration tools and maintaining a single engineering database for the entire control system.
• Broad field device compatibility — The 4–20 mA / HART interface is compatible with the full range of HART-enabled smart transmitters from manufacturers including Emerson Rosemount, Endress+Hauser, Yokogawa, ABB, and Vega, providing procurement flexibility without hardware modification.

Quality Assurance & Global Logistics

Every Honeywell 8C-TAIM01 51306999-175 unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Physical authenticity verification covers label integrity, PCB marking consistency, housing condition, and connector pin alignment against Honeywell OEM reference standards. Functional verification confirms module power-up behavior and communication response on the Series C I/O Link interface prior to packaging.

Units are packaged in anti-static ESD shielding bags, placed in foam-lined rigid cartons, and sealed with tamper-evident tape. Each shipment includes a packing list, commercial invoice, and certificate of origin. Export documentation for customs clearance — including HS code classification guidance — is prepared as standard for all international orders.

Logistics operations are based in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Typical international transit times range from 3 to 5 business days to major industrial hubs in Southeast Asia, the Middle East, Europe, and North America. Sea freight consolidation is available for large-volume MRO orders. All shipped units carry a 12-month warranty from the date of dispatch, covering functional failure under normal operating conditions.
