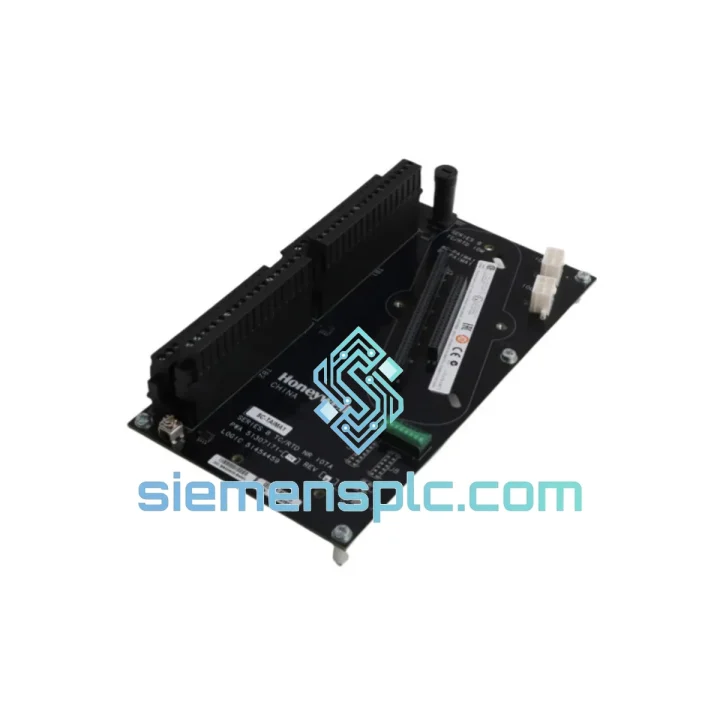

Honeywell 8C-TAIMA1 51307171-175 DCS I/O Termination Assembly – Experion PKS C300

Honeywell 8C-TAIMA1 51307171-175 — 8-Channel Low-Level Analog Input Termination Assembly for Experion PKS C300 Distributed Control Systems

The Honeywell 8C-TAIMA1, order reference 51307171-175, is a passive I/O Termination Assembly (IOTA) purpose-built for low-level analog signal acquisition within the Experion PKS C300 distributed control architecture. Its position in the control loop is structurally fixed: it forms the physical and electrical boundary between field-mounted sensors — thermocouples of all standard types, two- and three-wire RTDs, and millivolt-range transmitters — and the active measurement electronics housed in the companion Low-Level Analog Input Field Interface Module (LLAI FIM, part number 8C-PAIMA1 / 51304362-175).

The functional significance of this boundary cannot be understated. Low-level analog signals from thermocouples routinely fall in the range of 0 mV to 70 mV across the full temperature span, with resolution requirements at the microvolt level for high-accuracy process control. Any impedance mismatch, ground loop, or contact resistance variation introduced at the termination point propagates directly into the measurement chain as an uncorrectable offset or noise floor elevation. The 8C-TAIMA1 is engineered to prevent exactly these failure modes through its PCB layout discipline, terminal block metallurgy, and shielding architecture.

Deployment environments for this IOTA span the full breadth of continuous-process industry: crude distillation units and hydrotreaters in petroleum refining, reactor temperature monitoring in specialty chemical production, steam turbine inlet and exhaust measurement in power generation, autoclave and sterilizer control in pharmaceutical manufacturing, and kiln temperature profiling in cement and ceramics production. In each of these contexts, the 8C-TAIMA1 is not a field-replaceable commodity — it is a calibrated component of a validated measurement system.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 8C-TAIMA1 is a passive termination assembly — it contains no active amplification, filtering, or analog-to-digital conversion circuitry. This architectural choice is deliberate. Honeywell centralizes all signal conditioning functions — cold junction compensation, RTD linearization, A/D conversion, and per-channel diagnostics — within the LLAI FIM electronics. The IOTA’s sole mandate is to deliver the raw field signal to the FIM connector with the minimum possible distortion, noise addition, and impedance perturbation.

Achieving this mandate at the microvolt signal level requires disciplined PCB design. The 8C-TAIMA1 routes each of its 8 input channels as a geometrically matched differential pair from the terminal block to the FIM mating connector. Matched trace length and consistent inter-pair spacing maintain uniform common-mode rejection across all channels, which is the primary mechanism for suppressing 50/60 Hz interference induced by parallel power wiring in industrial cabinets. In environments with variable-frequency drives operating at switching frequencies of 2–16 kHz, this layout discipline also attenuates higher-order harmonic content that would otherwise appear as measurement noise on thermocouple channels.

The screw-clamp terminal block uses tin-plated copper alloy contacts with a spring-loaded clamp geometry. This contact design maintains a stable, gas-tight interface across the thermal cycling range of the cabinet (typically −10 °C to +55 °C ambient), preventing the fretting corrosion and contact resistance drift that can introduce systematic offset errors in thermocouple measurements. For a Type K thermocouple with a Seebeck coefficient of approximately 41 µV/°C, a contact resistance variation of just 1 Ω in a 100 Ω source circuit introduces a measurable offset — the terminal block metallurgy is selected to keep this variation below the FIM’s measurement resolution threshold over the module’s service life.

Shield termination architecture on the 8C-TAIMA1 follows IEC 61000-5-2 single-point grounding practice. Each channel pair has a dedicated drain wire terminal that connects the cable shield to the IOTA chassis ground at one point only. This prevents shield current loops — a common source of 50/60 Hz interference injection — while still providing the electrostatic shielding function of the cable screen. The chassis ground reference is bonded to the C300 cabinet earth bar, completing the EMC ground hierarchy from field cable to cabinet earth.

Transient protection at the terminal block inputs clamps electrostatic discharge events (per IEC 61000-4-2, up to 4 kV contact discharge) that occur when field cables are connected or disconnected during live maintenance. The clamping devices are selected to present negligible impedance at signal frequencies while providing a low-impedance path to ground for transient energy, protecting the FIM input circuitry from damage without affecting measurement accuracy during normal operation.

The keyed FIM interface connector enforces correct module orientation and provides a gas-tight electrical connection at the IOTA-to-FIM boundary. Gas-tight contact specification is critical at this interface because the FIM’s input amplifier presents a very high input impedance — any contact resistance at the connector introduces a voltage divider error directly in the signal path. The keying feature also prevents incorrect FIM insertion during cabinet maintenance, eliminating a failure mode that could result in measurement errors or module damage in live systems.

System Integration Benefits

• Direct field wiring without intermediate conditioning: Thermocouple extension cable and RTD leads connect directly to the 8C-TAIMA1 terminal block. No intermediate junction boxes, signal isolators, or transmitter heads are required, eliminating additional cold junction error sources and reducing the total component count in the measurement loop.
• Deterministic 1:1 channel-to-tag mapping: Each of the 8 IOTA channels maps directly to a defined tag address in the Experion PKS configuration database. No software channel remapping is required at commissioning, reducing configuration time and eliminating a class of wiring-to-database mismatch errors that are difficult to detect during loop checks.
• Live maintenance without process interruption: The C300 architecture supports IOTA and FIM replacement under energized system conditions, subject to site management-of-change procedures. This capability is operationally significant in continuous-process plants where scheduled shutdowns occur infrequently and unplanned downtime carries substantial production cost.
• Validated cold junction compensation integration: The FIM’s cold junction compensation algorithm accounts for the thermal mass and geometry of the 8C-TAIMA1 terminal block. Substituting a non-OEM termination assembly with different thermal characteristics introduces a systematic temperature measurement error that is not correctable through software calibration and may not be detectable during standard loop verification procedures.
• Structured per-channel diagnostics: The LLAI FIM continuously monitors each channel for open-circuit, short-circuit, and out-of-range conditions. Fault states are surfaced in the Experion PKS operator station as structured alarm messages with channel-level resolution, enabling maintenance personnel to localize faults to a specific field instrument without physical cabinet inspection or loop tracing.
• High-density termination reduces cabinet footprint: Eight channels per IOTA slot reduces the total cabinet count and associated wiring infrastructure compared to 4-channel or single-channel termination alternatives. In greenfield projects, this translates directly to reduced capital expenditure on cabinet enclosures, cable trays, and installation labor.
• Regulatory documentation simplification: Because the 8C-TAIMA1, LLAI FIM, and C300 controller are all Honeywell OEM components operating within a system-level validated architecture, the entire signal chain from sensor to process historian carries a single vendor’s accuracy specification and calibration traceability. This simplifies regulatory documentation for FDA 21 CFR Part 11 electronic records compliance and IEC 61511 functional safety lifecycle audits.
• Long-horizon spare parts alignment: Honeywell’s Experion PKS C300 platform carries an extended product support commitment aligned with 15–20 year plant lifecycle horizons. Maintaining 8C-TAIMA1 IOTAs as critical spares protects against procurement risk from obsolescence-driven lead time spikes, which in the DCS components market can extend to 26–52 weeks for non-stocked items.
• Consistent measurement chain traceability: The passive architecture of the IOTA means that measurement accuracy is fully determined by the FIM electronics, which carry Honeywell’s published accuracy specifications. There are no IOTA-specific calibration requirements, simplifying the instrument calibration management program and reducing the total number of calibration records required for regulatory compliance.
