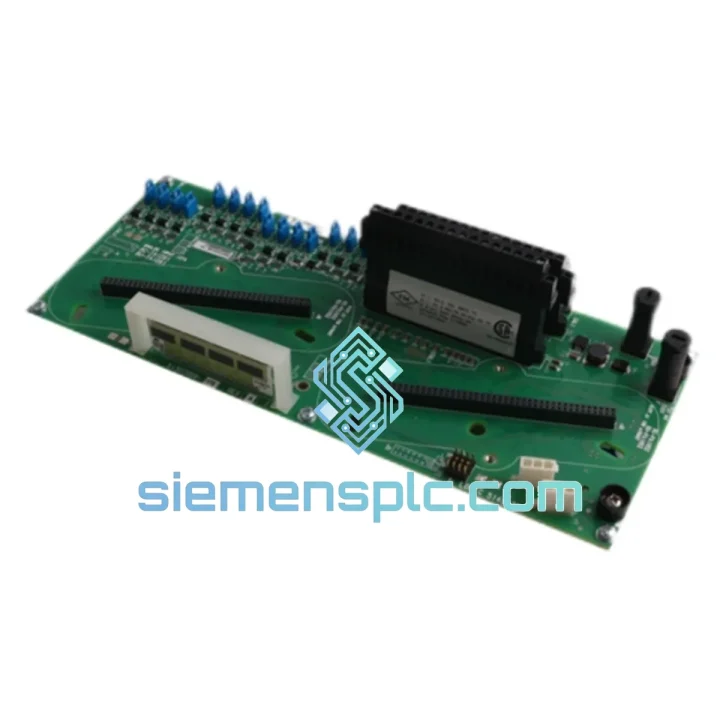

Honeywell 8C-TDIL11 51306858-175 Digital Input Module

8C-TDIL11 Down? Every Minute Costs You — Get Back Online Before the Next Shift

Your Experion PKS C300 system just threw a fault. The 8C-TDIL11 digital input board is dead, field signals are gone, and your operators are flying blind. You’ve already called your OEM — lead time is 8 weeks. That’s not an option when a refinery unit is down or a pharmaceutical batch is at risk. We stock the Honeywell 8C-TDIL11 (51306858-175) right now, tested and ready to ship from Xiamen within 24 hours. No waiting. No excuses. Just parts on a plane.

The 8C-TDIL11 is not a peripheral component — it is the nerve ending of your C300 I/O subsystem. When it fails, you lose discrete field signal visibility: valve positions, motor run/stop status, interlock feedback, safety system inputs. In a live process environment, that means operators making decisions without data, which is exactly how incidents happen. We’ve seen it. We’ve fixed it. We ship the part.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 8C-TDIL11:

• Fault Code IOLINK-0x04 / Module Not Responding: The C300 controller loses communication with the DI board entirely. First check the I/O Link cable seating and backplane connector pins before condemning the module. If reseating does not clear it within two scan cycles, the board is the culprit.
• All channels reading FALSE simultaneously: Not a field wiring issue — this is the board’s internal logic failing to latch input states. Swap the module first, then verify field wiring continuity.
• Intermittent channel dropouts on specific inputs: Often caused by optical coupler degradation on high-cycle inputs such as pump run/stop feedback that toggles hundreds of times per day. The affected channel will show erratic behavior before full failure.
• Module LED solid amber, no green heartbeat: Internal self-test failure. The board has detected a hardware fault during its own diagnostic cycle. Do not attempt to reset — replace immediately.

Step-by-step hot-swap replacement procedure:

1. Confirm the replacement 8C-TDIL11 firmware revision matches or exceeds the failed unit. Check the label on the board edge — revision is printed as Rev X.X. Mismatched firmware between the board and the C300 controller can cause the new module to fail its initialization handshake.
2. In Experion Station, navigate to the affected I/O module in the Control Builder hardware tree. Place the module in Out of Service state before physical removal — this suppresses alarm floods during the swap and prevents false safety trips.
3. Discharge any static by touching the cabinet frame before handling the board. The 8C-TDIL11 uses CMOS-based input circuitry that is sensitive to ESD damage, which may not manifest immediately but will cause premature failure in the field.
4. Extract the failed module by releasing the two locking tabs simultaneously. Do not rock the module side-to-side — the backplane connector is a 96-pin DIN type and bent pins will take the chassis offline, not just the module.
5. Seat the replacement module firmly until both locking tabs click. Partial seating is the number-one cause of new module, same fault callbacks.
6. Return the module to In Service in Control Builder. The C300 will perform an automatic self-addressing sequence — the module does not require manual address configuration via DIP switches, unlike older Honeywell TDC 3000 I/O. Wait for the green heartbeat LED before declaring the swap complete.
7. Verify all input channels in the Experion operator display. Cross-check against field device status — a valve that is physically open should read TRUE on its corresponding DI channel. If any channel reads incorrectly, check the FTA wiring before suspecting the new board.

Configuration note: The 8C-TDIL11 uses automatic slot addressing via the C300 I/O Link — there are no DIP switches or jumpers to set on this module. If you are migrating from a TDC 3000 or older Plantscape system, do not apply legacy addressing procedures. The C300 architecture handles this in firmware automatically.

Reliability in Harsh Conditions

The 8C-TDIL11 was not designed for a climate-controlled server room. It was built for the realities of industrial process environments — and those realities are brutal. Honeywell’s C300 I/O platform is deployed on offshore platforms in the North Sea, in refineries where ambient temperatures exceed 50°C, and in chemical plants where corrosive atmospheres attack unprotected electronics within months.

The board’s optical isolation architecture physically separates field-side wiring from the controller-side logic. This means a ground fault or voltage spike on a field cable — the kind that happens when a contractor accidentally energizes the wrong terminal — does not propagate into the C300 controller backplane. The board absorbs the hit. That is by design.

Vibration is the silent killer of I/O modules in rotating equipment environments. Compressor stations, pump skids, and turbine halls generate continuous mechanical vibration that fatigues solder joints over years of operation. The 8C-TDIL11’s conformal-coated PCB and reinforced connector design address this directly. Boards pulled from 15-year-old installations in compressor stations often show no degradation in functional testing — that is the engineering margin Honeywell built in.

Humidity and condensation are equally destructive. The conformal coating on the 8C-TDIL11 provides a moisture barrier that prevents the dendritic growth and leakage currents that kill unprotected boards in coastal or high-humidity environments. If your plant is in a tropical climate or near a cooling tower, this matters more than any spec sheet parameter.

Every unit we ship has been stored in climate-controlled conditions with ESD protection from the moment it left the original supply chain. Our inventory is traceable, documented, and handled with the same care you would expect from a plant maintenance team that has to sign off on the work order.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international cargo hub with direct DHL and FedEx express lanes to every major industrial region on the planet. When you place an urgent order, here is exactly what happens:

• Hour 0–2: Order confirmed, payment cleared. Our warehouse team pulls the 8C-TDIL11 from climate-controlled storage, performs a final visual and functional check, and begins ESD-safe packaging.
• Hour 2–6: Module is double-boxed with anti-static foam, moisture barrier bag, and desiccant pack. Commercial invoice, packing list, and HS code documentation are prepared for customs clearance.
• Hour 6–24: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued immediately. Xiamen to Southeast Asia: 1–2 business days. Europe and Middle East: 2–4 business days. Americas: 3–5 business days.
• Customs clearance: We prepare complete export documentation including manufacturer certificates of origin where available. For destinations with import duty concerns, we can provide detailed commodity descriptions to support your customs broker.
• Delivery confirmation: We monitor shipment status and proactively notify you of any customs holds or delays. If a shipment is held, we engage the carrier’s customs brokerage team directly — you should not have to chase this yourself when your plant is down.

Emergency same-day dispatch is available for orders confirmed before 14:00 CST. Contact us directly via WhatsApp for expedited handling.
