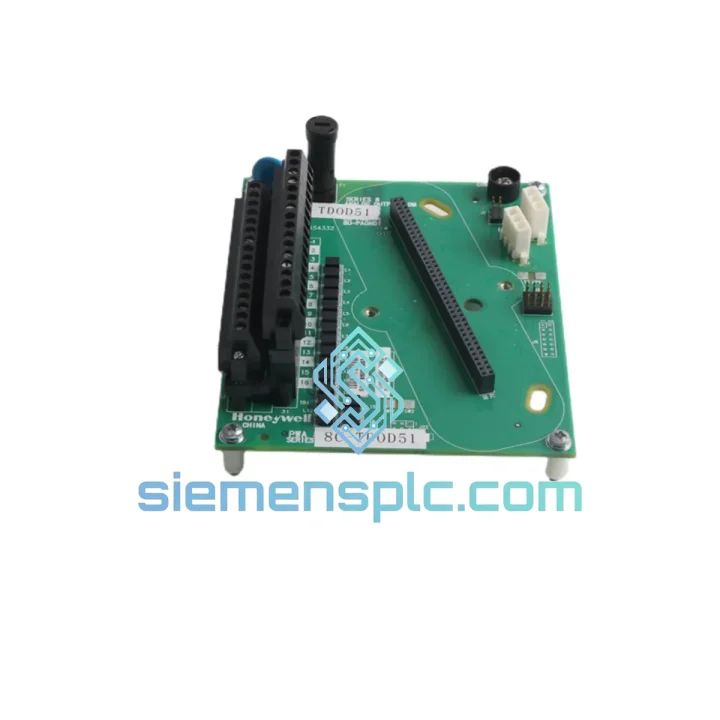

Honeywell 8C-TDOD51 Digital Output Module

Honeywell 8C-TDOD51: Stop the Bleeding — Get Your Line Back Online Today

Every minute your C300 controller sits with a failed digital output module, you’re burning money. Unplanned downtime in process industries averages $260,000 per hour — and a single faulty DO module is all it takes to trigger a full unit shutdown. The Honeywell 8C-TDOD51 is a factory-original, 8-channel solid-state digital output module built for the Experion PKS platform. We stock it. We ship it fast. That’s the only thing that matters when your plant is down.

We’ve pulled this module off the shelf for refineries in the Middle East, chemical plants in Southeast Asia, and power stations in Europe — all on emergency timelines. When your maintenance team is standing by and your production manager is calling every 20 minutes, you don’t need a catalog. You need a confirmed ship date.

📦 URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an 8C-TDOD51 in a live Experion PKS environment isn’t complicated — but skip one step and you’ll be back on the phone with your DCS vendor at 2 AM. Here’s what 10 years of field work has taught us:

Common Failure Signatures:

• Fault LED solid red on module face: Usually indicates a blown output transistor on one or more channels. Check Experion Station for channel-level fault codes — look for DO_FAULT or CHAN_FAIL alarms. Don’t assume the whole module is dead; isolate the channel first.
• Intermittent output chatter: Often caused by a failing 24 VDC field power supply rather than the module itself. Measure field power at the IOTA terminals before condemning the 8C-TDOD51.
• Module not recognized after insertion: 99% of the time this is a backplane slot assignment conflict. The C300 platform uses auto-addressing — if you’re hot-swapping into a slot that previously held a different module type, the controller may retain the old slot configuration. Force a slot rescan from Experion Station or perform a cold restart of the C300 controller.
• All channels fail simultaneously: Check the IOTA fuse first. The 8-channel DO IOTA has a field power fuse that protects all output channels. A blown fuse kills all 8 outputs and looks exactly like a dead module.

Replacement Procedure (Field-Tested):

• Confirm the replacement module firmware revision matches or exceeds the installed base — check the label on the module edge. Experion PKS R400+ is required; R500 compatibility should be verified against Honeywell release notes.
• The 8C-TDOD51 supports hot-swap on C300 platforms. You do not need to power down the controller — but you must place the affected channels in manual mode at Experion Station before pulling the module.
• Seat the module firmly until the locking tab clicks. A partially seated module will power up but fail to communicate on the backplane — a common cause of “module not found” errors post-swap.
• After insertion, allow 30–60 seconds for the module to complete self-diagnostics and re-establish backplane communication. Do not force a controller restart during this window.
• Verify all 8 channel LEDs cycle green during the POST sequence. Any channel that stays amber after POST has a wiring or field device fault — not a module fault.

Reliability in Harsh Conditions

The 8C-TDOD51 wasn’t designed for a climate-controlled server room. It was built for the kind of environments where your instrumentation cabinet sits 15 meters from a furnace, where humidity spikes every time a cooling tower cycles, and where the floor vibrates from compressors running 24/7.

Honeywell’s C300 I/O modules undergo rigorous environmental qualification testing that mirrors real-world process plant conditions. The 8C-TDOD51 is rated for continuous operation from 0°C to 60°C ambient — covering the thermal range of most indoor industrial enclosures even in tropical climates. The solid-state transistor output design eliminates the mechanical wear points that kill relay-based DO modules in high-cycle applications. No contacts to arc, no coils to burn out.

Vibration resistance is validated to IEC 60068-2-6 standards, making the module suitable for installation near rotating machinery, compressors, and pump skids where structural vibration is a constant. The channel-to-backplane isolation architecture means a field-side wiring fault — a short, a ground loop, or a transient spike from a solenoid valve — cannot propagate back into the controller backplane. Your C300 stays healthy even when the field wiring doesn’t.

Conformal coating on the PCB provides additional protection against condensation and airborne contaminants — a critical feature in coastal facilities, offshore platforms, and plants where chemical vapors are present. This is not a module you’ll be replacing every two years. Properly installed, the 8C-TDOD51 runs for a decade without intervention.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL, FedEx, and UPS international express networks. For emergency orders, here’s exactly what happens after you confirm:

• Order confirmed before 14:00 CST: Same-day dispatch. Your tracking number is in your inbox before end of business.
• DHL Express Worldwide: Xiamen to most major industrial hubs — Rotterdam, Houston, Singapore, Dubai — in 2–4 business days. Door-to-door, customs-cleared.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL.
• Commercial invoice and packing list: Prepared to your specifications. HS code 8537.10 (programmable controllers / I/O modules) is pre-assigned for smooth customs clearance.
• Export compliance: All shipments processed under applicable Chinese export regulations. End-user declarations available upon request for dual-use screening.
• Insurance: Full declared-value cargo insurance included on all express shipments. If it doesn’t arrive intact, we make it right.

We’ve shipped to 60+ countries. We know which customs brokers to use in Brazil, which documentation format German customs requires, and how to route around the delays that kill standard freight. When your plant is down, logistics is not where you want surprises.
