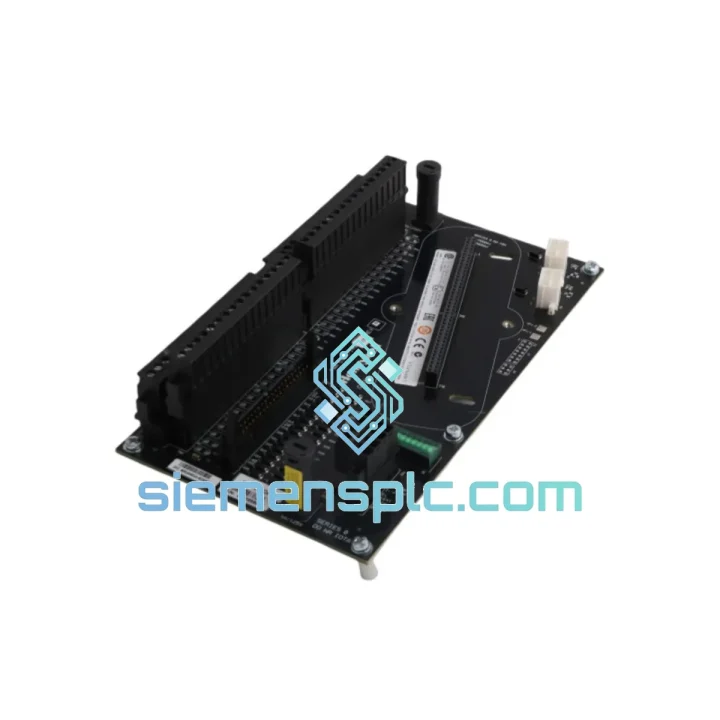

Honeywell 8C-TDODA1 51307149-175 Digital Output Module – Experion PKS

Honeywell 8C-TDODA1 51307149-175 – 8-Channel Digital Output Module for Experion PKS Distributed Control Architecture

The Honeywell 8C-TDODA1 (P/N: 51307149-175) is an 8-channel solid-state digital output module engineered for deployment within the Experion PKS (Process Knowledge System) distributed control platform. It operates as a field-side execution node within the C300 Controller I/O subsystem, translating controller-issued discrete commands into galvanically isolated, solid-state switching signals directed at field actuators, solenoid valves, motor starters, and relay coils. Its role in the control loop is deterministic: it receives output data frames from the C300 Controller over the EUCN (Experion Universal Control Network) backplane, executes the switching state within a defined scan cycle, and returns channel-level diagnostic status upstream — all without interrupting adjacent channel operation.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 8C-TDODA1 implements a layered hardware architecture that separates the backplane logic domain from the field switching domain at three distinct boundaries.

Optical Isolation Stage: Each of the eight output channels passes through a dedicated optocoupler. The LED side of the coupler is driven by the module’s internal ASIC, which receives decoded output state data from the EUCN backplane frame. The phototransistor side drives the gate of a solid-state relay element. This arrangement ensures that no conductive path exists between the 3.3 V logic rail and the 24 V DC field bus — a critical requirement in environments where field wiring may carry transient voltages from inductive load switching (solenoid valves, motor contactors).

EMC Design: The module’s PCB layout routes field-side traces on a physically separated copper layer with a ground plane interposed between logic and field layers. Transient suppression diodes (TVS) are placed at each channel output terminal to clamp voltage spikes to within the SSR’s rated breakdown threshold. The module housing is a conductive die-cast enclosure bonded to the IOTA chassis ground, providing a Faraday shield against radiated interference. Compliance with IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge, 1 kV line-to-line) is achieved without external filtering components.

Backplane Communication Logic: The module’s internal microcontroller decodes EUCN data frames at the configured scan rate, latches the 8-bit output state register, and drives the optocoupler array accordingly. Simultaneously, it samples the channel feedback lines — each SSR output is monitored for load current continuity — and assembles a diagnostic status word that is returned to the C300 Controller in the next upstream frame. This closed-loop feedback mechanism allows the controller to detect open-load faults (broken field wiring or de-energized actuator coil) within one scan cycle, without requiring external field instruments.

Hot-Swap Arbitration: The IOTA backplane implements a sequenced power-up protocol. When the 8C-TDODA1 is inserted into a live IOTA slot, the backplane first asserts a module-present signal, then delays field-side power application by approximately 50 ms while the module’s internal firmware completes its self-test routine. Only after a valid self-test completion code is returned does the backplane release the output enable line. This prevents spurious output pulses during module insertion — a non-negotiable requirement in process plants where a false output could open a safety valve or trip a motor.

System Integration Benefits

• Deterministic scan-cycle execution: Output state updates are synchronized to the C300 Controller’s configured scan period (typically 100 ms to 500 ms), ensuring that field actuator response timing is predictable and auditable in the historian.
• Per-channel diagnostic transparency: Open-load and short-circuit faults are reported as discrete alarm tags in Experion PKS, enabling maintenance teams to isolate a single failed field device without walking the panel.
• Zero-downtime module replacement: Hot-swap capability allows a faulty module to be replaced during live plant operation, eliminating the need for a controlled shutdown of the associated control loop.
• Galvanic isolation eliminates ground loops: The 1,500 V AC isolation barrier between field and backplane prevents ground-loop currents from corrupting analog reference signals on adjacent I/O modules in the same chassis.
• Reduced field wiring complexity: The IOTA termination assembly consolidates all 8-channel field wiring into a single marshalling point, reducing the number of individual terminal blocks and associated wiring labor by comparison with discrete relay output panels.
• Seamless Experion PKS software integration: The module is natively recognized by Experion PKS R400 through R500 software. No custom driver or function block is required; channel tags are auto-populated in the Control Builder engineering environment upon module insertion.
• Redundancy-ready architecture: When paired with a redundant C300 Controller pair, the 8C-TDODA1 participates in bumpless transfer — the standby controller maintains a synchronized output state image, and switchover occurs without a detectable output pulse to the field.
• Compliance with IEC 61511 functional safety requirements: The module’s diagnostic coverage and fault detection latency are documented in Honeywell’s Safety Manual for Experion PKS, supporting SIL 1 and SIL 2 loop assessments when used within a validated safety instrumented system architecture.

Quality Assurance & Global Logistics

Every Honeywell 8C-TDODA1 51307149-175 unit dispatched from our Xiamen, China facility is a factory-original component procured through verified supply channels. We do not source from grey-market brokers or unverified surplus pools. Each unit undergoes a structured pre-shipment inspection: physical integrity check of housing, connector pins, and OEM label markings; firmware revision verification against Honeywell’s published revision matrix; and a powered bench test confirming backplane communication handshake and channel output response.

Units are packaged in anti-static ESD bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A quality inspection record and traceability document accompany every shipment. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements.

Shipping options from Xiamen, China:

• Express Air (DHL / FedEx / UPS): 3–7 business days to North America, Europe, Middle East, and Southeast Asia
• Economy Air: 7–14 business days for cost-sensitive shipments
• Sea Freight: Available for bulk orders of 10+ units
• HS Code guidance and customs documentation provided for all destinations

All units carry a 12-month warranty from the date of shipment. Defective-on-arrival units are replaced or refunded within 5 business days of confirmed fault report. Extended service agreements are available for contract customers.
