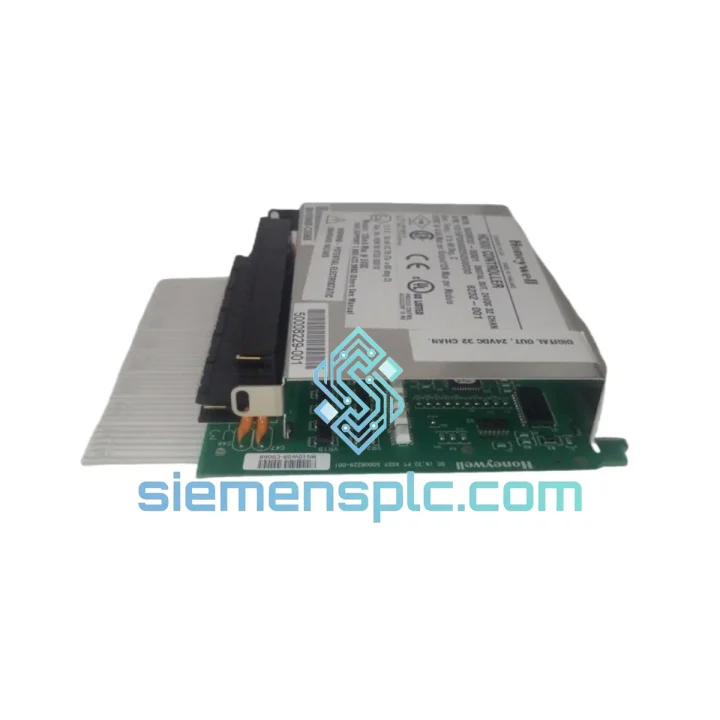

Honeywell 900H32-0001 Digital Output Module – HC900

Honeywell 900H32-0001 — 32-Channel Discrete Output Module for HC900 Hybrid Controller

The 900H32-0001 occupies a well-defined functional position within the Honeywell HC900 Hybrid Controller I/O subsystem: it serves as the primary high-density discrete output interface between the controller’s execution engine and field-level actuators. In continuous process plants — refineries, chemical reactors, power generation auxiliaries — the ability to command 32 independent binary outputs from a single rack slot directly reduces wiring infrastructure, cabinet footprint, and scan-cycle overhead. This module does not approximate that function; it is the OEM-specified component for that role.

Each output channel drives solenoid valves, motor starter coils, relay inputs, or alarm annunciators at 24 VDC field voltage. The module’s internal architecture separates the backplane logic domain from the field wiring domain through optical isolation, a design choice that carries measurable consequences for system reliability in electrically noisy plant environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 900H32-0001 implements a two-domain architecture that is fundamental to its reliability in industrial environments. The backplane domain operates at logic-level voltages and communicates with the HC900 controller CPU via the proprietary backplane bus at each controller scan cycle. The field domain operates at 24 VDC and interfaces directly with actuator coils, relay inputs, and solenoid drivers — loads that generate inductive switching transients in the range of several hundred volts when de-energized.

The optical isolator barrier between these two domains provides galvanic separation, meaning no conductive path exists between field wiring and the backplane logic circuitry. This eliminates ground loop currents that would otherwise corrupt analog reference potentials elsewhere in the rack, and it prevents high-energy transients from propagating into the controller’s CPU or memory subsystems. In plants where multiple motor starters share a common field power bus, this isolation is not optional — it is the primary mechanism preventing cascade failures across the I/O rack.

The module’s output register is written synchronously with the HC900 controller scan cycle. This means output state transitions are deterministic: a change in the controller’s output image table propagates to the physical output terminal within one scan period, with no asynchronous buffering or queuing delay. For interlock logic — where a process deviation must trigger a valve closure within a defined response window — this determinism is a hard engineering requirement, not a performance preference.

EMC compliance is achieved through a combination of the optical isolation barrier, internal PCB ground plane design, and the shielded backplane connector interface. The module meets IEC 61000-4 series immunity requirements applicable to industrial process control equipment, covering electrostatic discharge (ESD), electrical fast transient (EFT) bursts, and conducted RF immunity. These are not marketing claims; they are measurable parameters verified during Honeywell’s product qualification testing.

System Integration Benefits

• Zero-configuration rack insertion: The HC900 controller auto-detects the 900H32-0001 upon power-up or hot-swap insertion. HC Designer software reads the module type from the backplane and populates the I/O configuration automatically, eliminating manual address assignment errors.
• Deterministic output latency: Output state updates are synchronous with the controller scan cycle. There is no asynchronous output queue, so interlock response time is bounded by the configured scan period — a measurable, documentable system parameter for safety reviews.
• High channel density reduces rack count: 32 outputs per slot versus 8- or 16-channel alternatives reduces the number of I/O racks required for large discrete output counts, directly lowering hardware cost, cabinet space, and backplane bus loading.
• Optical isolation protects system integrity: Field-side faults — short circuits, inductive transients, ground faults — are contained at the isolation barrier. The controller CPU and other I/O modules continue operating normally during a field-side fault on any output channel.
• Per-channel LED diagnostics accelerate fault isolation: Each output channel has a dedicated status LED visible from the front of the rack. Field technicians can identify a de-energized output without a laptop or SCADA terminal, reducing mean time to repair (MTTR) in time-critical process upsets.
• Hot-swap support minimizes planned downtime: In HC900 rack configurations that support I/O hot-swap, the 900H32-0001 can be replaced under power. The controller detects the new module, re-initializes the output register, and resumes normal scan within seconds — without a controller restart or process interruption.
• Native HC Designer integration: Module parameters, channel assignments, and diagnostic thresholds are configured entirely within HC Designer. No third-party configuration tool, gateway firmware, or protocol mapping is required, preserving a single-vendor configuration audit trail.
• Scalable I/O architecture: The HC900 platform supports multiple I/O racks connected to a single controller. Additional 900H32-0001 modules can be added to expand discrete output capacity without modifying existing rack wiring or controller logic, supporting phased plant expansions.

Quality Assurance & Global Logistics

Every 900H32-0001 unit supplied through siemensplc.com is sourced as genuine Honeywell OEM hardware. Units are procured through verified distribution channels or from decommissioned plant inventories with documented provenance. No remanufactured, relabeled, or third-party substitute components are stocked or shipped.

Pre-shipment inspection covers physical integrity (housing, connector pins, label legibility), part number and revision verification against the order specification, and ESD packaging integrity. Units are dispatched in anti-static bags with foam cushioning inside double-wall cartons rated for international air freight handling.

Shipments originate from Xiamen, China. Standard international express delivery via DHL, FedEx, or UPS reaches most destinations in Asia-Pacific within 2–4 business days, Europe within 3–5 business days, and North America within 4–6 business days. Sea freight consolidation is available for bulk orders. Export documentation — commercial invoice, packing list, certificate of origin — is prepared for each shipment. A 12-month warranty covers functional defects under normal operating conditions from the date of shipment.
