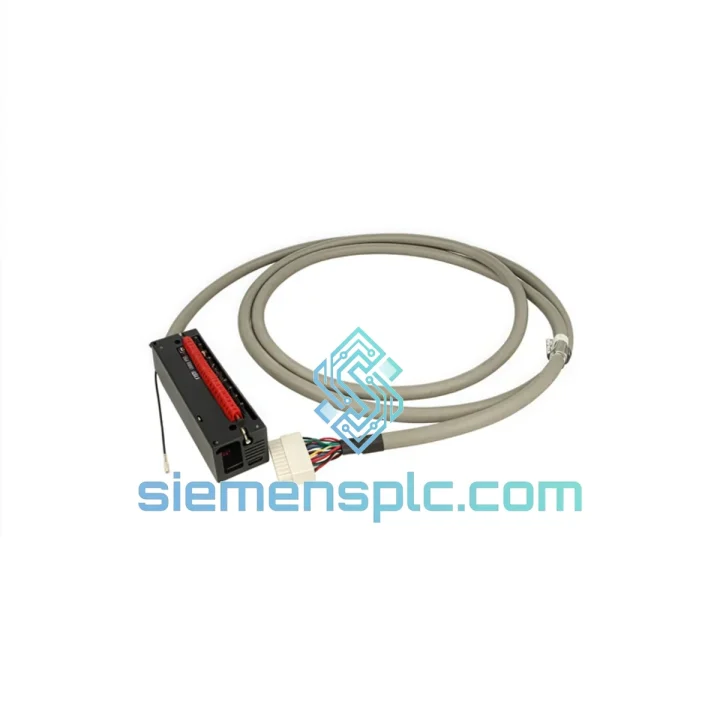

Honeywell 900RTC-BA50 RTP Cable

Honeywell 900RTC-BA50 — Stop the Bleeding: Every Hour of AO Loop Failure Costs You Real Money

Your C300 analog output loop is dead. The valve isn’t responding. The DCS alarm is screaming. You’ve already isolated the fault to the RTP cable — and now you need a replacement today, not in six weeks on a factory lead time. That’s exactly why we stock the Honeywell 900RTC-BA50 in Xiamen, verified, boxed, and ready to clear customs before your next shift change.

We’ve handled enough emergency callouts to know that a $200 cable can hold a $50,000-per-hour process hostage. Our job is to make sure that never happens twice on your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 900RTC-BA50:

• Experion PKS alarm: “AO Channel Fault” or “RTP Communication Loss” on one or more channels of a single 8-channel AO block — while adjacent blocks remain healthy. This asymmetric pattern almost always rules out the I/O module itself.
• 4–20 mA output reads 0 mA or pegged at 20 mA with no setpoint change — classic open-circuit or short-circuit symptom at the RTP connector.
• Intermittent loop faults that correlate with cabinet vibration or temperature swings — foil shield delamination or connector pin fretting inside the RTP plug.
• Continuity check passes on individual conductors but shield-to-drain resistance is high (>10 Ω) — degraded shielding causing EMI pickup on the 4–20 mA signal.

Step-by-step replacement procedure (field-verified):

1. Confirm safe state: Place affected AO channels in manual mode at the DCS workstation. Verify valve/actuator is in a safe fallback position before disconnecting anything.
2. Document before you touch: Photograph the existing cable routing, connector orientation, and any cable tie positions. The 900RTC-BA50 connectors are keyed but a reversed pull can damage the RTP panel latch.
3. Disconnect at the I/O module end first: Squeeze the latch tab and pull straight — never twist. Twisting is the single most common cause of pin damage on the Honeywell RTP connector body.
4. Disconnect at the RTP panel end: Same technique. Inspect the RTP panel socket for bent pins or carbon tracking before inserting the new cable.
5. Seat the new 900RTC-BA50: Push until you hear/feel the latch click on both ends. A partial seat will give you an intermittent fault that is extremely difficult to diagnose remotely.
6. No address switches or firmware matching required: The 900RTC-BA50 is a passive cable assembly — no DIP switches, no firmware, no self-addressing. The C300 controller does not need to be rebooted for a cable swap.
7. Loop check: Return AO channels to auto, command a known output (e.g., 50% = 12 mA), and verify at the field instrument with a clamp meter before releasing to operations.
8. Clear alarms: Acknowledge and clear the AO fault alarms in Experion Station. If the alarm re-triggers within 60 seconds, the fault is upstream (I/O module) or downstream (field wiring/instrument) — not the cable.

Configuration note: Unlike digital I/O modules, AO modules on the C300 platform do not require re-addressing after a cable replacement. The module-to-RTP relationship is fixed by physical slot position. No Experion Control Builder changes are needed for a like-for-like cable swap.

Reliability in Harsh Conditions

Honeywell engineered the 900RTC-BA50 for the realities of heavy-industry control rooms — not a clean-room lab. The foil-plus-drain shield construction maintains signal integrity in cabinets shared with variable-frequency drives, high-current motor starters, and RF-emitting wireless access points. In petrochemical and refining environments where cabinet temperatures routinely hit 50–55 °C during summer shutdowns, the cable’s rated 60 °C upper limit provides a genuine operating margin rather than a paper specification.

The factory-terminated connectors eliminate the field-crimped terminations that account for the majority of RTP cable failures we see on aging Experion PKS installations. Vibration-induced fretting corrosion on hand-crimped pins is a slow killer — it degrades contact resistance over months until a process upset finally pushes the loop into fault. The 900RTC-BA50’s molded connector bodies resist vibration-induced movement at the pin interface, which is why OEM cables consistently outlast field-fabricated alternatives by a factor of three to five in high-vibration compressor and turbine applications.

Every unit we ship has been inspected for connector latch integrity, shield continuity, and conductor-to-conductor isolation. We do not ship cables with cosmetic damage to connector bodies — a cracked latch is a future intermittent fault waiting to happen, and we’ve seen enough of those to have zero tolerance for it.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-efficient export hubs on the mainland, with direct DHL and FedEx gateway access. Here’s what the timeline looks like from the moment you confirm your order:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL/FedEx. AWB number sent to you within 4 hours of dispatch.
• DHL Express Worldwide: Xiamen → Singapore / Bangkok / Mumbai / Dubai: 2–3 business days. Xiamen → Rotterdam / Frankfurt / Houston: 3–4 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage (Australia, South America, parts of Africa).
• Export documentation: Commercial invoice, packing list, and HS code declaration prepared to your country’s import requirements. We handle EEI filing for US-bound shipments automatically.
• Emergency freight: For genuine production-down situations, contact us on WhatsApp and we will coordinate a same-day courier pickup outside standard cut-off times where carrier capacity allows.

We’ve shipped to refineries in Kazakhstan, power plants in Vietnam, pharmaceutical facilities in Ireland, and mining operations in Chile. The paperwork is never the bottleneck on our end.
