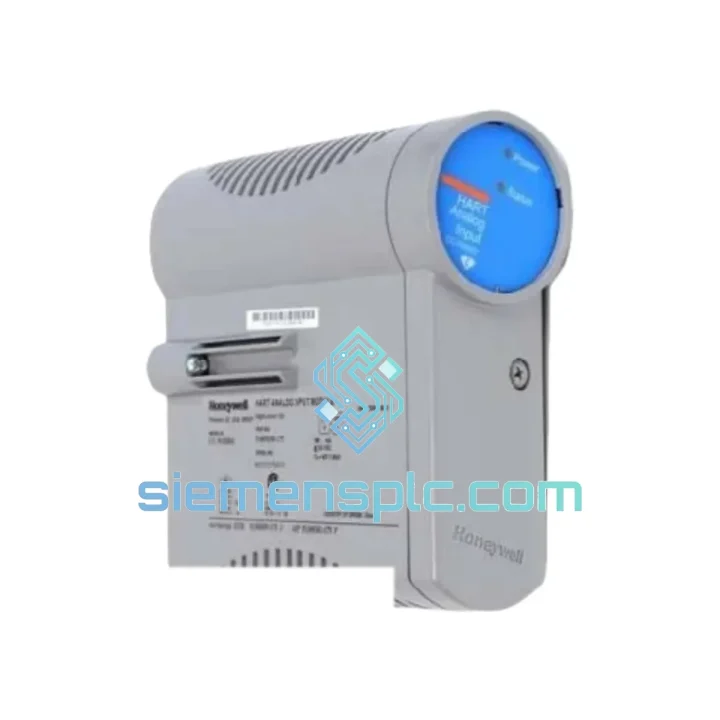

Honeywell CC-GDIL11 Digital Input Module

CC-GDIL11 Down? Every Minute Costs You — We Ship Same Day from Xiamen

Your C300 DCS just threw a fault. The CC-GDIL11 is dead. Thirty-two digital input channels gone dark, and your process is either limping on manual override or fully stopped. You’ve been here before — you know the clock is running. Engineering is calling. Management wants an ETA. The last thing you need is a supplier telling you “lead time is 8–12 weeks.”

We stock the Honeywell CC-GDIL11 in Xiamen, China. DHL Express to Europe is 2–3 business days. FedEx IP to North America is 3–5 days. We’ve shipped to refineries in Saudi Arabia, chemical plants in Germany, and power stations in Southeast Asia — all on emergency timelines. This is what we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most CC-GDIL11 failures fall into three buckets. Here’s how to diagnose fast and swap clean.

Fault Code 0x4001 — Module Not Responding: The C300 controller has lost communication with the DI module over the backplane. Before condemning the card, check the CIOM-A chassis slot contacts for corrosion or debris. Reseat the module firmly. If the fault persists after a cold restart of the C300, the module’s internal FPGA or communication ASIC has likely failed — replace the CC-GDIL11.

Fault Code 0x4010 — Channel Group Failure: One or more of the four 8-channel groups has an internal fault. This is almost always a hardware failure inside the module, not a field wiring issue. Isolate by checking the corresponding terminal board (CC-TBDI11) for shorts or ground faults first. If the terminal board checks out clean, the module is the culprit.

Fault Code 0x4020 — Power Supply Fault: The module’s internal 3.3V or 5V rail has collapsed. Often caused by sustained overvoltage on the 24VDC field supply or a failed bulk capacitor from thermal cycling. Check your field supply voltage — it must be within 18–30 VDC. If supply is clean, replace the module.

Replacement Procedure (field-tested):

• Step 1: In Experion PKS Station, navigate to the C300 controller and place the affected CIOM-A slot in Out of Service state. Do not hot-swap without this step — you risk a controller fault.
• Step 2: Disconnect the terminal board ribbon cable from the CC-GDIL11 before pulling the module. The ribbon is fragile at the connector housing.
• Step 3: Slide the CC-GDIL11 out of the CIOM-A slot. Note the slot address — the replacement module must go into the exact same slot position. The C300 uses slot-based addressing; there are no DIP switches or rotary encoders on this module. Address is assigned by physical slot.
• Step 4: Inspect the replacement CC-GDIL11 firmware label. Confirm the firmware revision is compatible with your Experion PKS release. R400 requires firmware ≥ 1.2; R500 requires firmware ≥ 2.0. Mismatched firmware will cause the module to stay in Faulted state after insertion.
• Step 5: Insert the new module, reconnect the terminal board cable, and bring the slot back In Service from the Experion Station. The module will auto-configure from the controller database — no manual channel configuration required.
• Step 6: Verify all 32 channels show correct state in the Experion display. Cross-check against your field device status. Commission complete.

Common Pitfall: Engineers sometimes order CC-GDIL01 as a substitute. The CC-GDIL01 is an earlier hardware revision. It is functionally compatible in most cases, but verify your Experion PKS firmware version supports it — some R500+ builds dropped backward compatibility with revision 01 hardware. When in doubt, specify CC-GDIL11.

Reliability in Harsh Conditions

The CC-GDIL11 was not designed for a climate-controlled server room. It was built for the realities of industrial process environments — and it shows in the design choices Honeywell made.

The module uses optical isolation on every channel group, which means field-side transients from inductive loads, relay coils, and solenoid valves cannot propagate back into the backplane logic. In petrochemical environments where field wiring runs hundreds of meters alongside high-voltage power cables, this isolation is the difference between a nuisance fault and a controller trip.

The conformal coating on the PCB provides protection against humidity and condensation — critical in coastal facilities, offshore platforms, and tropical climates where relative humidity regularly exceeds 90%. The module is rated for continuous operation at 60°C ambient, which covers the vast majority of control room and marshalling cabinet installations even without active cooling.

Vibration resistance meets IEC 60068-2-6 standards, qualifying the module for installation on skid-mounted equipment, compressor packages, and turbine control panels where mechanical vibration is a constant. The card-edge connector on the CIOM-A backplane uses a positive-locking mechanism that prevents the module from backing out under vibration — a failure mode we’ve seen on competing platforms.

EMC performance is certified to EN 61000-4 series, covering conducted and radiated immunity. In environments with large VFDs, arc furnaces, or high-power switching equipment nearby, the CC-GDIL11 maintains signal integrity without requiring additional shielding beyond standard cable practices.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of China’s primary export hubs with direct access to international freight lanes. Here’s exactly how your order moves:

• Order Confirmation: Once payment is confirmed, your order enters our pick-and-pack queue immediately. For orders placed before 15:00 CST, same-day dispatch is standard.
• Export Documentation: We prepare commercial invoice, packing list, and certificate of origin in-house. For customers requiring FORM E (ASEAN-China FTA) or EUR.1 certificates, advise at time of order — we can arrange within 24 hours.
• Carrier Selection: DHL Express is our primary carrier for Europe, Middle East, and Africa. FedEx International Priority for North America. For Southeast Asia, we use DHL or local express depending on destination country customs efficiency. TNT and UPS available on request.
• Transit Times (from Xiamen): Germany / Netherlands: 2–3 business days. UAE / Saudi Arabia: 2–3 business days. USA / Canada: 3–5 business days. Australia: 3–4 business days. India: 3–5 business days.
• Customs & Duties: We declare goods accurately as industrial automation components with correct HS code. We do not under-declare value. All documentation is prepared to minimize customs hold risk. For customers with DDP (Delivered Duty Paid) requirements, contact us — we can arrange for select destinations.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.

We’ve shipped to over 40 countries. If your destination has specific import requirements or you need a freight forwarder handoff, we’ve handled it before — just tell us.
