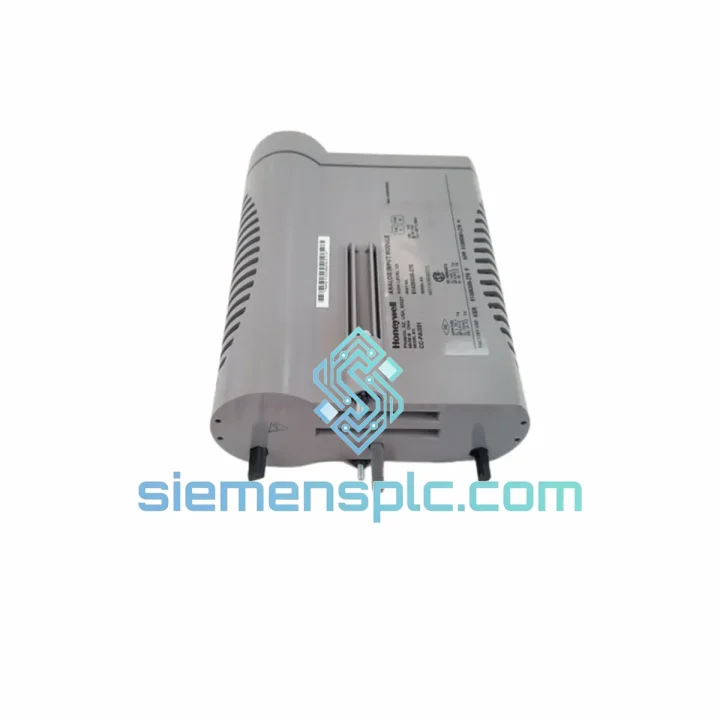

Honeywell CC-PAIX02 51405038-475 DCS Analog Input Module

CC-PAIX02 / 51405038-475 — Your C300 Is Down. Every Minute Costs Real Money. We Ship Today.

You’ve already done the diagnostics. The fault is confirmed: CC-PAIX02 in slot X, dead. The C300 I/O Link is in fault, the operator is watching a red screen, and production throughput is bleeding out by the hour. This is not the moment for a 6-week lead time from the OEM or a gamble on an untested surplus card. We carry verified Honeywell CC-PAIX02 / 51405038-475 units in Xiamen, inspected, firmware-documented, and ready to leave the warehouse the same day your PO clears. One call ends the downtime clock.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Experion PKS systems teach you that CC-PAIX02 failures cluster around four fault signatures. Know them before you pull the card:

IOLINK COMM FAIL — The module has dropped off the C300 I/O Link. Before ordering a replacement, reseat the card and inspect the chassis slot for bent backplane pins or oxidation on the gold-finger contacts. Corrosion from coastal or high-humidity environments is a common culprit. If the fault returns within minutes of reseating, the backplane interface on the module is gone — replace it.

AI CHANNEL BAD / OFFSPEC on multiple channels simultaneously — A single-channel fault usually points to field wiring or a failed transmitter. When three or more channels go bad at the same time with no corresponding field event, the ADC front-end has failed. Verify loop power supply voltage first (should be 24 VDC ±10%), then condemn the module if supply checks out.

MODULE NOT RECOGNIZED after hot-swap — Experion does not always auto-download configuration to a freshly inserted card. In Control Builder: right-click the C300 → I/O Link → select Force Download. Skipping this step leaves the module in an unconfigured state and generates spurious alarms that waste another hour of your time.

HART device invisible post-replacement — Two causes: (1) HART is not enabled on the channel in the I/O module configuration — check the channel properties in Control Builder. (2) The replacement unit carries firmware older than R210, which does not support HART 7. We disclose firmware revision before every shipment so you can verify compatibility before the card arrives.

Field-tested replacement sequence:

1. Place the affected C300 I/O Link into maintenance mode in Experion to suppress alarm floods during the swap.
2. Screenshot or export the channel configuration from Control Builder — signal type, range, HART enable state, scan rate. Three minutes now saves thirty minutes of re-entry after the swap.
3. De-energize field loop power for non-isolated devices. Isolated 4–20 mA loops can generally be left live for a hot-swap, but confirm with your site safety procedure.
4. Release the two captive face-plate screws on the CC-PAIX02. Extract straight out — lateral rocking damages the backplane connector.
5. Verify the replacement module’s part number label (CC-PAIX02 / 51405038-475) and firmware revision against your site’s qualified hardware list before seating.
6. Seat the replacement card firmly. Secure the face-plate screws finger-tight, then a quarter-turn with a screwdriver.
7. Execute Force Download from Control Builder. Confirm all channels return to GOOD status within two scan cycles (typically under 5 seconds).
8. Restore field loop power. Verify PV readings against field instrumentation. Confirm HART device communication if applicable.
9. Return the I/O Link to normal operating mode. Clear maintenance alarms. Document the swap in your maintenance log with the replacement unit’s serial number and firmware revision.

One configuration point engineers consistently miss: If you are replacing one module in a redundant CC-PAIX02 pair, both primary and secondary cards must carry identical firmware revisions. A firmware mismatch between the pair prevents bumpless transfer and will generate a redundancy fault within minutes of the swap. Confirm revision parity before closing the cabinet.

Reliability in Harsh Conditions

Marshalling cabinets in petrochemical plants, offshore platforms, and heavy manufacturing facilities are not kind to electronics. Ambient temperatures swing from cold-start conditions at 5°C to sustained +55°C in summer with no air conditioning. Humidity cycles through condensation events during plant shutdowns. Vibration from compressors, pumps, and structural resonance transmits directly through the control panel frame into every card in the chassis.

The CC-PAIX02 was built for exactly these conditions. The optical isolation barrier between field-side circuitry and the C300 backplane bus eliminates ground-loop-induced noise — a failure mode that presents as slow instrument drift before it becomes an outright channel fault, and one that is notoriously difficult to diagnose without understanding the module’s internal architecture. The PCB conformal coating resists moisture ingress and corrosive atmospheres: hydrogen sulfide in refineries, salt-laden air on offshore platforms, ammonia in fertilizer plants. The FM Class I Division 2 and ATEX Zone 2 certifications reflect tested performance in the presence of ignitable gas concentrations — not a marketing checkbox, but a real qualification that matters in the environments where this module actually runs.

Every unit we ship has been stored in climate-controlled warehousing, physically inspected for damage, and power-on tested where applicable. We record the firmware revision and serial number for every unit dispatched. You receive a traceable, documented replacement — not a mystery card from a liquidation pallet with unknown history.

Global Express Logistics

Our warehouse operates in Xiamen, Fujian — a primary export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. When your plant is down, air freight is the cheapest line item on your total downtime cost sheet. We treat every order as time-critical by default.

Estimated transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days — DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days — FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days — DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days — FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days — DHL or UPS Expedited
• Australia & New Zealand: 3–4 business days — DHL Express
• South Asia (India, Pakistan, Bangladesh): 3–4 business days — FedEx or DHL

Every shipment includes a commercial invoice, packing list, and inspection record. Certificate of origin and material safety documentation available on request for regulated-industry import requirements. We manage export customs clearance from the China side. For shipments where the next flight departure matters, contact us before placing the order — we will confirm the next available departure from Xiamen Gaoqi International Airport and hold the unit at the freight station if needed.

Payment confirmation to dispatch: under 4 hours during business hours (UTC+8, Monday–Saturday). Orders are not batched — your unit moves the same day, independently.
