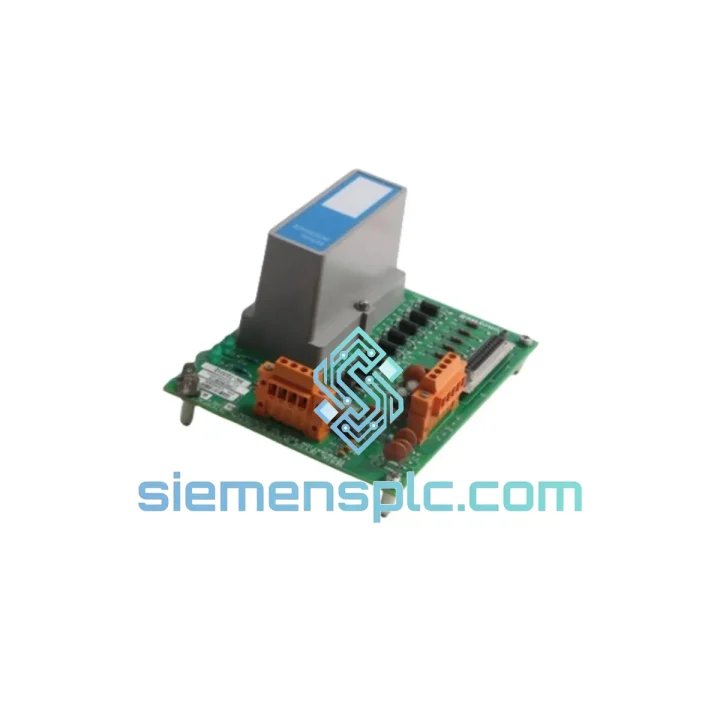

Honeywell CC-PDOD51 51454408-175 Digital Output Module

Honeywell CC-PDOD51 51454408-175 — 24VDC Digital Output Module: Stop the Clock on Your Downtime

Every hour a process line sits idle costs money — in lost throughput, emergency labor, and contractual penalties. The Honeywell CC-PDOD51 (P/N: 51454408-175) is a 24VDC Digital Output module for the Experion PKS C300 DCS platform. When this card fails, field devices go dark: control valves freeze, motor starters drop out, and safety interlocks lose their command path. We stock this module in Xiamen and ship globally via DHL/FedEx express — because waiting three weeks for an OEM order is not an option when your plant is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the CC-PDOD51 points to a consistent set of failure signatures and replacement pitfalls. Work through these before you pull the card:

Common Fault Indicators

• FAULT LED solid red on module faceplate — Most frequently caused by an overloaded output channel (field short circuit) or a blown internal fuse on the 24V supply rail. Isolate field wiring loop by loop before condemning the module itself.
• Experion PKS alarm: “DO Module Communication Lost” — Check backplane connector seating first. Reseat the module with power applied (hot-swap supported); if the alarm clears within 30 seconds, the connector was the culprit, not the card.
• Partial channel failure (some outputs respond, others do not) — Indicates internal MOSFET driver failure on specific output banks. This is a hardware fault; the module must be replaced. Document which channels failed for your maintenance log.
• Module recognized by C300 but outputs do not energize — Verify that the IOTA termination assembly (CC-TAOX11 or equivalent) is correctly wired and that the 24VDC field power supply to the IOTA is live. The module logic can be healthy while field power is absent.

Replacement Procedure — Key Configuration Steps

1. Record the module slot address before removal. In Experion PKS, the C300 assigns I/O modules by chassis slot position. The replacement module inherits the same address automatically — no manual addressing or DIP switch setting is required for standard C300 I/O.
2. Verify firmware compatibility. Check the C300 controller firmware revision in Experion Configuration Studio. CC-PDOD51 modules with hardware revision C or later are compatible with Experion R500 and above. Mismatched firmware will result in a “Module Type Mismatch” fault.
3. Hot-swap procedure: The CC-PDOD51 supports live insertion. Slide the new module into the slot — the C300 will detect it within 15–30 seconds and begin downloading the I/O configuration automatically. Monitor the Experion alarm banner for confirmation.
4. Post-replacement output verification: Force each output channel ON/OFF from the Experion operator station in maintenance mode. Confirm field device response before returning the loop to automatic control.
5. IOTA inspection: If the original module failed due to a field wiring fault (short circuit), inspect the IOTA terminal block for burn marks or damaged wiring before installing the replacement. A shorted field device will destroy the new module within minutes.

Common Fault Codes (Experion PKS Event Journal)

• IOM_COMM_FAIL — I/O module communication failure; check backplane and FTE network path.
• DO_CHAN_OPEN_WIRE — Open circuit detected on output channel; field wiring break or disconnected load.
• DO_CHAN_OVERCURRENT — Output channel current exceeded 500 mA threshold; field device drawing excessive current.
• IOM_PWR_FAIL — Module power supply fault; check 24VDC backplane rail voltage.

Reliability in Harsh Conditions

The CC-PDOD51 is not a light-duty office component. It is engineered for continuous operation inside DCS cabinets in oil refineries, chemical plants, and offshore platforms — environments where temperature swings, vibration, and airborne contaminants are daily realities.

• Optical isolation barrier: Each output channel passes through an optocoupler that electrically separates the 24VDC field circuit from the module’s internal logic. This prevents field-side transients — inductive spikes from solenoid valves and motor contactors — from propagating into the C300 backplane and corrupting controller memory.
• EMC hardening: The module’s PCB layout follows Honeywell’s internal EMC design rules, with ground planes, decoupling capacitors at every power pin, and shielded traces on high-speed signal lines. Conducted and radiated emissions are qualified to IEC 61000-4 series test levels.
• Vibration tolerance: Qualified to IEC 60068-2-6 sinusoidal vibration (5–150 Hz, 1g) and IEC 60068-2-27 mechanical shock (15g, 11 ms half-sine). Backplane connector retention force is sufficient to maintain contact under continuous vibration from adjacent rotating machinery.
• Thermal management: The module operates across a 0–60°C ambient range without derating. Internal power dissipation is managed through the backplane’s forced-air cooling path; no additional heatsinking is required in standard cabinet configurations.
• Humidity and condensation resistance: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing, resisting corrosion from process area atmospheres containing H₂S, SO₂, or salt-laden air.
• Long-term component sourcing: Honeywell designs Series C I/O modules with a 10+ year product lifecycle. Critical semiconductors are sourced from qualified suppliers with long-term supply agreements, reducing the risk of mid-lifecycle component obsolescence.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major port city with direct access to DHL, FedEx, and UPS international express networks. Here is how we get the CC-PDOD51 to your site:

• Order confirmation: Once payment or PO is confirmed, we pull the unit from stock, photograph it, and send you pre-shipment inspection images within 2 hours during business hours.
• Export documentation: We prepare the commercial invoice, packing list, and certificate of origin. For destinations requiring an ECCN classification or import permit, we advise in advance.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers. Transit times: USA 3–5 days, Europe 3–5 days, Middle East 4–6 days, Southeast Asia 2–3 days, South America 5–8 days.
• Tracking: A waybill number is sent to you within 24 hours of dispatch. We monitor shipments proactively and alert you to any customs holds or delays.
• Customs support: We declare goods accurately with the correct HS code (8537.10 for programmable controller I/O modules) and provide any additional documentation required by your country’s customs authority.
• Emergency same-day dispatch: For critical plant-down situations, contact us before 14:00 CST and we will arrange same-day pickup by the express carrier.
