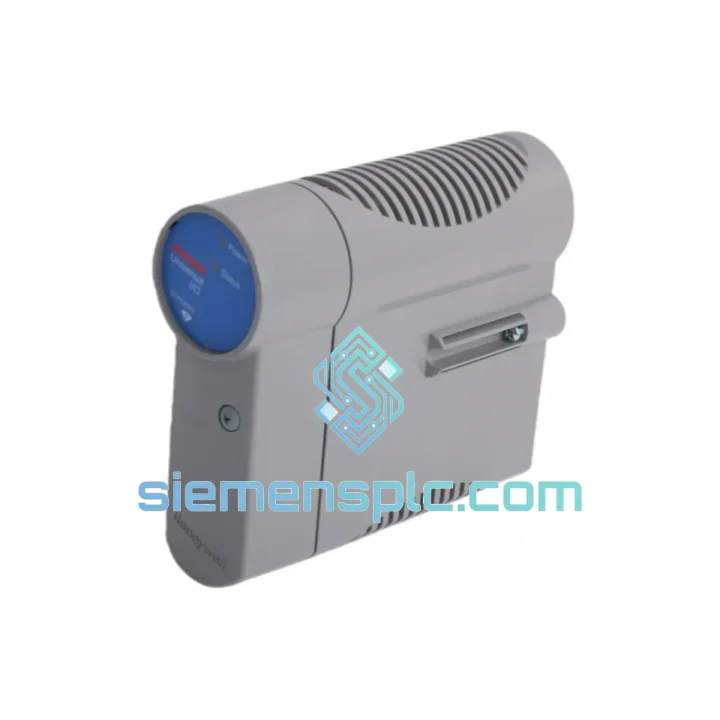

Honeywell CC-PUIO31 DCS I/O Module – C300 Experion PKS

Honeywell CC-PUIO31 Universal I/O Module: Signal Aggregation Architecture in C300-Based DCS Control Loops

The CC-PUIO31 occupies a structurally critical position within the Honeywell Experion PKS C300 distributed control system. As a 32-channel universal I/O module, it serves as the primary signal termination and conditioning layer between field instrumentation and the C300 controller’s execution engine. Unlike fixed-type I/O modules that commit each channel to a single signal class at the hardware level, the CC-PUIO31 implements per-channel software-configurable signal routing, allowing a single physical slot to accept 4–20 mA analog inputs, RTD/thermocouple inputs, discrete 24 VDC signals, or analog outputs—determined entirely by Experion Configuration Studio assignments rather than physical jumpers or module variants. This architecture directly reduces the number of distinct module part numbers required per cabinet, compresses marshalling panel footprint, and eliminates the need for separate AI, AO, DI, and DO termination assemblies in mixed-signal process areas.

In a typical C300 control loop, the CC-PUIO31 interfaces with the I/O Link backplane, which carries both power (24 VDC via backplane rail) and the high-speed serial I/O Link bus to the C300 controller. The controller polls each channel at a configurable scan rate—typically 100 ms for analog loops and 50 ms for discrete—and the CC-PUIO31’s onboard microprocessor handles analog-to-digital conversion, signal linearization for thermocouple and RTD types, and HART protocol framing before placing data on the I/O Link bus. This local preprocessing offloads computational burden from the C300 controller and ensures that raw engineering-unit values arrive at the controller’s function block execution layer without additional scaling overhead.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Per-Channel Optical Isolation Architecture
Each of the 32 channels on the CC-PUIO31 incorporates individual optical isolation barriers between the field-side signal conditioning circuitry and the module’s internal logic bus. The isolation voltage rating is 500 V RMS (channel-to-bus), which satisfies the requirements of IEC 61131-2 for galvanic separation in industrial environments. This per-channel isolation topology—as opposed to group isolation where 8 or 16 channels share a single isolation barrier—prevents a ground fault or transient on one field device from propagating to adjacent channels or corrupting the I/O Link bus. In high-density process areas where multiple signal sources share common cable trays, this design characteristic is operationally significant: a wiring fault on a thermocouple input does not induce offset errors on adjacent 4–20 mA transmitter channels.

EMC Design and Conducted Noise Rejection
The CC-PUIO31’s analog front end employs differential input amplifiers with a common-mode rejection ratio (CMRR) of ≥ 80 dB at 50/60 Hz. This specification is relevant in environments where variable-frequency drives (VFDs), large motor starters, and high-current bus bars generate conducted electromagnetic interference on signal cable shields. The module’s PCB layout routes analog signal traces with guard rings and maintains physical separation between analog and digital ground planes, with a single-point star ground connection at the backplane connector. Ferrite bead filtering on power supply pins attenuates high-frequency switching noise from the backplane DC rail before it reaches the analog reference voltage circuitry.

HART Multiplexing Without External Hardware
The CC-PUIO31 implements HART communication by superimposing the FSK (frequency-shift keying) signal on the 4–20 mA loop without interrupting the primary process variable transmission. The module’s onboard HART modem handles the 1200/2200 Hz FSK encoding and decoding, and the Experion PKS FDM (Field Device Manager) application accesses HART device descriptors, diagnostic variables, and configuration parameters through the I/O Link bus—eliminating the need for external HART multiplexers or handheld communicators for routine asset management tasks. This integration reduces wiring complexity and allows HART device health data to be surfaced directly in Experion operator displays.

Hot-Swap and Bumpless Transfer Logic
The module supports live insertion and removal from the backplane without requiring controller shutdown or process interruption. When a CC-PUIO31 is removed, the C300 controller detects the loss of I/O Link communication within one scan cycle and transitions affected channels to their configured fault-state outputs (hold last value, go to defined safe state, or generate alarm). Upon reinsertion, the module performs a self-test sequence—verifying internal reference voltages, A/D converter linearity, and I/O Link bus synchronization—before the controller resumes normal scan. The entire reinsertion-to-operational sequence completes in under 10 seconds under normal conditions.

System Integration Benefits

• Reduced Cabinet Footprint: A single CC-PUIO31 replaces up to four separate fixed-type I/O modules (AI, AO, DI, DO), reducing backplane slot consumption and cabinet panel space by 40–60% in mixed-signal applications.
• Deterministic Scan Performance: The I/O Link bus operates at a fixed baud rate with time-slot allocation per module, ensuring that scan cycle jitter for any given channel remains below ±2 ms regardless of total system I/O count—a requirement for tight PID loop tuning in temperature and pressure control applications.
• Integrated Diagnostics Transparency: Each channel reports wire-break detection (open-circuit), out-of-range signal, A/D saturation, and HART device fault status directly to the Experion alarm management system without requiring additional diagnostic modules or external signal conditioners.
• Redundancy Scalability: The CC-PUIO31 pairs with the CC-PUIO31R redundant variant in a 1:1 active/standby configuration. Switchover on primary module fault is bumpless and completes within one I/O Link scan cycle, maintaining process variable continuity for all 32 channels simultaneously.
• Simplified Engineering Workflow: Channel type assignment is performed entirely within Experion Configuration Studio using drag-and-drop function block connections, with no physical hardware changes required when process requirements change during commissioning or plant modification projects.
• HART Asset Management Integration: Native HART pass-through enables Experion FDM to maintain a live device registry, schedule predictive maintenance alerts based on device diagnostic variables (e.g., sensor drift, valve travel accumulation), and generate audit-trail records for GMP-regulated facilities.
• Broad Signal Type Coverage: Support for RTD types Pt100 through Pt1000 and thermocouple types J through N within a single module eliminates the need for external signal converters or transmitter heads in temperature measurement applications, reducing loop component count and potential failure points.
• Backward Compatibility Across Experion Releases: The CC-PUIO31 is supported from Experion PKS R400 through current releases. Firmware updates are delivered via the Experion server without physical module removal, protecting the capital investment across multiple platform upgrade cycles.

Quality Assurance & Global Logistics

Every CC-PUIO31 unit dispatched from our Xiamen, China facility is sourced directly from authorized Honeywell distribution channels and undergoes a structured pre-shipment verification protocol. Visual inspection confirms housing integrity, connector pin condition, label legibility, and firmware revision marking against Honeywell factory documentation. Where test equipment is available, modules are bench-powered and channel configuration is verified against known reference signals prior to packaging.

Units are packed in anti-static ESD shielding bags with desiccant sachets, placed in foam-lined inner boxes, and double-boxed for international freight. Shipments from Xiamen reach major industrial hubs in Southeast Asia within 3–5 business days, the Middle East within 5–7 days, Europe within 7–10 days, and North America within 7–12 days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. DDP (Delivered Duty Paid) terms are available for select destinations. Commercial invoices, packing lists, and certificate of origin documentation are prepared for all export shipments. Emergency same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched before the defective unit is returned in confirmed cases, minimizing plant downtime.
