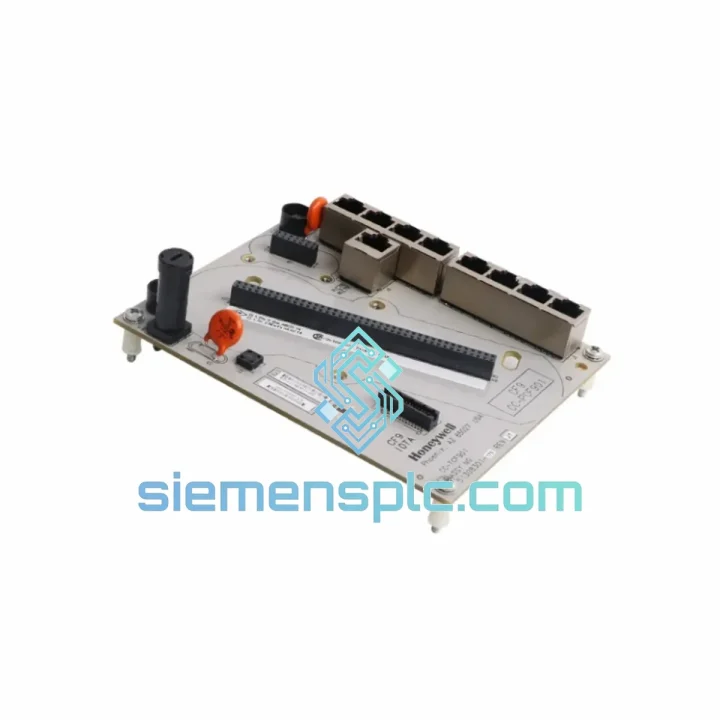

Honeywell CC-TAOX01 — 8-Channel Isolated Analog Output Module in the Experion PKS C300 Control Architecture

The Honeywell CC-TAOX01 is an 8-channel, galvanically isolated analog output (AO) module engineered for deployment within the Experion PKS distributed control system, interfacing directly with the C300 Process Controller over a proprietary high-speed backplane bus. Each channel delivers a precision 4–20 mA current-loop signal to field actuators — control valves, variable-speed drives, electro-pneumatic positioners, and similar final control elements — with a 16-bit digital-to-analog conversion stage that yields a theoretical resolution of approximately 0.244 µA per LSB across the full output span.

In a C300-based control loop, the CC-TAOX01 occupies the output terminus of the deterministic execution chain. The C300 controller resolves its control algorithm at a configurable scan rate (typically 100 ms to 1 s for regulatory loops), writes the computed output value to the module’s internal register via the C300 I/O backplane, and the module’s onboard DAC converts that value to a proportional current within a settling time of less than 2 ms. This end-to-end latency budget — from algorithm execution to physical current output — is a critical parameter in tight cascade and ratio control schemes where output lag directly degrades loop performance.

The module mounts into a standard C300 I/O chassis (CC-PCF901 or CC-PCF902) and requires its dedicated IOTA (I/O Termination Assembly) for field wiring. The IOTA provides screw-terminal access to all eight output channels and carries the channel-to-channel isolation barrier circuitry, keeping hazardous field-side potentials separated from the backplane logic side. This two-board architecture — module plus IOTA — allows the CC-TAOX01 to be hot-swapped during live plant operation without disturbing field wiring, a design feature that directly supports zero-downtime maintenance strategies in continuous-process facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-TAOX01’s internal architecture separates into three functional domains: the backplane interface logic, the digital-to-analog conversion stage, and the output driver and isolation layer.

Backplane Interface Logic: The module communicates with the C300 controller via a deterministic, time-division multiplexed serial bus embedded in the C300 I/O chassis backplane. This bus operates at a fixed clock rate, ensuring that output register updates arrive at the module within a bounded latency window regardless of the number of modules installed in the chassis. The interface logic includes a local watchdog timer: if the C300 controller fails to refresh the output register within a configurable timeout period (typically 500 ms to 2 s), the module autonomously drives each channel to a pre-configured fail-safe state — either hold-last-value or drive to a defined mA setpoint — without requiring any intervention from the host controller. This fail-safe behavior is configured in Experion Control Builder and stored in non-volatile memory on the module itself, meaning the fail-safe action executes even if the controller is completely offline.

16-Bit DAC Stage: Each of the eight channels contains an independent 16-bit DAC. The DAC reference voltage is derived from a precision bandgap reference circuit with a temperature coefficient below 50 ppm/°C, which is the primary contributor to the module’s ±0.1% full-scale accuracy specification across the 0–60°C operating range. The DAC output feeds a voltage-to-current (V/I) converter that drives the 4–20 mA loop. The V/I converter is a closed-loop transimpedance amplifier that continuously monitors the actual loop current via a precision sense resistor and corrects for load resistance variations, ensuring output accuracy is maintained across the full 0–750 Ω load range.

Galvanic Isolation and EMC Design: The isolation barrier between the field-side output driver and the backplane logic side is implemented using transformer-coupled DC/DC converters for power and optocoupler-based signal paths for data. This architecture provides a continuous isolation rating of 250 V rms per channel, sufficient for most industrial field environments. The transformer-coupled power stage eliminates the ground loops that would otherwise form between field devices at different earth potentials — a common source of 50/60 Hz interference in 4–20 mA loops. On the EMC front, the module’s PCB layout employs a split ground plane strategy: the digital logic ground and the analog output ground are separated and joined at a single star point, minimizing high-frequency digital switching noise from coupling into the analog output path. Conducted and radiated emissions are suppressed to meet EN 55011 Class A limits, and the module carries immunity ratings per IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge).

Online Diagnostics: The module continuously monitors each channel’s loop current against the commanded setpoint. A deviation exceeding a configurable threshold (default ±2% of span) generates a channel-level diagnostic alarm visible in Experion Station without requiring the operator to enter the field. Open-loop detection (loop current below 3.6 mA) and over-range detection (above 20.5 mA) are reported as distinct alarm categories, enabling maintenance teams to distinguish between a broken field wire and a saturated control output.

System Integration Benefits

• Deterministic Output Latency: The fixed-clock backplane bus guarantees that the C300 controller’s computed output value reaches the DAC register within a bounded time window, supporting control loop scan rates as fast as 100 ms without output jitter.
• Zero-Downtime Hot-Swap: The two-board module-plus-IOTA architecture allows the CC-TAOX01 to be physically removed and replaced while the chassis remains powered and field wiring remains connected, eliminating the need for process shutdown during module replacement.
• Fail-Safe Autonomy: Onboard watchdog logic and non-volatile fail-safe configuration ensure that each channel responds correctly to controller communication loss without relying on any upstream software layer.
• Per-Channel Galvanic Isolation: Individual channel isolation eliminates inter-channel ground loops and prevents a fault on one field device from propagating to adjacent channels, improving overall loop availability.
• Integrated Loop Diagnostics: Continuous current monitoring with open-loop and over-range detection provides maintenance teams with actionable field-device health data directly from the Experion Station HMI, reducing mean time to repair (MTTR).
• 1:1 Module Redundancy: When paired with a redundant C300 controller, the CC-TAOX01 supports bumpless transfer between primary and standby modules, maintaining uninterrupted output to critical final control elements during module switchover.
• Firmware-Managed Configuration: All channel parameters — engineering unit ranges, fail-safe values, alarm thresholds — are stored in the Experion PKS database and downloaded to the module automatically, eliminating manual DIP-switch configuration and reducing commissioning errors.
• Broad Firmware Compatibility: The module operates across Experion PKS R400 through the current R500 series, protecting the capital investment in installed hardware as the control system software is upgraded over the plant lifecycle.
• FM Class I Division 2 Approval: The module is approved for installation in hazardous areas classified as Class I, Division 2 (Groups A, B, C, D), covering a wide range of petrochemical and gas-handling environments without requiring additional explosion-proof enclosures for the module itself.
• Compact Chassis Density: Eight isolated AO channels in a single chassis slot delivers a channel-per-slot density that minimizes chassis space consumption and reduces total installed cost in large I/O count applications.

Quality Assurance & Global Logistics

Every CC-TAOX01 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries full Honeywell original manufacturer traceability. Units are inspected upon receipt for physical integrity, label authenticity, and firmware version consistency. Where applicable, a functional power-on verification is performed prior to shipment to confirm that the module initializes correctly and passes its internal self-test sequence.

Packaging follows anti-static and moisture-barrier protocols: each module is sealed in an ESD-protective bag, placed in foam-lined inner packaging, and enclosed in a double-wall export carton rated for international air freight handling. For shipments requiring additional documentation, certificates of conformance and packing lists are prepared in English and can be provided in advance of shipment for customs pre-clearance.

Logistics operations are based in Xiamen, China, a major southeastern port city with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard air express transit times from Xiamen to major industrial hubs are 2–4 business days to Southeast Asia, 3–5 business days to Europe and the Middle East, and 4–6 business days to North and South America. Sea freight consolidation is available for bulk orders where lead time permits. All shipments are covered by cargo insurance, and tracking numbers are provided within 24 hours of dispatch. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements.

A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 2 business days, and replacement units are dispatched from Xiamen stock where available.
