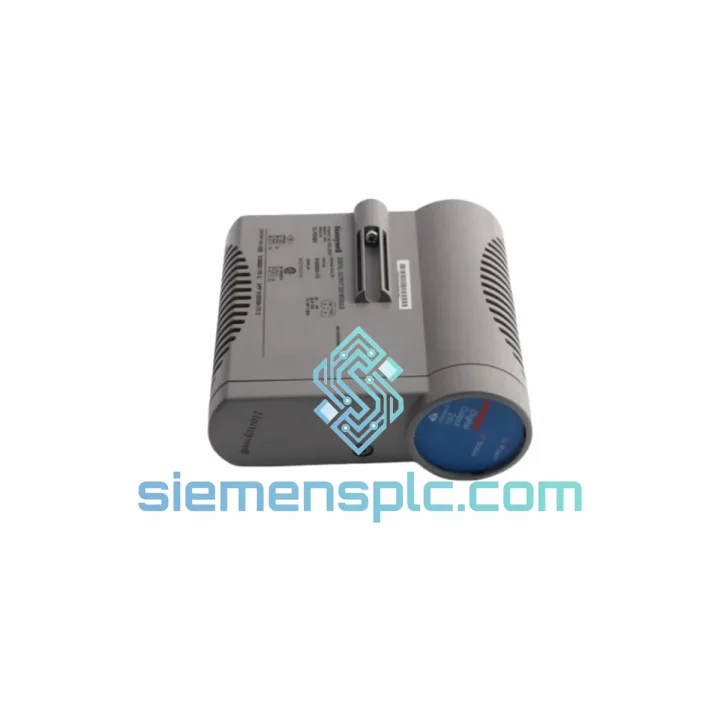

Honeywell CC-TDIL51 CC-PDIL51 Digital Input Module

CC-TDIL51 / CC-PDIL51 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your C300 DCS sits offline, you’re bleeding money. A failed digital input module shouldn’t take your process down for days while you chase lead times through official channels. We stock the Honeywell CC-TDIL51 / CC-PDIL51 — the terminal board and I/O module pair that keeps your Experion PKS running — and we can have it moving toward your site within hours of order confirmation.

This isn’t a catalog listing. This is a field-ready unit, inspected, verified, and packed for express freight. Whether you’re in a refinery in the Middle East, a power plant in Southeast Asia, or a pharmaceutical facility in Europe, our Xiamen logistics hub puts this module on your doorstep faster than your local distributor can even pull up a quote.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The CC-TDIL51 / CC-PDIL51 pair is a hot-swap capable assembly, but field replacements still carry risk if you skip the checklist. Here’s what 10 years of emergency callouts have taught:

1. Confirm the fault is the module, not the field wiring. Before pulling the card, check Experion Station for fault codes. A DIAG_FAIL or COMM_FAIL on the C300 I/O tree pointing to this slot is your green light to swap. If you’re seeing intermittent channel faults on only a few points, suspect field-side wiring or terminal corrosion first — don’t waste a spare module.

2. No DIP switches on this module — but address matters. The CC-PDIL51 uses soft addressing via the C300 controller configuration. The slot position in the IOTA rack determines the I/O address. When you seat the replacement, Experion PKS will auto-recognize it within 30–60 seconds if the controller is online. You do not need to re-download the controller database for a like-for-like swap.

3. Firmware revision check before insertion. Pull the label on the replacement unit and confirm the firmware revision matches or exceeds what’s running in your system. Mixing R310 firmware modules into an R400+ system is generally safe, but going the other direction (newer module into older firmware environment) can cause unexpected COMM_FAIL alarms. Check the Experion PKS compatibility matrix if in doubt.

4. ESD discipline is non-negotiable. The CC-PDIL51 optical isolation protects the backplane, but the module’s internal logic is still ESD-sensitive. Ground yourself before handling. Don’t slide the module across a plastic surface. Use the anti-static bag it ships in until the moment of insertion.

5. Post-swap verification. After seating the module, watch the Experion Station I/O status for 2–3 minutes. All 32 channels should report their field state within one scan cycle. Force a known input (close a dry contact on a test terminal) to confirm channel-level integrity before signing off the repair.

Common fault codes associated with this module:

• DIAG_FAIL — Internal module self-test failure. Replace module.
• COMM_FAIL — Backplane communication lost. Check module seating and FTE network status before replacing.
• CH_OPEN on multiple channels — Field wiring issue or terminal board (CC-TDIL51) fault. Swap terminal board first.
• PWR_FAIL — Check 24 VDC field power supply to the IOTA, not the module itself.

Reliability in Harsh Conditions

The Honeywell CC-PDIL51 was engineered for process industries where the environment is actively trying to kill your instrumentation. Optical isolation on every channel group means a field-side voltage spike — from a solenoid valve, a relay coil, or a lightning-induced transient — stops at the isolation barrier and never reaches the C300 backplane. That’s not a marketing claim; it’s the reason this module is specified for offshore platforms and chemical plants where ground loops and EMI are facts of life.

The operating temperature range of 0°C to 60°C covers the vast majority of control room and marshalling cabinet environments globally. The module’s conformal-coated PCB handles humidity levels up to 95% non-condensing — relevant if your facility is in a tropical climate or if your control room HVAC has ever failed during a summer shutdown. Vibration tolerance meets IEC 68-2-6 standards, which matters in compressor buildings and pump stations where the floor never stops moving.

Units we ship have been stored in climate-controlled conditions and inspected for any signs of corrosion, connector damage, or label degradation before dispatch. We don’t ship modules that we wouldn’t install ourselves.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL/FedEx sort facility.
• DHL Express to Middle East (UAE, Saudi Arabia): 2–3 business days door-to-door.
• FedEx International Priority to Europe (Germany, Netherlands, UK): 3–4 business days.
• DHL to Southeast Asia (Singapore, Malaysia, Thailand): 1–2 business days.
• FedEx to North America (USA, Canada): 3–5 business days.

Every shipment includes a commercial invoice, packing list, and HS code declaration pre-filled for customs clearance. For orders to countries with strict import controls on industrial electronics, we can provide a certificate of origin and end-user declaration template. Tracking numbers are sent within 2 hours of dispatch. We’ve shipped to 40+ countries — customs delays are rare when documentation is done right, and we do it right.

For orders requiring air freight on pallets (multiple modules, full rack replacements), we work with freight forwarders out of Xiamen Gaoqi International Airport. Contact us for a freight quote alongside your module quote.
