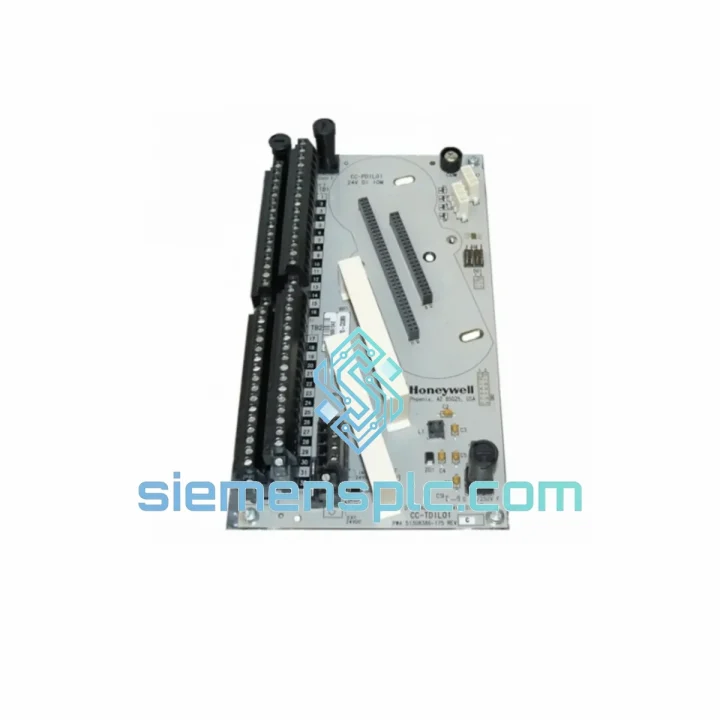

Honeywell CC-TDOB01 CC-TDIL01 Digital Output Module

Honeywell CC-TDOB01 / CC-TDIL01 — Stop the Bleed: Every Minute of DCS Downtime Costs You Real Money

Your Experion PKS C300 digital output subsystem just went dark. Valve actuators frozen. Pump sequences halted. The control room is calling. You’ve already isolated the fault to the CC-TDOB01 termination board or the CC-TDIL01 link module — now the only variable left is how fast you can get a verified replacement on-site. That’s exactly what siemensplc.com is built for.

We stock CC-TDOB01 and CC-TDIL01 in Xiamen, China, with same-day DHL/FedEx dispatch available for orders confirmed before 15:00 CST. No broker delays. No counterfeit risk. No waiting on OEM lead times that stretch 8–16 weeks. You get a 100% original Honeywell module, pre-inspected, ESD-packed, and moving toward your plant within hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to CC-TDOB01 / CC-TDIL01 failure:

• Fault Code 0x4A / Module Communication Lost — Experion Station flags the I/O link as offline. First suspect: CC-TDIL01 link module. Check backplane seating before condemning the module.
• Partial channel dropout (e.g., CH 9–16 dead, CH 1–8 alive) — Indicates internal output driver failure on the CC-TDOB01 termination board. Confirm with per-channel diagnostics in Experion Station.
• All 16 channels show OFF regardless of controller command — Check 24 VDC field power supply to the termination board first. If supply is confirmed good, the CC-TDOB01 output stage has failed.
• Intermittent channel chatter / spurious outputs — Often caused by optical isolator degradation inside CC-TDOB01, accelerated by high ambient temperature or humidity ingress.

Step-by-step hot-swap replacement procedure (C300 I/O Link architecture):

1. In Experion Station, navigate to the affected I/O module and place it in Manual Override mode to freeze output states before physical removal.
2. De-energize field power to the CC-TDOB01 termination board — do NOT remove the module under live field voltage.
3. Disconnect field wiring from the termination board. Label each terminal before removal; the CC-TDOB01 uses a 40-pin screw terminal block. Photograph the wiring layout.
4. Remove the CC-TDOB01 from the chassis. If replacing the CC-TDIL01 link module, note its slot address — the C300 system uses slot-based addressing; the replacement must occupy the identical slot position.
5. Insert the replacement module. The C300 controller will auto-download the I/O configuration within 30–60 seconds of module insertion — no manual re-addressing required under standard configuration.
6. Reconnect field wiring per your labeled diagram. Restore field power.
7. In Experion Station, release Manual Override and verify per-channel status. Confirm all 16 channels report correct state against your process P&ID.
8. Firmware note: The C300 system pushes firmware automatically. If your site runs Experion PKS R500 or later, no manual firmware flash is required. For R400 and below, verify firmware compatibility with your site’s DCS administrator before insertion.

Configuration items to verify post-replacement:

• No DIP switch or rotary address switch on CC-TDOB01 / CC-TDIL01 — addressing is slot-position-based and managed by the C300 controller automatically.
• Confirm the replacement module’s hardware revision matches or exceeds the failed unit’s revision. Check the label on the module side panel.
• If the system uses redundant I/O links, verify the redundancy partner module is still healthy after the swap — a simultaneous failure of both primary and secondary is rare but not impossible in aged systems.

Reliability in Harsh Conditions

The CC-TDOB01 and CC-TDIL01 were engineered for continuous operation in environments that would destroy consumer-grade electronics within weeks. Honeywell’s qualification testing for the Experion PKS C300 I/O family covers:

• Vibration: IEC 60068-2-6 sinusoidal vibration testing at 5–150 Hz, 1g acceleration — validated for installation on vibrating structures such as compressor skids and pump platforms without additional shock isolation.
• Thermal cycling: Repeated thermal shock between 0°C and +60°C operating extremes, with storage ratings extending to -40°C / +85°C. The optical isolators and output driver ICs are rated for the full industrial temperature range.
• Humidity and condensation resistance: Conformal coating on the PCB assembly provides protection against humidity ingress up to 95% RH non-condensing. In coastal or tropical plant environments, this coating is the primary defense against corrosion-induced failure.
• EMI/RFI immunity: Compliant with IEC 61000-4 series (ESD, radiated immunity, conducted immunity, surge). The optical isolation barrier on each channel provides inherent common-mode rejection, critical in plants with large motor drives and welding equipment nearby.
• Hazardous area rating: FM Class I Division 2 / ATEX Zone 2 certification allows installation in control panels located in classified areas without additional purging or pressurization equipment.

In practice, these modules routinely run 10–15 years in refinery and petrochemical environments before failure — when they do fail, it’s typically due to electrolytic capacitor aging, optical isolator degradation from sustained high-temperature operation, or physical damage from field wiring faults (overcurrent events). A failed module is not a reflection of poor design; it’s a consumable in a long-running industrial system.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export cities in Asia, with direct DHL, FedEx, and UPS gateway access.

• Same-day dispatch: Orders confirmed with payment before 15:00 CST ship the same business day via DHL Express or FedEx International Priority.
• Transit times (typical):
  • Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
  • Middle East (UAE, Saudi Arabia, Kuwait): 3–4 business days
  • Europe (Germany, Netherlands, UK): 4–5 business days
  • North America (USA, Canada): 4–6 business days
  • South America (Brazil, Chile): 6–8 business days
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8537.10 declared for customs clearance. CoC and inspection reports available on request.
• ESD-safe packaging: Each module ships in anti-static poly bag with moisture barrier desiccant, inside a rigid foam-lined carton. Meets JEDEC JESD625 handling standards.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Emergency freight: For critical shutdowns, we can arrange next-flight-out courier service. Contact us directly on WhatsApp for fastest response.
