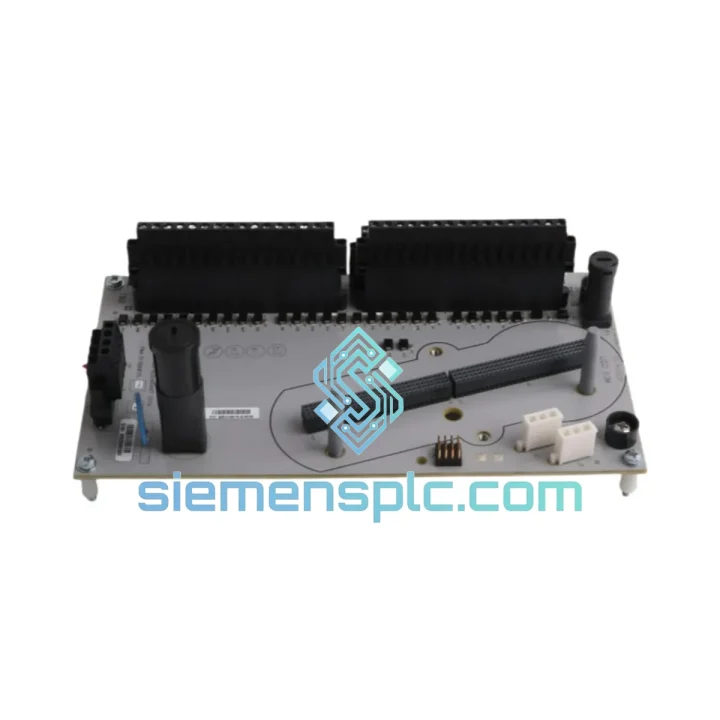

Honeywell CC-TUIO31 51306875-176 DCS Terminal Board

CC-TUIO31 51306875-176 — Stop the Bleed: Every Minute of DCS Downtime Has a Price Tag

Your Experion PKS C300 rack just lost a terminal board. Field signals are dark. The operator is on the phone. Maintenance is standing by. You already know what this costs — and it compounds by the minute. The CC-TUIO31 (Honeywell part 51306875-176) is not a commodity item you can substitute with something “close enough.” It is the exact screw-terminal interface that marries your field wiring to the Series C I/O backplane. Without it, your C300 controller is blind.

We stock the CC-TUIO31 in Xiamen, China — inspected, verified, and ready to move. DHL and FedEx express lanes are already mapped. If you are reading this during a live incident, stop scrolling and make contact now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work across refineries, power plants, and chemical reactors, these are the failure patterns and replacement pitfalls that actually matter for the CC-TUIO31:

Common Failure Modes:

• Screw-terminal corrosion or cold joints: The most frequent culprit in humid or coastal environments. Symptoms include intermittent AI channel dropouts or erratic 4–20 mA readings. Before condemning the module, inspect terminal block seating and check for oxidation on the field wiring lugs. If the board itself shows green corrosion on the PCB traces near the terminal strip, replacement is the only reliable fix.
• Backplane connector wear: After repeated insertion cycles during maintenance, the Series C backplane connector on the CC-TUIO31 can develop high-contact-resistance faults. Experion PKS will log this as a “Module Communication Fault” or “I/O Link Error” in the FDM event journal. Reseating rarely resolves it permanently — swap the board.
• ESD damage from improper hot-swap: The CC-TUIO31 supports hot-swap, but only if the field wiring is de-energized first. Pulling a live terminal board with 24 VDC field power still applied to the screw terminals is the fastest way to destroy the protection circuitry on both the terminal board and the mating I/O module. Always de-energize field circuits before removal.
• Firmware mismatch after replacement: The CC-TUIO31 itself carries no firmware — it is a passive termination board. However, if you are replacing the mating Series C I/O module simultaneously, confirm the module firmware revision matches what is registered in your Experion PKS Control Builder project. A firmware delta will trigger a “Module Type Mismatch” alarm and prevent the channel from going online.

Replacement Procedure — Field-Tested Steps:

1. In Experion PKS Control Builder, navigate to the affected I/O module and place it in “Maintenance Mode” to suppress nuisance alarms during the swap.
2. De-energize all field circuits connected to the terminal board. Verify with a multimeter — do not rely on the DCS status alone.
3. Label every field wire before disconnecting. The CC-TUIO31 uses a universal layout, but your specific channel-to-terminal mapping is defined in your project wiring schedule. A mislabeled wire on a universal board is a silent error that will not show up until the loop is commissioned.
4. Disconnect field wiring from the screw terminals. Remove the terminal board from the chassis by releasing the locking tab and sliding it out of the backplane connector.
5. Inspect the backplane connector on the chassis for bent pins or debris before inserting the replacement CC-TUIO31.
6. Seat the new board firmly until the locking tab clicks. Reconnect field wiring per your labeled schedule.
7. Re-energize field circuits. In Control Builder, take the module out of Maintenance Mode and verify all channels return to normal scan status. Check FDM for any residual alarms.
8. No address switches, no DIP switches, no firmware upload required — the CC-TUIO31 is self-identifying on the Series C backplane. The C300 controller will auto-detect the replacement board within one scan cycle.

Key Diagnostic Codes to Know:

• “I/O Module Not Responding” — Check backplane seating and terminal board connector integrity first.
• “Channel Fault — Open Circuit” — Verify field wiring continuity at the screw terminals before replacing the board.
• “Module Communication Fault” — High probability of backplane connector degradation on the terminal board side.

Reliability in Harsh Conditions

The CC-TUIO31 was not designed for a climate-controlled server room. It was built for the environments where process control actually happens: the instrument marshalling cabinet bolted to the wall of a refinery unit that runs 340 days a year, the substation panel exposed to daily thermal cycling from desert heat to night cold, the offshore platform cabinet where salt-laden air finds every gap in the enclosure seal.

Honeywell’s Series C I/O hardware is qualified to operate continuously across a wide industrial temperature range, with vibration tolerance that meets IEC 60068-2-6 test profiles. The screw-terminal design on the CC-TUIO31 is rated for the mechanical stress of field wiring — multi-strand copper, ferrule-terminated, torqued to spec — without the contact loosening that plagues spring-clamp alternatives in high-vibration installations.

The PCB conformal coating on production units provides a baseline of protection against condensation and airborne contaminants. In our pre-shipment inspection process, we verify coating integrity visually under UV light and reject any unit showing delamination, cracking, or evidence of prior moisture ingress. What ships to you has been through that filter.

For installations in particularly aggressive environments — offshore, tropical, or high-particulate — we recommend pairing the CC-TUIO31 with a properly rated enclosure and ensuring the cabinet HVAC or purge system is functional before commissioning. The terminal board will hold up; the environment around it needs to be managed.
