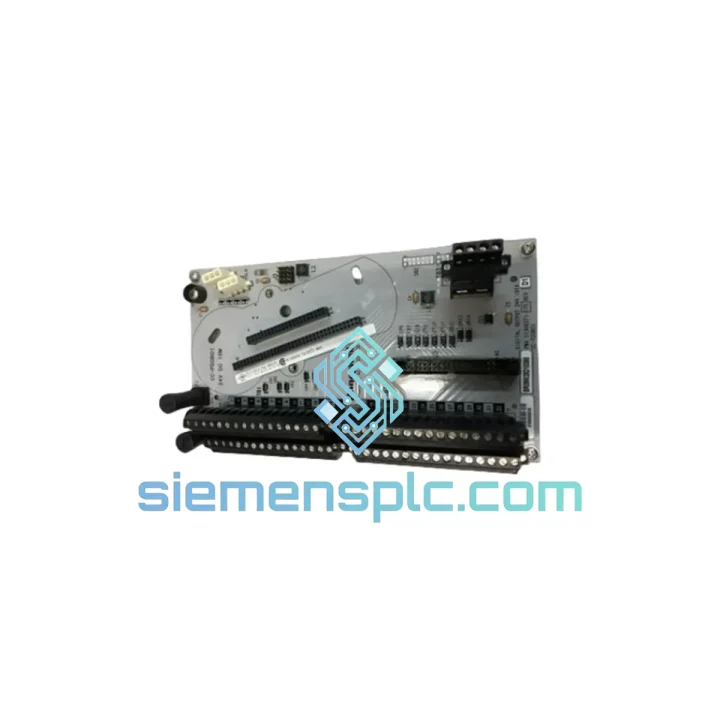

Honeywell DC-TDOB01 DCS Digital Output Module

DC-TDOB01 Output Failure: Every Idle Minute Burns Cash — Ship Today, Restart Tomorrow

Sixteen output channels gone dark. Solenoid valves frozen mid-stroke. Motor starters locked out. Your C300 controller is flagging a module fault and the Experion Station alarm banner has been red for the last forty minutes. You’ve already traced it to the Honeywell DC-TDOB01 — the 16-channel 24 VDC digital output module seated on your CIOM-A carrier. The diagnosis is done. What you need now is a replacement unit, on-site, before the next shift.

We carry the DC-TDOB01 in stock at our Xiamen warehouse. Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority. Most industrial destinations in Southeast Asia receive within 2–3 business days. Europe and the Middle East land in 3–5. The Americas in 4–6. While your procurement team is still routing the PO for approval, we can have the unit packed, labeled, and handed to the courier.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These are the failure modes and swap pitfalls that field engineers actually run into on Experion PKS systems — not the sanitized version from the manual.

Fault Pattern 1 — “Module Not Responding” in Experion Station
This alarm almost always means one of two things: loss of FTE communication to the CIOM-A carrier, or a failed internal ASIC on the DC-TDOB01 itself. Start by reseating the module firmly on the carrier and waiting 30 seconds for the C300 to re-enumerate the I/O link. If the alarm clears, you had a contact issue — inspect the backplane connector for corrosion or debris. If it persists, the module is dead. Order the replacement.

Fault Pattern 2 — Partial Channel Failure (e.g., CH9–CH16 dead, CH1–CH8 active)
This split-bank failure pattern points directly to an internal output driver IC failure. The DC-TDOB01 uses separate driver ICs for the upper and lower channel banks. There is no field repair path — the module must be replaced. Do not waste time swapping field wiring or checking the carrier; the fault is inside the module.

Fault Pattern 3 — All Channels Show OFF Despite ON Command
Before condemning the module, check the 24 VDC field power supply feeding the CIOM-A carrier. A blown fuse on the carrier’s field power rail kills all 16 outputs simultaneously and generates a fault signature that looks identical to a dead module. Measure field power at the carrier terminal block first. If field power is present and correct, then the module is the problem.

Fault Pattern 4 — “Hardware Mismatch” After Swap
This fault appears when the replacement module’s firmware revision is incompatible with the Experion R-release running on the system. Check the firmware label on the replacement unit against the compatibility matrix in the Experion PKS I/O Module Installation Guide (document EP-CIOM-A). If the firmware is behind, and your system is on Experion R500 or later, you can push a firmware update OTA via the C300 without physically removing the module.

Replacement Procedure — What the Manual Doesn’t Emphasize:

• The DC-TDOB01 uses auto-addressing based on its physical slot position on the CIOM-A carrier. Do not move the module to a different slot than the failed unit occupied — the C300 will assign a different I/O link address and your control strategy will lose its channel mapping.
• If the system is not in hot-standby redundancy mode, coordinate with the control room to place all affected control loops in manual before pulling the module. Removing a live DO module without loop isolation can cause uncontrolled valve actuation — a safety event, not just a process upset.
• After seating the replacement, allow 45–60 seconds for the C300 to re-enumerate the I/O link and re-establish channel communication. Do not force a controller restart unless the module fails to come online after 2 minutes.
• Verify per-channel diagnostics in Experion Station before returning any loop to automatic. All 16 channels must report “Good” status. Manually actuate at least 2 output channels and confirm field response before signing off on the swap.
• Log the failed module’s serial number and firmware revision in your maintenance management system. Honeywell tracks field failure data by firmware version — this information is useful if you’re opening a TAC case.

Reliability in Harsh Conditions

The DC-TDOB01 was not engineered for a climate-controlled server room. It was built for the environments where process automation actually operates — offshore platforms with salt-laden marine air, desert refineries where ambient temperatures spike past 50°C, and chemical plants where humidity never drops below 80% RH.

Honeywell’s Series C I/O modules are qualified to IEC 60068 environmental stress standards. The DC-TDOB01 operates continuously from 0°C to 60°C with no power derating, and survives storage from -40°C to 85°C. Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal sweep) and IEC 60068-2-64 (random broadband), covering the frequency profiles generated by rotating machinery — compressors, turbines, and pump skids running 24/7.

The module’s PCB carries a conformal coating that acts as a barrier against condensation, airborne hydrocarbons, and corrosive gases. In installations where humidity cycling is severe — coastal LNG terminals, for example — this coating is the difference between a module that runs for eight years and one that fails in eighteen months from dendritic growth on the output driver traces.

EMC immunity meets IEC 61000-4 series requirements: 4 kV contact discharge (ESD), 2 kV fast transient burst, and 2 kV surge immunity. In substations and switchgear rooms where ground loops and switching transients are a daily reality, this immunity margin is not a marketing claim — it is what prevents your output channels from latching in the wrong state during a bus fault event or a nearby breaker operation.

The CIOM-A backplane connector uses gold-plated contacts rated for 200+ insertion cycles. That matters in facilities that perform annual preventive maintenance swaps or that hot-swap modules during scheduled turnarounds. Connector wear is a real failure mode on older I/O platforms; it is not a concern here.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export gateways with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. Here is how an emergency order moves from our warehouse to your site:

• Order confirmed before 14:00 CST: Same-day packing and courier handoff. Tracking number issued within 4 hours of dispatch.
• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express.
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 3–4 business days via FedEx International Priority.
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days via DHL Express Worldwide.
• Americas (USA, Canada, Brazil, Mexico): 4–6 business days via FedEx International Priority.
• South Asia & Oceania (India, Australia, New Zealand): 3–5 business days via DHL Express.

Every shipment includes a commercial invoice, packing list, and certificate of conformance. For destinations requiring HS code pre-classification or import permits for industrial automation components, our logistics team handles the documentation — you focus on getting your plant back online. All module shipments use ESD-safe anti-static bags inside moisture-barrier packaging with desiccant. For orders of 3 or more units, foam-lined flight cases are available on request at no additional charge.

We have shipped DC-TDOB01 units to refineries in Oman, petrochemical complexes in South Korea, power generation facilities in India, and water treatment plants in Australia. The process is identical every time: fast, fully documented, and traceable from our warehouse door to your receiving dock.
