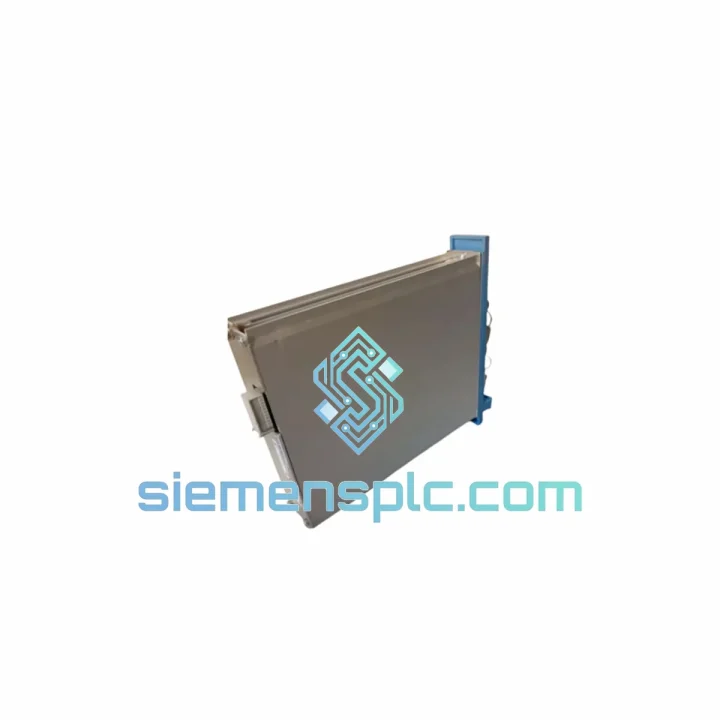

Honeywell FC-BKMM-0001 Safety System Module – FSC Safety Manager

Honeywell FC-BKMM-0001: Integrated Battery Backup & Key Switch Security Module for FSC Safety Manager Platforms

The Honeywell FC-BKMM-0001 is a dedicated Battery and Key Switch Module engineered for deployment within Honeywell’s Fail Safe Controller (FSC) and Safety Manager (SM) distributed control architectures. Its dual function — sustained DC power delivery during mains interruption and hardware-enforced access control via a physical key switch — positions it as a critical node in any SIL 2/3-rated safety instrumented system (SIS). Unlike software-based access restrictions, the key switch mechanism operates at the hardware layer, providing a deterministic lockout that cannot be bypassed through firmware exploits or operator interface manipulation.

In a typical FSC chassis configuration, the FC-BKMM-0001 occupies a dedicated slot adjacent to the power supply rail. Its internal NiMH or sealed lead-acid battery cell (depending on hardware revision) maintains regulated DC bus voltage within ±2% tolerance for a defined hold-up period, allowing the CPU and I/O modules to complete their safe-state transition sequences without data corruption or mid-cycle output toggling. This is particularly significant in emergency shutdown (ESD) and burner management system (BMS) applications where a partial power loss during a trip sequence could result in an indeterminate output state.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-BKMM-0001 integrates two functionally independent subsystems on a single PCB substrate, each with its own signal conditioning and isolation stage.

Battery Management Circuit: The onboard charge controller monitors cell voltage via a precision ADC with a sampling interval of approximately 100 ms. When mains power is present, the circuit maintains a float-charge regime to prevent sulfation and capacity degradation. On mains loss detection — triggered by a voltage threshold comparator with a response latency under 5 ms — the module switches the DC bus to battery supply through a low-dropout MOSFET switch, avoiding the voltage dip that would otherwise cause a CPU watchdog reset. The battery health status is continuously reported to the FSC backplane via a dedicated diagnostic register, accessible through the Safety Builder configuration tool without interrupting the running process.

Key Switch Interface Logic: The three-position key switch feeds into a hardware decode matrix that drives discrete signal lines on the FSC backplane. These lines are read by the CPU module’s I/O arbiter at every scan cycle. The critical design point is that the key switch state is not mediated by any software layer — it is a direct electrical assertion. This means that even if the CPU firmware enters an undefined state, the key switch position remains physically enforced. In STOP position, the CPU halts all output writes and holds the last safe state; in PROGRAM mode, the configuration port is enabled and write access to the application program memory is granted.

EMC Design: The module’s PCB layout employs a split ground plane with ferrite bead isolation between the battery circuit and the digital logic section, reducing conducted emissions on the backplane power rail. The key switch wiring interface includes RC snubber networks to suppress contact bounce transients, which could otherwise generate spurious state transitions on the backplane signal lines. The module meets EN 61000-4-4 (EFT/Burst) Level 3 and EN 61000-4-5 (Surge) Level 2 immunity requirements.

System Integration Benefits

• Deterministic Safe-State Transition: Battery hold-up ensures the CPU completes its full safe-state output sequence — typically 200–500 ms — without interruption, eliminating the risk of indeterminate output states during power transients.
• Zero-Software Access Control: Hardware key switch enforcement removes the attack surface associated with software-based operator access restrictions, a requirement in IEC 62443 cybersecurity frameworks for safety systems.
• Continuous Battery Diagnostics: Real-time cell voltage and charge state reporting to the FSC diagnostic bus allows predictive maintenance scheduling without requiring a system shutdown or module extraction.
• Backplane Bus Compatibility: The module communicates over the FSC standard backplane protocol, requiring no additional wiring or gateway hardware for integration into existing FSC chassis configurations.
• Scan-Cycle Synchronization: Key switch state is sampled synchronously with the CPU scan cycle, ensuring that mode transitions are processed within a single scan period (typically 10–50 ms depending on application size), maintaining system determinism.
• Reduced Validation Burden: As an OEM-original module, the FC-BKMM-0001 carries Honeywell’s factory type approval, meaning its installation does not trigger a full SIL re-validation under IEC 61508 change management procedures — a significant cost and schedule advantage over third-party alternatives.
• Fault Isolation Architecture: The battery circuit and key switch logic are electrically isolated from each other and from the backplane signal ground, preventing a fault in one subsystem from propagating to the other or corrupting backplane communications.
• Long Service Life: The float-charge management algorithm extends battery service life beyond the typical 3–5 year replacement interval for unmanaged cells, reducing lifecycle maintenance costs in remote or offshore installations.

Quality Assurance & Global Logistics

Every FC-BKMM-0001 unit supplied by siemensplc.com is sourced through verified channels with full component traceability. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of PCB, connector pins, and housing for mechanical damage; functional verification of key switch position decoding; and battery cell voltage check to confirm charge retention within specification. Units are packaged in anti-static ESD bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A certificate of conformance and, where available, original Honeywell factory test documentation accompany each shipment.

Logistics operations are based in Xiamen, China, with established freight partnerships covering DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10) — is prepared for every international shipment. For time-critical plant maintenance scenarios, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Typical transit times: Southeast Asia 2–4 days, Europe 3–5 days, Americas 4–7 days. All shipments are fully insured and trackable end-to-end.
