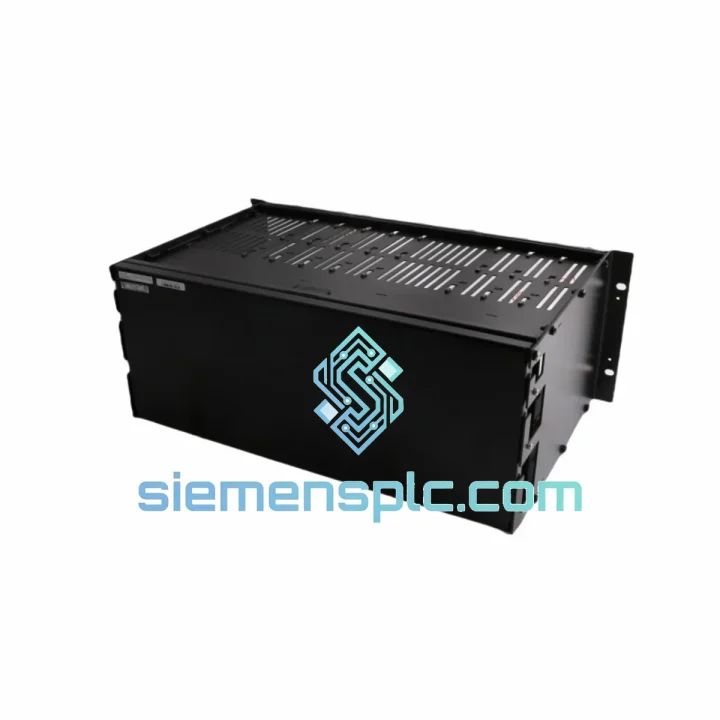

Honeywell FC-CPCHAS-0002 PLC Rack Chassis – Experion PKS C300 Series

FC-CPCHAS-0002: Structural Backplane Chassis for Honeywell Experion PKS C300 Controller Architecture

The Honeywell FC-CPCHAS-0002 is a multi-slot rack chassis engineered as the physical and electrical backbone of the Experion PKS distributed control system. Within a C300-based control loop, this chassis performs three non-negotiable functions: it provides the mechanical housing for controller and I/O interface modules, delivers the backplane bus interconnect for inter-module communication, and distributes regulated DC power from the system power supply to each occupied slot. Without a structurally and electrically sound chassis, the deterministic scan cycle of the C300 controller cannot be maintained — making the FC-CPCHAS-0002 a zero-tolerance component in any Experion PKS installation.

In continuous process industries — refining, petrochemical, pharmaceutical batch, and power generation — the chassis is not a passive enclosure. It is an active signal-routing substrate. The backplane traces carry both the high-speed serial communication bus between the C300 and its I/O Link Interface (IOLI) modules and the DC power rails that sustain module operation during transient load events. The FC-CPCHAS-0002 is designed to maintain signal integrity across this bus under the vibration, thermal cycling, and EMI conditions typical of industrial cabinet environments.

Procurement engineers replacing failed chassis in live Experion PKS installations or expanding existing control cabinets will find the FC-CPCHAS-0002 to be a direct OEM-compatible solution. siemensplc.com maintains verified stock with full part-number traceability, supporting both emergency replacement scenarios and planned capital expansion projects.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-CPCHAS-0002 chassis is a passive backplane design — meaning it contains no active processing components of its own. This architecture is a deliberate engineering choice: by eliminating active silicon from the chassis substrate, Honeywell removes a failure mode that would otherwise affect the entire control node simultaneously. The backplane’s sole active function is signal routing, and its reliability is therefore governed by the mechanical and electrical quality of its PCB traces, edge connectors, and power distribution planes.

Backplane Bus Signal Integrity: The Experion PKS backplane bus operates as a proprietary high-speed serial link between the C300 controller and each IOLI module. The PCB trace geometry on the FC-CPCHAS-0002 is impedance-controlled to minimize reflections at the connector interfaces. In high-vibration environments — such as compressor skids or turbine control panels — the rigid chassis frame prevents the micro-movement of module edge connectors that would otherwise introduce intermittent contact resistance and corrupt bus transactions.

EMC Design Considerations: The chassis frame provides a continuous ground plane that serves as the reference for all backplane signal traces. This ground continuity is critical for common-mode noise rejection on the serial bus. In environments with high-frequency switching noise from variable-frequency drives (VFDs) or power converters operating in the same cabinet, the chassis ground plane attenuates capacitively coupled interference before it can affect the C300’s communication timing. The chassis also provides the mechanical bonding point for cabinet-level EMC shielding, ensuring the entire control node meets IEC 61000-series immunity requirements.

Power Rail Architecture: DC power enters the chassis from the FC-PSU module and is distributed across isolated power planes for logic supply and I/O supply rails. This separation prevents load transients on the I/O side — caused by field device switching — from propagating into the controller logic supply. The result is a stable Vcc for the C300’s processor and memory subsystems throughout the control scan cycle.

Thermal Management: The chassis frame acts as a passive heat spreader for modules that do not have dedicated heatsinks. The aluminum or steel construction conducts heat from module mounting surfaces to the chassis rails, which interface with the cabinet’s forced-air or convection cooling path. This passive thermal coupling extends module operating life by reducing junction temperatures during sustained high-load operation.

System Integration Benefits

• Direct OEM Slot Compatibility: The FC-CPCHAS-0002 accepts C300 controller modules and IOLI cards without mechanical adaptation, firmware modification, or re-parameterization of the Experion PKS configuration database.
• Deterministic Scan Cycle Preservation: The low-latency backplane bus ensures that the C300’s control scan — typically 100 ms to 500 ms depending on loop count — is not degraded by inter-module communication delays introduced by chassis-level signal integrity issues.
• Scalable I/O Expansion: Additional IOLI modules can be populated into vacant chassis slots to expand field I/O capacity without replacing the controller or modifying the cabinet power supply, provided slot assignment rules are observed.
• Redundant Power Feed Support: Where chassis configuration permits dual power supply slots, redundant FC-PSU modules can be installed to eliminate the power supply as a single point of failure in the control node.
• Passive Backplane MTBF Advantage: The absence of active components on the backplane substrate yields an inherently high mean time between failures (MTBF) for the chassis itself, concentrating reliability risk in the replaceable module population rather than the structural chassis.
• Diagnostic Transparency: The Experion PKS system continuously monitors module health via the backplane bus. A structurally sound FC-CPCHAS-0002 ensures that module-level fault codes and diagnostic alarms are transmitted to the Experion Station without bus errors masking the root cause of a process upset.
• Cabinet Space Efficiency: The multi-slot chassis consolidates controller and I/O interface modules into a single rack unit, reducing the number of discrete enclosures required for a given I/O count and simplifying cable management within the control cabinet.
• Long-term Spare Parts Availability: As a passive structural component, the FC-CPCHAS-0002 has a service life that typically exceeds the active modules it houses. Stocking one spare chassis per control node eliminates the longest lead-time item in a chassis failure recovery scenario.
• Simplified Commissioning: Because the chassis is a passive backplane, commissioning is limited to mechanical installation, power supply connection, and module seating — no chassis-level firmware download or configuration is required before the C300 can execute its control program.
• Cross-revision Compatibility: The FC-CPCHAS-0002 is compatible across multiple Experion PKS software revisions (R400 and later), allowing the same chassis to remain in service through software upgrades without hardware replacement.
