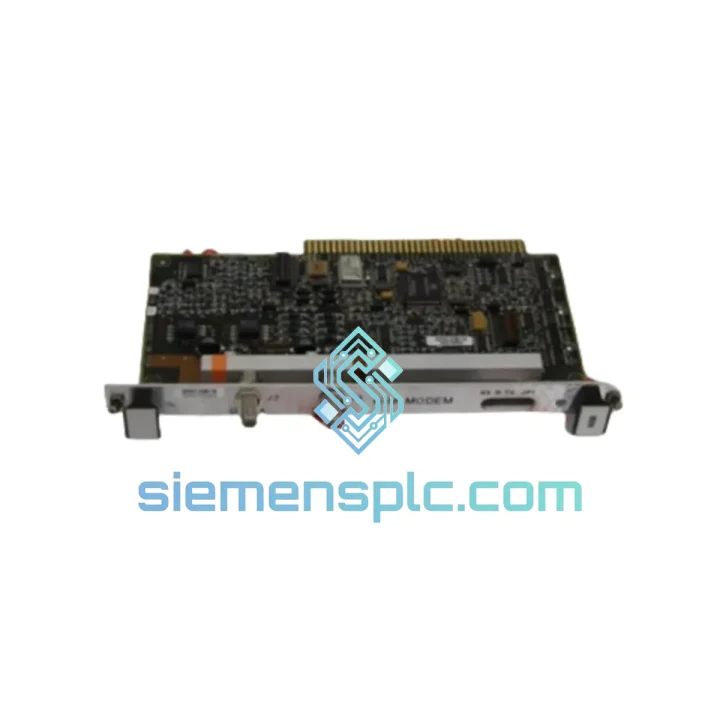

Honeywell FC-DO-1224 Digital Output Module

FC-DO-1224 Down? Every Minute of Downtime Costs You — We Ship Today

A failed digital output module in your Honeywell Safety Manager FS system doesn’t just trigger an alarm — it locks your process in safe state, halts production, and starts burning cash at a rate your management team will not forget. The FC-DO-1224 is the 24VDC digital output card that drives your solenoid valves, relay coils, and motor starters. When it fails, nothing moves. We stock it. We ship it today from Xiamen. That’s the only conversation that matters right now.

Our warehouse carries verified, 100% original Honeywell FC-DO-1224 modules — not refurbished, not remarked, not pulled from decommissioned panels without traceability. Every unit ships with a certificate of conformance and passes incoming functional verification before it leaves our facility. DHL Express and FedEx International Priority are our default carriers. Most destinations in Southeast Asia, the Middle East, and Europe receive delivery within 48–72 hours of dispatch.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for FC-DO-1224:

• Fault Code DO_DIAG_FAIL or CH_SHORT: Channel-level short circuit detected. Isolate the field wiring first — disconnect the field terminal block and re-power. If the fault clears, the problem is in the field cable or actuator coil, not the module. If the fault persists with terminals disconnected, the output driver IC on the module has failed. Replace the card.
• Fault Code OPEN_LOAD on multiple channels simultaneously: Usually indicates a blown fuse on the module’s 24VDC supply rail or a failed field power supply feeding the output commons. Check the module’s internal fuse (if accessible) and verify 24VDC at the power terminal before condemning the card.
• Module not recognized after insertion (NO_COMM or SLOT_FAIL): This is almost always a backplane connector seating issue or a firmware mismatch. Reseat the module firmly — the Safety Manager FS chassis uses a guided card-edge connector that requires deliberate pressure. If the fault persists, check the controller firmware version against the module’s hardware revision. Mismatched revisions will prevent enumeration.
• Spurious output toggling (outputs cycling without logic command): Ground loop between the field device common and the module output common. Verify that the 24VDC output common (0V) is bonded at a single point. Multiple ground references across long cable runs introduce noise that the output driver interprets as a command edge.

Step-by-step replacement procedure:

1. Confirm the replacement FC-DO-1224 hardware revision matches the installed unit. Check the label on the module faceplate — revision is printed as HW REV x.x. Mismatched hardware revisions between redundant slots will generate a REDUNDANCY_MISMATCH alarm.
2. In the Safety Manager engineering station, navigate to the I/O configuration and note the slot address and channel assignments for the failed module. Screenshot or print this before touching hardware.
3. Place the safety function in manual bypass or inhibit mode per your site MOC procedure. Do not hot-swap a DO module in a live safety loop without authorization — the output will de-energize during the swap, which may trip the process.
4. Disconnect the field terminal block from the module. Label the terminal block position if it is not keyed.
5. Extract the failed module using the ejector levers. Insert the replacement card until the backplane connector seats fully — you will feel a positive click.
6. Reconnect the field terminal block. Verify 24VDC supply at the module power terminals before re-enabling outputs.
7. In the engineering station, perform a module download if required by the firmware version. Some FS revisions auto-configure from the controller database; others require an explicit write. Confirm with your site’s Safety Manager version documentation.
8. Verify all channel diagnostics are clear in the controller’s I/O status display. Remove bypass/inhibit and return the safety function to automatic mode.
9. Perform a functional proof test on at least one output channel per your site’s SIS maintenance procedure before signing off.

Configuration notes: The FC-DO-1224 does not use physical DIP switches for address assignment — slot addressing is handled automatically by the Safety Manager FS chassis backplane. There is no manual address configuration required. However, if you are replacing a module in a redundant pair, both modules must carry identical hardware and firmware revisions to maintain the redundancy diagnostic. Verify this before installation.

Reliability in Harsh Conditions

The FC-DO-1224 was designed for process industry environments where “harsh” is the baseline, not the exception. Honeywell’s Safety Manager FS platform is deployed in offshore platforms in the North Sea, petrochemical complexes in the Middle East, and LNG terminals in Southeast Asia — environments that combine salt-laden humidity, continuous vibration from rotating machinery, and ambient temperatures that swing 40°C between day and night.

The module’s output driver circuitry is conformal-coated to resist moisture ingress and corrosive atmospheres. The backplane connector uses gold-plated contacts rated for thousands of insertion cycles without measurable contact resistance degradation. The card-edge PCB is manufactured to IPC Class 3 standards — the same standard applied to aerospace and military electronics — which mandates tighter tolerances on solder joint integrity, laminate quality, and component placement than commercial-grade electronics.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges generated by compressors, pumps, and turbines in typical process plant installations. The module will not develop intermittent faults from mechanical vibration under normal operating conditions — a critical requirement for safety systems where a spurious trip caused by a loose connection is as costly as a genuine process fault.

Thermal cycling performance is validated across the full 0°C to +60°C operating range with no derating of output current capacity. In practice, most control room installations maintain 20–30°C, giving the module substantial thermal headroom even in poorly air-conditioned marshalling cabinets in tropical climates.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-dense export hubs in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services operating daily flights to major global hubs.

Standard dispatch timeline: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day. Orders confirmed after 14:00 CST ship the following morning. We do not batch shipments — each order is processed individually to eliminate queuing delays.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• Australia / New Zealand: 2–3 business days via DHL Express
• South America (Brazil, Chile, Colombia): 4–6 business days via FedEx or DHL

All shipments include a commercial invoice, packing list, and certificate of conformance. For customers in countries requiring import permits or specific customs documentation for industrial automation components, contact us before ordering — we have experience preparing the correct documentation for customs clearance in over 40 countries and will not let paperwork be the reason your module sits in a bonded warehouse while your plant is down.

Real-time tracking numbers are provided within 2 hours of carrier pickup. For shutdown and turnaround scenarios where delivery confirmation is required before the maintenance window opens, we can coordinate with the carrier for time-definite delivery commitments on request.
