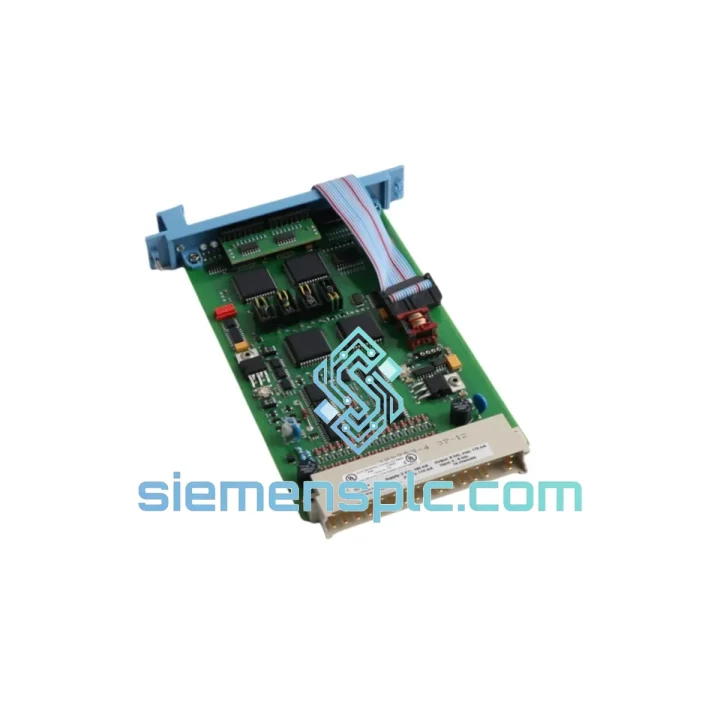

Honeywell FC-DO-1624 – 16-Channel 24 VDC Digital Output Module for Safety Manager SC Safety Instrumented Systems

The Honeywell FC-DO-1624 is a 16-channel, 24 VDC discrete output module engineered for deployment within the Honeywell Safety Manager SC (SMSC) Safety Instrumented System platform. Its primary function is to translate safety-logic solver commands into hardwired field-level actuation signals, driving solenoid valves, relay coils, motor starters, and other binary-actuated final elements across SIL 2 and SIL 3 safety loops. The module occupies a single slot in the SMSC I/O chassis and communicates with the safety CPU via the proprietary high-speed backplane bus, achieving deterministic scan-cycle synchronization with sub-millisecond latency.

Each output channel is individually fused and monitored. The on-board diagnostic engine continuously checks for open-load conditions, short-circuit faults, and supply-rail deviations, reporting channel-level fault codes to the Safety Builder engineering workstation in real time. This granular fault visibility eliminates the need for external loop testers during routine proof-test intervals, directly reducing proof-test time and associated process downtime. The module’s output driver stage employs solid-state switching with no mechanical contacts, yielding a rated electrical endurance that far exceeds relay-based alternatives in high-cycle ESD and BMS applications.

Optocoupler isolation barriers separate the field-side 24 VDC bus from the backplane logic domain. The isolation withstand voltage is rated at 500 V DC between field and logic commons, providing adequate protection against ground-loop currents and transient overvoltages originating from inductive field loads. The module’s PCB layout follows IEC 61000-4 EMC design guidelines: signal traces are routed with controlled impedance, decoupling capacitors are placed at each driver stage, and the chassis ground connection is made through a low-impedance bond to the SMSC rack frame, suppressing conducted and radiated interference in environments with variable-frequency drives and high-power switchgear in proximity.

The FC-DO-1624 is certified to IEC 61508 SIL 2 in simplex configuration and supports SIL 3 architectures when deployed in 1oo2D (one-out-of-two with diagnostics) or 2oo3 voting arrangements at the system level. TÜV Rheinland has independently assessed the module’s hardware fault tolerance (HFT) and safe failure fraction (SFF) metrics, confirming compliance with IEC 61511 requirements for process-sector SIS applications. These certifications are maintained on the unmodified, factory-original hardware; any field repair or component substitution voids the SIL certification basis.

siemensplc.com supplies the FC-DO-1624 as a genuine, unmodified Honeywell original part. Each unit is sourced through traceable supply channels, inspected against Honeywell’s published hardware revision markings, and dispatched from our Xiamen, China logistics hub with a 12-month warranty against manufacturing defects. Stock is maintained for immediate dispatch to support MRO, plant turnaround, and emergency shutdown system upgrade projects globally.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-DO-1624’s output driver architecture is built around a per-channel solid-state switch topology rather than a relay matrix. Each channel’s driver transistor is gated by an isolated logic signal derived from the backplane command register. The gate drive circuit incorporates a slew-rate limiter to suppress inductive kickback transients when de-energizing solenoid coils — a common source of conducted EMI in ESD valve manifolds. The clamp voltage is set at approximately 40 V, well above the 24 VDC supply rail but below the breakdown threshold of field wiring insulation rated to 300 V.

The diagnostic subsystem operates on a separate microcontroller that is independent of the main output command path. This architecture ensures that a fault in the diagnostic processor cannot inadvertently command an output state change — a critical requirement for SIL-rated output modules. The diagnostic controller samples each channel’s load current via a precision shunt resistor and compares the measured value against expected thresholds stored in non-volatile memory. Deviations beyond ±15% of the nominal load current trigger a channel-level fault flag, which is propagated to the SMSC CPU over the backplane status register within one scan cycle.

EMC hardening is achieved through a multi-layer PCB stackup with dedicated ground planes separating the field-side and logic-side copper pours. Ferrite beads are placed in series with the 24 VDC field supply input to attenuate high-frequency conducted noise from the field bus. The module’s front-panel connector uses a keyed, vibration-resistant design with gold-plated contacts rated for 500 mating cycles, maintaining contact resistance below 10 mΩ throughout the service life. The chassis bonding lug provides a direct low-impedance path to the rack frame, ensuring that shield currents from field cables are diverted to the plant earth rather than flowing through the logic ground plane.

Redundancy arbitration for 1oo2D configurations is handled at the SMSC system level, not within the module itself. The FC-DO-1624 presents a standard backplane interface; the SMSC CPU’s redundancy manager compares output commands from both solver channels before asserting the field output, implementing the diagnostic voting logic in firmware. This separation of concerns — output driving in hardware, voting logic in firmware — allows the SIL 3 architecture to be validated independently at each layer, simplifying the overall safety case documentation.

System Integration Benefits

• Deterministic scan-cycle alignment: The module’s backplane interface synchronizes output updates to the SMSC CPU’s safety scan cycle, eliminating jitter in output response time and ensuring that safety function response times (SIL-required) are met consistently across all 16 channels.
• Channel-level diagnostic transparency: Each channel reports its operational status — energized, de-energized, open-load, or short-circuit — to the Safety Builder HMI, enabling maintenance teams to isolate faults to a specific field terminal without loop tracing.
• Hot-swap capability: The module can be inserted and removed from the SMSC chassis under power without interrupting adjacent I/O channels, reducing planned maintenance windows and supporting online module replacement during partial plant operation.
• Reduced proof-test burden: Integrated open-load and short-circuit diagnostics satisfy a portion of the IEC 61511 proof-test requirements, allowing extended proof-test intervals compared to non-diagnostic output modules and reducing the frequency of intrusive field testing.
• Scalable SIL architecture: A single module type supports both SIL 2 simplex and SIL 3 redundant configurations. System architects can upgrade the safety integrity level by adding a second FC-DO-1624 in a 1oo2D arrangement without changing field wiring or module hardware.
• Inductive load compatibility: The integrated slew-rate control and clamp circuit handle inductive loads — solenoid valves, relay coils — without requiring external flyback diodes on each channel, simplifying field wiring design and reducing terminal block count.
• Unified engineering environment: Configuration, diagnostics, and proof-test records for the FC-DO-1624 are managed entirely within Honeywell Safety Builder, eliminating the need for separate module configuration tools and maintaining a single audit trail for functional safety management.
• Long-term platform continuity: As part of the Safety Manager SC product family, the FC-DO-1624 benefits from Honeywell’s published long-term support commitment, with spare parts availability and firmware compatibility maintained across the SMSC platform lifecycle.

Quality Assurance & Global Logistics

Every FC-DO-1624 unit supplied by siemensplc.com is a genuine Honeywell original part, sourced through traceable supply channels with full documentation. Our pre-shipment inspection protocol covers label and firmware revision verification, connector and housing integrity check, and ESD-safe repackaging in ANSI/ESD S20.20-compliant anti-static materials. A Certificate of Conformance (CoC) is available upon request for each shipment.

Logistics operations are based in Xiamen, China, with established accounts with DHL Express, FedEx International Priority, and UPS Worldwide Express for time-critical MRO shipments. Standard air freight transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Sea freight consolidation is available for volume procurement orders. Full export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for each shipment to support customs clearance at the destination port. The 12-month warranty covers manufacturing defects; units are replaced or credited at our discretion following fault verification.
