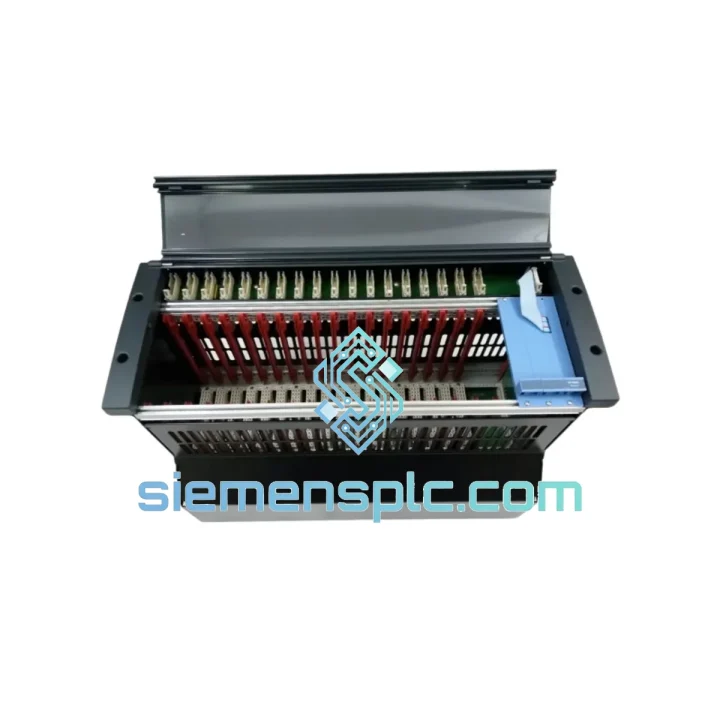

Honeywell FC-IOCHAS-0001S I/O Chassis

FC-IOCHAS-0001S: Every Hour of Downtime Costs You — We Ship Today

Your Safety Manager cabinet is down. The non-redundant I/O chassis has failed, and your ESD loop is broken. Production is halted. Every minute the line sits idle, the financial bleeding accelerates — lost throughput, idle crews, regulatory exposure. You don’t need a sales pitch. You need the Honeywell FC-IOCHAS-0001S in your hands, bench-tested, and back in the rack before the next shift.

We stock the FC-IOCHAS-0001S in Xiamen and ship globally via DHL Express and FedEx Priority. Order confirmed before 4 PM CST ships same day. No minimum order. No bureaucratic delays. Just the part, the paperwork, and the tracking number.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Safety Manager platforms, these are the failure patterns and replacement pitfalls that actually matter on the floor:

Common Failure Indicators

• SM Fault Code 0x2A / Chassis Communication Loss: The controller loses backplane communication with one or more I/O slots. Before condemning the chassis, rule out the I/O module itself — seat a known-good module in slot 1 and check if the fault clears. If it persists across all slots, the backplane bus is the culprit.
• Intermittent I/O Faults Under Vibration: Connector fatigue on the backplane edge connectors is a known wear mode in high-vibration environments (compressor decks, offshore platforms). Wiggle-test each module while monitoring the SM diagnostic screen. Intermittent faults that correlate with mechanical movement confirm chassis replacement is needed.
• Power Rail Sag: Measure the 5 VDC and 24 VDC rails on the chassis power pins with a calibrated multimeter. Voltage below spec (±5%) under load indicates internal regulator degradation — replace the chassis, not just the PSU.
• Slot-Specific Failures: If only one slot is faulting and the module tests good in another chassis, the slot’s backplane connector has failed. The FC-IOCHAS-0001S is not field-repairable at slot level — full chassis swap is required.

Replacement Procedure — Key Steps

• Step 1 — Inhibit the Safety Function: Before any hardware work, place the affected SIF in bypass via the SM workstation. Document the bypass in your MOC system. Never pull a live chassis without confirmed bypass — you will trigger a spurious trip.
• Step 2 — Record Module Positions: Photograph the chassis with all modules seated. The FC-IOCHAS-0001S does not use DIP switches for slot addressing — the Safety Manager controller assigns I/O addresses based on physical slot position and the system configuration database. Modules must be re-inserted in the exact same slot order on the replacement chassis.
• Step 3 — Power Down the Chassis: Isolate the chassis power feed at the cabinet PDU. Confirm zero voltage on the chassis power pins before proceeding.
• Step 4 — Transfer Modules Sequentially: Move modules one at a time from old chassis to new, maintaining slot order. Do not mix modules between different chassis generations without verifying firmware compatibility via the SM Hardware Compatibility Matrix.
• Step 5 — Firmware Verification: After power-up, the SM controller will perform a chassis discovery scan. Check the SM diagnostic log for any firmware mismatch warnings. If the replacement chassis has a different hardware revision, a firmware update via the SM Engineering Station may be required before the system accepts the chassis.
• Step 6 — Functional Test Before Bypass Removal: Verify all I/O channels report correctly in the SM I/O status screen. Perform a point-by-point check against your I/O schedule. Only remove the SIF bypass after all channels are confirmed healthy and the safety engineer has signed off.

Configuration Notes

• The FC-IOCHAS-0001S does not require manual address configuration (no rotary switches, no DIP banks). Slot addressing is automatic via the SM system bus — but the physical slot position is fixed in the configuration database. Swapping module positions without updating the SM configuration will result in I/O mapping errors.
• If replacing a chassis that has been in service for more than 5 years, inspect the replacement unit’s hardware revision label and cross-reference against Honeywell Service Bulletin SM-SB-2019-04 for known backplane revision compatibility requirements.

Reliability in Harsh Conditions

The FC-IOCHAS-0001S is not office equipment. It was designed from the ground up for the environments where safety systems actually live — and where failures have real consequences.

The chassis backplane is constructed with industrial-grade FR4 PCB material rated for continuous operation across the full Safety Manager temperature envelope. In offshore and tropical refinery environments where ambient cabinet temperatures routinely exceed 45°C, the chassis maintains signal integrity without derating. The edge connectors use gold-plated contacts to resist oxidation in humid, salt-laden atmospheres — a critical detail in coastal petrochemical facilities where standard tin contacts fail within 18 months.

Vibration resistance is validated to IEC 60068-2-6 test profiles, covering the 5–150 Hz sweep range at 2g acceleration that characterises compressor hall and offshore deck installations. The chassis mounting system uses captive hardware that prevents loosening under sustained vibration — a failure mode that has caused more than one spurious trip on competitor platforms.

Ingress protection at the cabinet level is the system designer’s responsibility, but the FC-IOCHAS-0001S’s conformal-coated PCB provides a secondary barrier against condensation and airborne contaminants. In chemical plant environments where hydrogen sulfide or chlorine vapour is present in trace concentrations, this coating is the difference between a 10-year service life and a 2-year replacement cycle.

Every unit we ship has been inspected for physical integrity, connector condition, and PCB surface quality. Units showing any evidence of prior thermal stress, corrosion, or mechanical damage are rejected before they reach your door.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for urgent industrial requirements. Here is exactly how your order moves from our shelf to your site:

• Order Confirmation → Pick & Pack (0–2 hours): Once payment or PO is confirmed, the unit is pulled from bonded stock, inspected, and packed in anti-static foam with OEM-style protective packaging. A Certificate of Conformance and packing list are generated simultaneously.
• Export Documentation (2–4 hours): Commercial invoice, packing list, and HS 853710 export declaration are prepared. For destinations requiring CITES, CE, or specific import permits, our logistics team flags requirements at order confirmation — not at the border.
• Carrier Handoff — DHL Express / FedEx Priority: We use DHL Express Worldwide and FedEx International Priority as primary carriers. Both offer door-to-door transit times of 2–5 business days to Europe, Middle East, Southeast Asia, and the Americas. For truly critical situations, DHL Express 9:00 and FedEx First Overnight International are available on request.
• Tracking & Proactive Updates: A tracking number is sent to your registered email within 1 hour of carrier pickup. For orders flagged as urgent, our logistics coordinator provides proactive status updates at each major transit hub.
• Customs Clearance Support: Our team provides pre-clearance documentation packages for major import markets. For customers in the EU, GCC, and ASEAN regions, we have established relationships with local customs brokers who can expedite clearance for industrial automation components.
• Delivery Confirmation: Proof of delivery is archived and available on request for your procurement records.

We have shipped Safety Manager components to refineries in Saudi Arabia, chemical plants in Germany, offshore platforms in Malaysia, and power stations in Australia — all on emergency timelines. The logistics infrastructure is proven. When you need it fast, we deliver.
