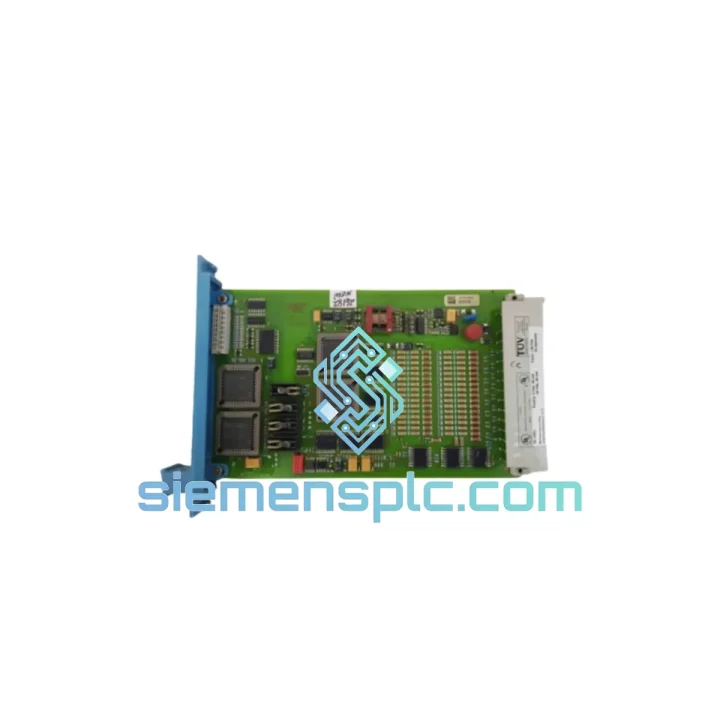

Honeywell FC-SAI-1620M V1.1 — 16-Channel SIL 2 Analog Input Module for Safety Manager Systems

The Honeywell FC-SAI-1620M V1.1 is a 16-channel, 4–20 mA analog input module engineered for deployment within the Honeywell Safety Manager (SM) safety instrumented system platform. Certified to SIL 2 per IEC 61508, this module occupies a critical position in the safety loop architecture: it is the primary signal acquisition boundary between field transmitters and the safety logic solver. Every process variable — pressure, temperature, flow, level — that feeds a safety instrumented function (SIF) passes through this module’s input conditioning circuitry before the CPU executes its safety logic. The integrity of that signal path is non-negotiable in high-hazard environments.

Deployed across oil & gas upstream and downstream facilities, petrochemical complexes, power generation plants, and offshore platforms, the FC-SAI-1620M V1.1 has accumulated a substantial field record in environments where a single missed signal can trigger a process shutdown or, worse, a safety system failure to respond. Its design reflects Honeywell’s approach to deterministic signal processing: fixed scan cycle, hardware-enforced channel isolation, and on-module diagnostics that report fault status to the SM controller without relying on application-layer polling.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: Each of the 16 input channels is galvanically isolated from the module’s internal logic bus via dedicated optocouplers. This isolation barrier serves two functions: it prevents ground loop currents from corrupting the ADC reference voltage, and it limits the propagation of field-side transients — induced by cable runs through high-EMI environments such as motor control centers or variable frequency drive (VFD) enclosures — from reaching the backplane. The isolation voltage rating exceeds 500 V DC channel-to-channel, which satisfies the requirements of IEC 61326-3-1 for safety-related instrumentation in industrial environments.

16-Bit ADC Signal Chain: The analog front end uses a successive approximation register (SAR) ADC architecture operating at 16-bit resolution. At a 4–20 mA span, this yields a theoretical resolution of approximately 0.24 µA per count — well below the ±0.1% full-scale accuracy specification. Anti-aliasing filters ahead of each ADC input attenuate high-frequency noise components that would otherwise alias into the measurement band during sampling. The filter cutoff is set conservatively relative to the SM CPU’s scan rate, ensuring that no aliased artifact can produce a false process value that exceeds the module’s stated accuracy.

HART Pass-Through Logic: The FC-SAI-1620M V1.1 implements HART 5 and HART 7 protocol pass-through on each channel without interrupting the primary 4–20 mA measurement. The HART modem is implemented in firmware on the module’s local processor, which demodulates the FSK signal superimposed on the 4–20 mA loop and forwards device variable data and diagnostic status to the SM CPU via the backplane bus. This architecture allows field device diagnostics — including sensor degradation flags, loop integrity checks, and device-specific process variables — to be surfaced in the Experion PKS operator station without requiring a separate HART multiplexer infrastructure.

EMC Design and Conducted Immunity: The module’s PCB layout follows a split-plane strategy: the analog signal ground and the digital logic ground are separated and joined at a single star point near the ADC reference. This minimizes the injection of digital switching noise into the analog measurement path. Transient voltage suppression (TVS) diodes are placed at each channel input terminal to clamp ESD and surge events per IEC 61000-4-5 (surge immunity, 1 kV line-to-line). The module has been tested to EN 61000-4-3 (radiated immunity, 10 V/m) and EN 61000-4-6 (conducted immunity, 10 V RMS), consistent with the EMC requirements for safety-related equipment in Zone 2 classified areas when installed in a suitable enclosure.

On-Module Diagnostic Processor: A dedicated co-processor on the FC-SAI-1620M V1.1 runs continuous self-test routines independent of the main SM CPU scan cycle. These routines include: ADC reference voltage monitoring, optocoupler degradation detection via LED current measurement, loop open-circuit detection (signal below 3.6 mA threshold), and loop short-circuit detection (signal above 21 mA threshold). Fault conditions are latched in a local status register and reported to the SM CPU on the next backplane communication cycle, with a maximum latency of one scan period. This ensures that a channel fault is visible to the safety logic solver within a deterministic time window, supporting the module’s SIL 2 diagnostic coverage claim.

System Integration Benefits

• Deterministic Scan Synchronization: The module’s ADC sampling is synchronized to the SM CPU’s backplane clock, eliminating jitter between channel samples within a single scan. This is essential for multi-variable safety functions where the relative timing of two process variables — such as pressure differential across a valve — must be evaluated within the same logic execution cycle.
• Hot-Swap Capability in Redundant Configurations: In dual or TMR (Triple Modular Redundancy) chassis configurations, the FC-SAI-1620M V1.1 supports online module replacement without process shutdown. The SM chassis backplane manages the handoff, and the replacement module undergoes an automatic self-test sequence before being accepted into the voting logic. Mean time to repair (MTTR) for a channel fault is reduced to the physical swap time plus the self-test duration, typically under 10 minutes.
• Voting Architecture Compatibility: The module is validated for use in 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting configurations. In 2oo3 architectures, three FC-SAI-1620M V1.1 modules acquire the same field signal independently; the SM CPU’s voting logic resolves discrepancies and identifies the faulty channel without triggering a spurious trip. This directly reduces the probability of false shutdown (PFD_spurious) while maintaining the required SIL 2 probability of failure on demand (PFD_avg).
• HART Diagnostic Transparency: By surfacing HART device variables and diagnostic flags at the operator station level, the module enables predictive maintenance workflows without additional hardware. Operators can monitor field transmitter health — including sensor drift, process temperature at the transmitter head, and loop resistance — from the Experion PKS display, reducing unplanned maintenance interventions.
• Unified Configuration via SMCS: All channel parameters — input range, HART enable/disable, fault response behavior, and engineering unit scaling — are configured through the Safety Manager Configuration Studio (SMCS) software. There is no hardware DIP switch or jumper configuration required on the module itself, eliminating the risk of misconfiguration during field installation or module swap.
• Seamless Experion PKS Integration: The FC-SAI-1620M V1.1 integrates natively with Honeywell’s Experion PKS distributed control system via the Fault Tolerant Ethernet (FTE) network. Process values and module diagnostic status are available as standard Experion points, accessible to both the safety logic solver and the process historian without additional data mapping or OPC gateway configuration.
• Reduced Proof Test Interval: The module’s high diagnostic coverage (>90%) allows safety engineers to extend the proof test interval (PTI) compared to modules with lower DC ratings, while maintaining the required PFD_avg for the SIF. For a typical SIL 2 loop with a 10-year proof test interval, the FC-SAI-1620M V1.1’s DC rating contributes to a PFD_avg that remains within the SIL 2 band (10⁻³ to 10⁻²) without requiring annual manual testing of the input channel.
• IEC 61511 Lifecycle Compliance: The module ships with Honeywell’s FMEDA (Failure Mode, Effects, and Diagnostic Analysis) report, which provides the λSD, λSU, λDD, and λDU failure rate data required for SIL verification calculations per IEC 61511 Clause 11. This eliminates the need for the end user to perform independent failure rate analysis, reducing the engineering effort associated with the safety requirements specification (SRS) and SIL verification report.

Quality Assurance & Global Logistics

Every Honeywell FC-SAI-1620M V1.1 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol before it is offered for sale. Inspection steps include: visual verification of Honeywell OEM labeling and PCB silk-screen markings, firmware version confirmation via module self-identification on a test chassis, functional loop test across all 16 channels at 4 mA, 12 mA, and 20 mA setpoints, and HART communication verification on a minimum of four channels per module. Units that do not pass all inspection criteria are quarantined and not listed as available stock.

Packaging follows anti-static handling protocols: each module is placed in a conductive foam tray inside an ESD shielding bag, sealed, and placed in a rigid corrugated outer carton with foam corner protection. For international shipments, the carton is labeled with IATA-compliant markings and accompanied by a commercial invoice, packing list, and certificate of conformance. Export compliance is managed in accordance with Chinese customs regulations and applicable destination-country import requirements.

Logistics partners include DHL Express, FedEx International Priority, and EMS, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are tracked end-to-end, with tracking numbers provided within 24 hours of dispatch.

A 12-month replacement warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility.
