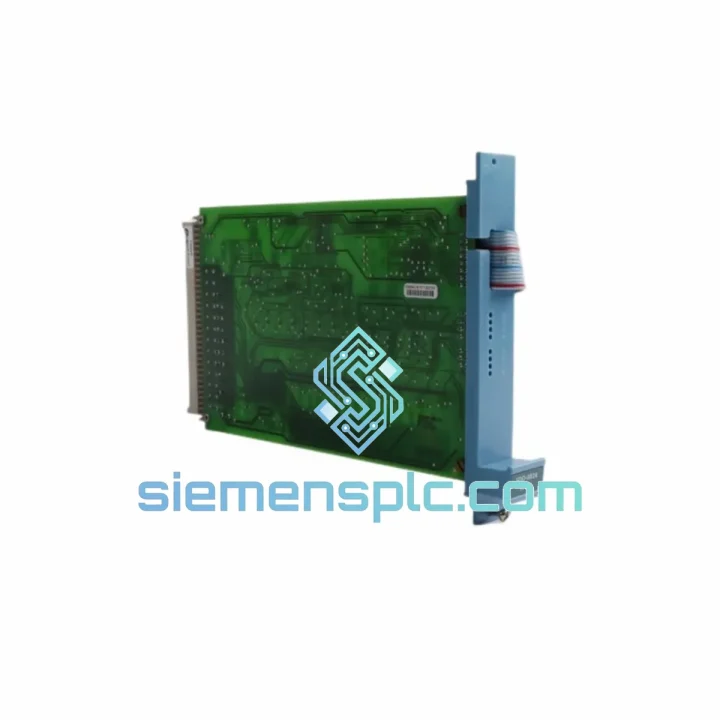

Honeywell FC-SDIL-1608 V1.1 Safety Digital Input Module

FC-SDIL-1608 V1.1 — Your ESD Loop Is Down. Every Hour Costs Real Money. Ship Today.

A tripped Safety Manager DI card doesn’t wait for your procurement cycle. When the FC-SDIL-1608 V1.1 goes dark, your entire safety instrumented function is compromised — SIL certification on hold, process shutdown imminent, and operations breathing down your neck. We carry verified stock in Xiamen. Confirmed orders before 14:00 CST ship same day via DHL Express or FedEx International Priority. No OEM lead times. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Safety Manager systems teach you the same lessons the hard way. Here are the failure patterns that actually show up on the FC-SDIL-1608 V1.1 — and what to do about them before you pull the card.

Fault: DI Channel Stuck or Reporting Open Wire
Ninety percent of the time this is not the module. Long cable runs to field switches accumulate resistance and pick up EMI. Before condemning the card, use Station Manager to identify the exact channel flagging the fault. Measure loop resistance at the terminal board — anything above 300 Ω on a 24 V DC dry-contact circuit warrants a cable inspection. Check terminal block screws for cold joints; vibration loosens them over months. If all field checks pass and the fault persists across a power cycle, the module’s input comparator circuit has likely degraded. Replace the card.

Fault: Module Not Recognized After Insertion — “Unknown Module” in Station Manager
This is a firmware mismatch, almost without exception. The FC-SDIL-1608 V1.1 firmware revision must align with the SM CPU baseline listed in Honeywell’s Hardware Compatibility Matrix (HCM). If your system is running an older SM firmware, the new card will be rejected at the backplane handshake. Resolution: upgrade the SM CPU firmware to a baseline that supports V1.1, or source a card with a firmware revision compatible with your current baseline. Do not attempt to force-load firmware onto the card in the field — this voids the SIL certification.

Fault: Spurious Input State Transitions — Channels Flickering Without Field Event
Classic EMI ingress. Seen most often in plants with large VFDs, motor starters, or unshielded cable trays running parallel to instrument cables. Verify that cable shields are grounded at the cabinet end only — double-grounding creates a ground loop that amplifies the noise the shield is supposed to block. Confirm the field device’s contact rating is compatible with the module’s 24 V DC wetting current. If the problem persists, add ferrite cores to the cable entry at the terminal board.

Fault: SIL Diagnostic Coverage Drops After Module Swap
If your safety function PFD calculation was built on a specific FMEDA dataset, the replacement module must match the diagnostic coverage figures used in that calculation. V1.1 firmware carries its own FMEDA — verify the DC values against your SIL verification report before returning the safety function to service. This is an IEC 61511 Management of Change requirement, not optional.

Hot Swap Procedure — Step by Step

1. Verify the SM system supports online module replacement for this chassis slot. Consult the SM Engineering Manual for your specific chassis revision.
2. In Station Manager, place the affected I/O slot into bypass/inhibit. Confirm the safety function is in a safe state before proceeding.
3. Disconnect field wiring from the terminal board (FC-TSDI-1620M or equivalent). Photograph or label every wire — terminal numbering on the board is small and easy to misread under plant lighting.
4. Release the module locking lever and extract the card using the ejector handles. Never grip the PCB body or touch the backplane connector pins.
5. Seat the replacement FC-SDIL-1608 V1.1 firmly until the locking lever engages with an audible click. A partially seated card will not establish backplane communication and will appear as a missing module in Station Manager.
6. Reconnect field wiring per the original termination schedule. Torque terminal screws to 0.5–0.6 Nm — under-torqued connections are the leading cause of intermittent faults within 6 months of a card swap.
7. Remove the bypass/inhibit in Station Manager. Monitor all 16 channel states for a minimum of 5 minutes against known field conditions before declaring the safety function restored.
8. Record the replacement in your maintenance management system: date, replaced module serial number, new module serial number, firmware version, and technician ID. IEC 61511 MOC documentation is not optional for SIL-rated loops.

Reliability in Harsh Conditions

The FC-SDIL-1608 V1.1 was not designed for a clean control room. It was designed for the kind of environments that destroy commercial-grade I/O within a year — coastal refineries with salt-laden air, offshore platforms with constant vibration and humidity cycling, tropical chemical plants where ambient temperatures swing 20 °C between day and night shifts.

Galvanic isolation between every field channel and the backplane bus means a wiring fault, a field-side surge, or a lightning strike on an instrument cable cannot cascade into the safety controller. The module’s continuous online diagnostics — not a periodic self-test, but a running background check — catch developing faults before they cross the threshold into dangerous failure territory. This is the architecture that makes SIL 3 achievable in a single module.

Every unit dispatched from our Xiamen facility goes through incoming inspection before it touches a shipping box: visual check of connector integrity and label authenticity, firmware version confirmation against the stated revision, and anti-static packaging with humidity indicator cards. Modules that show connector wear, PCB discoloration, or any sign of prior field installation are quarantined. We do not repackage pulled cards as new stock.

Global Express Logistics

Xiamen is one of China’s primary export hubs, with direct DHL and FedEx flight connections to every major industrial region. Here is how an urgent order actually moves:

• Day 0 — Order Confirmed: Payment cleared before 14:00 CST triggers same-day pick, inspect, and pack. Commercial invoice, packing list, and HS 8537.10 export declaration are prepared in parallel with packing. No handoffs, no delays waiting for paperwork.
• Day 1 — Carrier Pickup: DHL Express Worldwide or FedEx International Priority collects from our facility. Tracking number issued within 2 hours of pickup and sent directly to your contact. Next-flight-out options available for critical spares — ask when ordering.
• Days 2–4 — Transit: Typical door-to-door: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days. Pre-cleared export documentation reduces customs hold risk at destination.
• Delivery: Signature required. Provide a direct mobile number for the driver — industrial sites with access control cause missed deliveries that add 24 hours to your downtime clock.

DDP (Delivered Duty Paid) terms available for most destinations. We handle import duties and customs brokerage — your procurement team receives a single invoice with no surprise charges on arrival. Contact us for a freight quote if your site has carrier restrictions or specific import compliance requirements.
