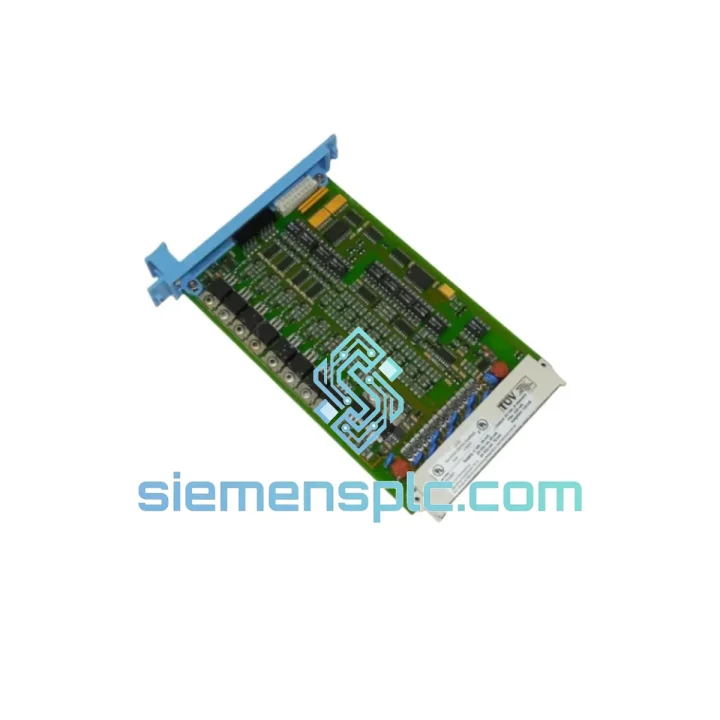

Honeywell FC-SDO-0424 — 4-Channel Safe Digital Output Module: Functional Role in SIL-Rated Safety Instrumented Systems

The FC-SDO-0424 is a four-channel Safe Digital Output (SDO) module designed exclusively for the Honeywell Safety Manager SC (SMSC) platform. It occupies the final element tier of a Safety Instrumented Function (SIF): receiving validated trip commands from the SMSC logic solver, converting those commands into switched 24 V DC field outputs, and returning per-channel diagnostic telemetry — open-load state, short-circuit detection, and output-state mismatch — to the controller on every backplane scan cycle. This bidirectional data path is what allows the FC-SDO-0424 to contribute to the overall PFD_avg budget of a SIF without mandating external proof-test instrumentation at every diagnostic interval.

The module’s four output channels are architecturally independent. Each channel carries its own current-limiting high-side MOSFET driver, its own optocoupler isolation barrier, and its own diagnostic watchdog register. A single-channel failure — whether a driver latch-up, a field wiring short, or an open-load condition — is contained within that channel’s hardware boundary and cannot propagate to adjacent channels or corrupt the module’s safe-state assertion logic. This channel-level independence is a prerequisite for deploying the FC-SDO-0424 in 1oo2 (one-out-of-two) or 2oo3 voted output architectures targeting SIL 3 PFD_avg values per IEC 61508 Ed.2 and IEC 61511-1.

Typical field loads driven by the FC-SDO-0424 include solenoid valve coils in de-energize-to-trip (DETT) configurations, motor starter relay coils, pneumatic actuator pilot valves, and high-integrity pressure protection system (HIPPS) valve actuators. The module’s sub-millisecond output switching time — a direct consequence of the solid-state MOSFET driver architecture — ensures that valve stroke initiation is not delayed by contact bounce or mechanical relay actuation time, which is material in HIPPS applications where the total SIF response time budget is tightly constrained.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Barrier: Each of the four output channels incorporates a dedicated optocoupler positioned between the SMSC backplane logic domain (3.3 V CMOS) and the 24 V DC field power domain. The isolation barrier performs two distinct engineering functions. First, it prevents inductive kickback transients generated by solenoid coil de-energization — which can reach several hundred volts in magnitude before clamping — from coupling into the backplane logic circuitry. Second, it provides the physical creepage and clearance distances required by IEC 60664-1 for Overvoltage Category II field wiring, ensuring that the module maintains its isolation integrity across the full operating temperature and humidity envelope without requiring external surge protection at the module terminals.

High-Side MOSFET Driver with Integrated Current Sensing: The output stage employs a high-side N-channel MOSFET driver rather than an electromechanical relay. This topology eliminates contact bounce entirely, removes mechanical wear as a failure mode, and achieves switching times below 1 ms — a figure that relay-based output modules cannot match. Integrated current sensing on each driver allows the module’s internal diagnostic processor to distinguish three field states without external measurement hardware: normal load current (solenoid energized), zero current with output commanded on (open-load — broken wire or failed solenoid coil), and excessive current with output commanded on (short-circuit — field wiring fault). All three states are reported to the SMSC controller as discrete diagnostic bits on every backplane scan.

Hardware Watchdog and Safe-State Enforcement: An independent hardware watchdog timer monitors the communication heartbeat from the SMSC controller over the backplane bus. If the heartbeat is absent for longer than the module’s configured timeout — due to controller fault, backplane connector degradation, or chassis power anomaly — the watchdog de-asserts all four output channels to their de-energized safe state within the module’s specified reaction time. This safe-state assertion is enforced at the hardware level and cannot be overridden by application software or by a partial controller recovery. The mechanism satisfies the IEC 61508 requirement for a hardware-enforced safe state in Type B subsystems with HFT = 0.

PCB-Level EMC Architecture: The printed circuit board layout uses ground plane segmentation to isolate the digital logic return from the field-side power return, preventing common-impedance coupling between the two domains. Ferrite bead filters are placed in series on all field-side signal lines to attenuate high-frequency conducted noise. Transient voltage suppression (TVS) diodes at the field terminal interface clamp inductive load transients to within the MOSFET driver’s absolute maximum drain-source voltage rating. The module housing maintains shielding continuity through the SMSC chassis backplane ground structure, contributing to the system-level radiated emission and immunity performance documented in the SMSC EMC qualification test reports.

Backplane Bus Synchronization: The FC-SDO-0424 updates its output state synchronously with the SMSC controller’s fixed scan cycle. Output actuation jitter is bounded by the backplane bus cycle time rather than by software scheduling variability, which is a material distinction in Burner Management System (BMS) applications where valve sequencing must follow a defined time-ordered logic with deterministic inter-step timing.

System Integration Benefits

• Deterministic Output Actuation Timing: Output state transitions are synchronized to the SMSC backplane scan cycle, bounding actuation jitter to the bus cycle period. This determinism is required in BMS and HIPPS applications where the SIF response time budget allocates a fixed maximum to the output element tier.
• Per-Channel Diagnostic Transparency: Each channel reports energized/de-energized state, open-load status, and short-circuit status to the SMSC controller on every scan. This data is accessible via the Experion PKS historian, enabling maintenance teams to trend output health over time and schedule proof tests based on observed degradation indicators rather than fixed calendar intervals.
• SIL 3 Architecture via 1oo2D Pairing: Two FC-SDO-0424 modules can be configured in a 1oo2D voted output arrangement on separate SMSC chassis slots. The controller performs output voting in logic; a single module failure does not cause a spurious trip, and the diagnostic coverage of the paired arrangement achieves SIL 3 PFD_avg targets without requiring a dedicated SIL 3 output module variant.
• Online Module Replacement: In SMSC systems configured for online maintenance, the FC-SDO-0424 supports hot-swap replacement without de-energizing the chassis. The controller detects module removal, holds the last commanded output state in its internal register, and re-synchronizes the replacement module upon insertion — reducing planned maintenance windows and eliminating the need for a controlled plant shutdown for module replacement.
• Integrated Proof-Test Execution: The SMSC engineering workstation can initiate a channel-level output test sequence that exercises the FC-SDO-0424 driver and reads back the diagnostic response, generating a timestamped proof-test record. This record format is compliant with IEC 61511-1 Clause 16 documentation requirements, reducing the administrative burden of SIS proof-test record-keeping.
• Unified Experion PKS Operator View: For plants running Honeywell Experion PKS alongside the SMSC SIS, FC-SDO-0424 output states and diagnostics are accessible via the Safety Builder / Experion integration layer. Operators see both process control and safety output status in a single HMI environment without requiring separate display infrastructure for the SIS.
• High Channel Density per Chassis Slot: Four independent safety output circuits per module slot reduces the number of slots consumed per SIF, lowering total installed cost and panel space requirements compared to single-channel output architectures — a significant factor in brownfield SIS upgrades where chassis slot count is constrained.
• Extended Platform Lifecycle: The Safety Manager SC is Honeywell’s current-generation SIS platform with a documented product lifecycle extending beyond legacy SM and FSC platforms. Specifying FC-SDO-0424 in new installations or as a like-for-like replacement in existing SMSC systems ensures continued spare parts availability, firmware support, and TÜV certification currency without triggering a platform migration project.

Quality Assurance & Global Logistics

Every FC-SDO-0424 unit supplied by siemensplc.com is sourced as genuine Honeywell original hardware. Prior to dispatch from our Xiamen, China operations center, each module passes a structured incoming inspection protocol: part marking verification against Honeywell’s label authentication standards, PCB visual inspection under magnification for evidence of rework or non-original components, connector pin integrity check across all backplane and field terminal positions, and firmware revision confirmation where the module interface permits. Units that do not clear all inspection criteria are quarantined and removed from available inventory — they are not offered for sale under any circumstances.

Our Xiamen facility provides direct access to the major international express freight networks — DHL Express, FedEx International Priority, UPS Worldwide Express, and SF International — enabling delivery to destinations across Southeast Asia, the Middle East, Europe, and the Americas within 3 to 7 business days for in-stock units. For emergency plant shutdown scenarios requiring same-day dispatch, orders confirmed before 14:00 CST are eligible for same-day collection by the carrier. All shipments are accompanied by a commercial invoice, packing list, and certificate of origin. Export compliance screening is applied to every order in accordance with applicable Chinese export administration regulations and destination-country import requirements.

A 12-month supply warranty covers the physical and functional condition of the module at the time of shipment. Warranty claims are handled directly by our technical team in coordination with the customer’s site engineering group to assess the failure mode and arrange replacement or credit. This process does not require the module to be returned to a Honeywell authorized service center, minimizing the plant downtime exposure associated with a warranty resolution cycle.
