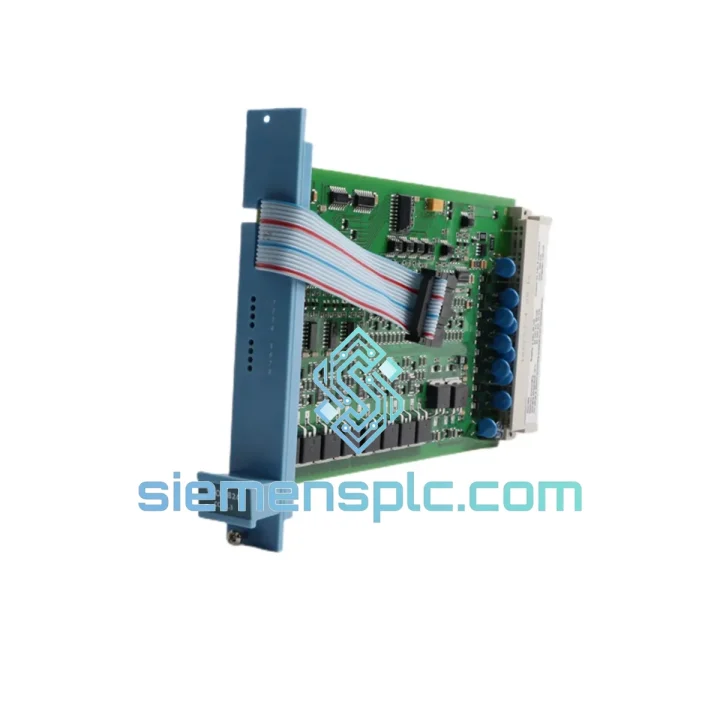

Honeywell FC-SDO-0824 V1.3 Digital Output Module – Experion PKS

Honeywell FC-SDO-0824 V1.3 – 8-Channel 24VDC Solid-State Digital Output Module for Experion PKS C300/C200 Control Architecture

In process control infrastructure, the integrity of a digital output signal is not a software concern — it is a hardware discipline. Between a DCS controller issuing a trip command and a field solenoid valve executing that command, there are multiple failure modes: wire breaks, coil shorts, backplane communication faults, and power rail instability. The FC-SDO-0824 V1.3 is engineered to address each of these failure modes at the circuit level, not through software workarounds.

This module provides 8 individually isolated, electronically fused, solid-state sourcing (PNP) output channels at 24VDC, rated at 0.5A per channel and 4A total module load. It is designed exclusively for the Honeywell Experion PKS C300 and C200 controller families, occupying a single I/O slot in the Experion I/O enclosure. The V1.3 firmware revision introduces enhanced per-channel diagnostic timestamping, enabling fault events to be logged directly to the Experion historian with millisecond resolution — a capability absent in V1.0 and V1.1 releases.

The module’s channel diagnostics continuously monitor each output for open-circuit and short-circuit conditions during normal operation. When a fault is detected, the affected channel is isolated electronically while the remaining seven channels continue operating without interruption. This behavior is critical in multi-actuator control loops where a single wiring fault must not cascade into a broader process upset.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-SDO-0824 V1.3 is built around a solid-state output stage using PNP transistor arrays rather than electromechanical relays. This architectural choice has direct consequences for reliability in high-cycle applications: there are no contact surfaces to pit, no spring mechanisms to fatigue, and no arc suppression components to degrade. In solenoid valve applications cycling at 500,000 operations per year — common in compressor anti-surge and pressure relief service — this translates to a measurable reduction in mean time between failures (MTBF) compared to relay-output alternatives.

Each of the 8 output channels is protected by an independent electronic fuse circuit. Unlike glass or ceramic fuses that require physical replacement after a fault, the electronic fusing in the FC-SDO-0824 V1.3 is self-resetting: once the fault condition (short circuit or sustained overcurrent) is cleared from the field wiring, the channel restores output capability without module removal or manual intervention. This behavior is particularly valuable in unmanned remote installations where physical access for fuse replacement is operationally costly.

The EMC design of the module addresses three primary interference mechanisms relevant to industrial panel environments. First, the output stage incorporates transient voltage suppression (TVS) diodes on each channel to clamp inductive kickback from solenoid coil de-energization — a voltage spike that can reach 10× the supply voltage in unprotected circuits. Second, the backplane communication interface uses differential signaling with common-mode rejection, maintaining data integrity in environments with high-frequency switching noise from variable frequency drives (VFDs) operating in the same panel. Third, the PCB layout follows IEC 61000-4-4 EFT immunity requirements, with signal traces routed away from power conductors and ground planes sized to minimize impedance at frequencies up to 100MHz.

The V1.3 firmware revision adds a diagnostic event buffer that timestamps channel fault events with 1ms resolution and transmits them to the Experion PKS historian via the standard I/O bus protocol. This capability enables maintenance engineers to correlate output faults with process events in the historian trend display — for example, identifying whether a valve coil short occurred before or after a process pressure excursion — without requiring additional diagnostic hardware or manual log correlation.

System Integration Benefits

• Hot-swap module replacement without controller restart: The Experion PKS backplane maintains I/O state during module extraction and reinsertion. Replacing a faulty FC-SDO-0824 V1.3 in a running plant requires no controller reboot, no process hold, and no alarm suppression — the replacement module is recognized and configured automatically within seconds of insertion.
• Per-channel fault isolation preserving loop availability: A short-circuit on channel 3 does not affect channels 1, 2, or 4–8. In a valve group where 8 actuators share one module, a single wiring fault affects only the faulted actuator, not the entire group — maintaining partial process throughput during fault investigation.
• Deterministic output response for time-critical loops: The solid-state output stage switches in under 1ms from command receipt to field signal change. In compressor anti-surge valve control, where response time directly determines whether a surge event is arrested or allowed to develop, this determinism is a design requirement, not a preference.
• IEC 61511 SIL 2 diagnostic coverage for safety loops: The open-circuit and short-circuit diagnostics provide the hardware fault tolerance and diagnostic coverage (DC) required for SIL 2 output channel classification under IEC 61511. This eliminates the need for external diagnostic relays in many ESD valve control applications, reducing panel footprint and wiring complexity.
• Historian-integrated fault timestamping (V1.3): Channel fault events are logged to the Experion historian with 1ms resolution, enabling root-cause analysis using standard Experion trend tools without additional data acquisition hardware. This directly supports ISA-18.2 alarm rationalization and IEC 61511 proof-test documentation requirements.
• Backward compatibility with V1.0/V1.1 installations: The FC-SDO-0824 V1.3 is a direct drop-in replacement for V1.0 and V1.1 modules in the same backplane slot. No controller configuration changes, no field wiring modifications, and no Experion Control Builder project updates are required — reducing replacement risk in validated or SIL-certified installations.
• Single-slot density maximizing I/O enclosure utilization: The module occupies one slot in the Experion I/O enclosure, providing 8 output channels per slot. In large I/O subsystems with hundreds of digital outputs, this density directly reduces the number of enclosures, power supplies, and I/O link interfaces required — with proportional reductions in capital cost and panel space.
• Fail-safe de-energize-to-trip output behavior: On loss of backplane power or controller communication, all output channels default to the de-energized (OFF) state. For normally-closed solenoid valve applications in ESD service, this behavior ensures that loss of control power results in valve closure — the safe state — without requiring external safety relays or power-monitoring circuits.

Quality Assurance & Global Logistics

Every FC-SDO-0824 V1.3 unit shipped by siemensplc.com undergoes a structured 4-stage inspection protocol before dispatch. Visual inspection confirms firmware label version (V1.3), connector pin integrity, and housing condition against Honeywell’s published counterfeit-screening criteria (IDEA-STD-1010B). Functional testing installs the module in an Experion PKS test bench, exercises all 8 output channels under 24VDC resistive load, and verifies diagnostic LED behavior against Honeywell engineering specifications. Documentation verification cross-references the module serial number against available Honeywell product records and confirms firmware version via Experion Control Builder module properties. Final packaging seals the module in an anti-static bag with desiccant, labeled with inspection date, inspector ID, and test record number.

Available documentation for each shipment includes: Certificate of Conformance (CoC), Functional Test Report, Honeywell FC-SDO-0824 datasheet, firmware version label photograph, and Experion Control Builder module properties screenshot.

Shipments originate from Xiamen, China, via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Standard transit times: 2–4 business days to Southeast Asia and East Asia; 3–5 business days to Middle East, Europe, and Australia; 4–7 business days to North and South America. Export documentation — commercial invoice, packing list, and certificate of origin — is provided for all international shipments. Expedited same-day dispatch is available for urgent plant shutdown requirements confirmed before 14:00 CST.

All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
