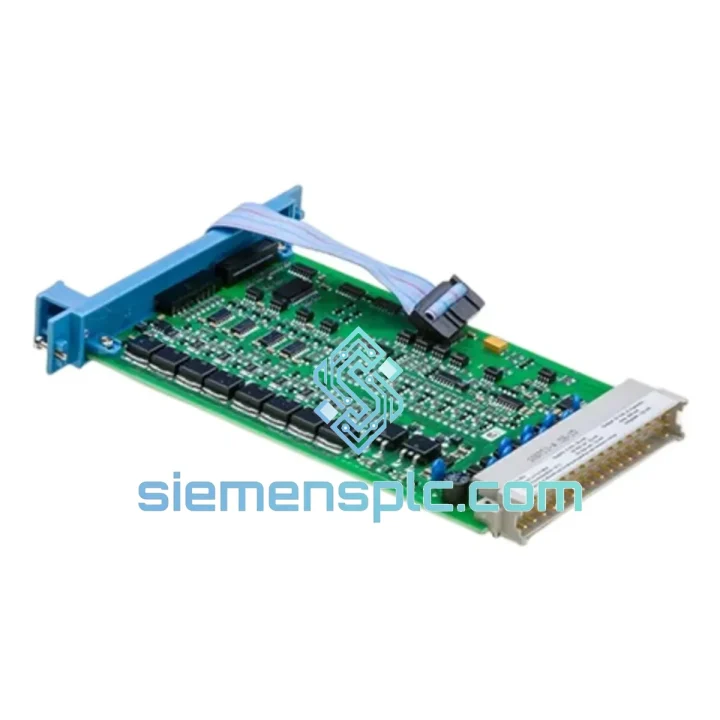

Honeywell FC-SDO-0824 V1.6 Digital Output Module – Safety Manager

Honeywell FC-SDO-0824 V1.6 — 8-Channel 24 VDC Safety Digital Output Module for Safety Manager SIS Architectures

The FC-SDO-0824 V1.6 is a solid-state digital output module designed exclusively for the Honeywell Safety Manager platform. It occupies a single slot in the Safety Manager I/O chassis and delivers eight independently driven, 24 VDC sourcing output channels to field actuators — solenoid valves, motor starters, relay coils, and annunciator circuits — within Safety Instrumented Systems (SIS) certified to IEC 61508 SIL 2. The V1.6 hardware revision represents a mature, field-stabilized design iteration with documented improvements to internal diagnostic firmware and output driver thermal management relative to earlier revisions.

In a typical SIS output loop, the Safety Manager controller executes the safety function logic, evaluates voted input states, and writes a commanded output state to the FC-SDO-0824 over the proprietary Safety Manager backplane bus. The module then drives the corresponding field channel, simultaneously performing per-channel diagnostics — open-load detection, short-circuit monitoring, and over-current shutdown — and reporting channel health back to the controller within the same scan cycle. This closed-loop diagnostic architecture is what enables the module to contribute to SIL 2 probability of failure on demand (PFD) calculations without requiring external test equipment during normal operation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-SDO-0824 V1.6 implements a two-stage output architecture that separates the backplane logic domain from the field power domain through an optocoupler barrier. The backplane-side logic operates at 3.3 V CMOS levels, driven by a dedicated microcontroller that handles bus protocol decoding, diagnostic state machine execution, and watchdog supervision. The field-side output stage uses high-side P-channel MOSFET drivers rated for 24 VDC at 500 mA per channel, with integrated gate-drive circuitry that enforces controlled slew rates to suppress inductive switching transients — a critical design consideration when driving solenoid valve coils with inductances in the 0.5–5 H range.

Each output channel incorporates a current-sense resistor in the return path. The microcontroller samples this sense voltage on every scan cycle and compares it against three thresholds: open-load (current below ~10 mA with output commanded ON), over-current (current above 600 mA), and short-circuit (current above 1.5 A, triggering immediate driver shutdown within 50 µs). This per-channel current monitoring eliminates the need for external fusing on individual channels in many installations, though project-specific SIL verification must confirm this for each application.

The EMC design of the V1.6 revision incorporates multi-layer PCB ground planes with dedicated analog and digital ground domains joined at a single star point, ferrite bead filtering on all field connector pins, and transient voltage suppression (TVS) diodes rated for IEC 61000-4-5 surge immunity at 1 kV (line-to-ground). This architecture allows the module to operate without degradation in environments with conducted interference levels consistent with industrial Zone A classification per IEC 61000-4-6.

The watchdog architecture is dual-layer: an internal hardware watchdog monitors the microcontroller execution cycle, and a backplane-level communication watchdog monitors the Safety Manager bus heartbeat. If either watchdog expires — due to firmware hang, bus cable fault, or controller failure — all eight output channels are driven to the de-energized (safe) state within one watchdog timeout period, typically configured at 100–200 ms depending on system scan rate. This deterministic fail-safe response is a core requirement of IEC 61508 SIL 2 output subsystem design.

System Integration Benefits

• Zero-configuration backplane plug-in: The module is auto-detected by the Safety Manager controller upon insertion. No DIP switch addressing or manual configuration is required — the controller reads the module’s hardware identity register and maps I/O points according to the project database, eliminating commissioning errors from manual addressing.
• Per-channel diagnostic transparency: Each of the eight channels reports a four-state health code (OK, open-load, over-current, short-circuit) to the controller on every scan. This data is available to the HMI historian, enabling maintenance teams to trend field wiring degradation before it causes a spurious trip.
• Deterministic scan-cycle response: Output state changes commanded by the controller are reflected on the field terminals within one backplane bus cycle — typically under 5 ms at standard Safety Manager scan rates. This determinism is essential for Burner Management Systems (BMS) where output response time is a parameter in the safety time budget.
• SIL 2 PFD contribution documented: Honeywell publishes the module’s safe failure fraction (SFF) and dangerous undetected failure rate (λDU) in the product’s safety manual, allowing SIL verification engineers to incorporate the FC-SDO-0824 directly into FMEDA calculations without independent assessment.
• Hot-swap replacement in redundant chassis: In Safety Manager configurations with redundant I/O chassis, the FC-SDO-0824 supports online module replacement. The redundant chassis continues to drive field outputs while the faulted module is extracted and replaced, achieving zero-downtime maintenance in continuous-process plants.
• Inductive load protection built-in: The integrated TVS clamping and controlled MOSFET turn-off slew rate protect both the module output stage and field wiring insulation from inductive kickback voltages when solenoid valve coils are de-energized — a failure mode that degrades output driver longevity in modules without this protection.
• Consistent behavior across ambient temperature range: The output driver bias circuitry is temperature-compensated to maintain consistent threshold voltages for open-load and over-current detection across the full 0–60 °C operating range, preventing nuisance diagnostic alarms in outdoor or non-climate-controlled enclosures.
• Compact single-slot form factor maximizes chassis density: A single Safety Manager chassis accommodates multiple FC-SDO-0824 modules alongside input and specialty modules. The single-width form factor allows engineers to achieve high DO channel counts within a compact cabinet footprint, reducing installation material costs in brownfield retrofits where cabinet space is constrained.

Quality Assurance & Global Logistics

Every FC-SDO-0824 V1.6 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Hardware revision markings, label integrity, connector pin condition, and backplane edge connector cleanliness are verified against reference standards. Units exhibiting evidence of prior field installation — connector wear, thermal discoloration, or label damage — are quarantined and not offered for sale without explicit disclosure.

Packaging follows IEC 60068-2 transport conditioning guidelines: each module is sealed in an anti-static shielding bag with desiccant, placed in foam-lined inner carton, and packed in a double-wall corrugated outer carton rated for international air freight handling. Humidity indicator cards are included to confirm the anti-static bag seal integrity was maintained during transit.

Shipment from Xiamen is available via DHL Express, FedEx International Priority, and UCP air freight for project volumes. Standard transit times to Western Europe are 3–5 business days; to North America, 4–6 business days; to Southeast Asia and the Middle East, 2–4 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. HS Code 8537.10 applies to this product category for customs classification purposes.

A 12-month inspection warranty covers physical and functional integrity at the time of shipment. Warranty claims are processed via direct RMA coordination with our technical team. Replacement units are dispatched within 48 hours of confirmed fault diagnosis for stocked SKUs.
