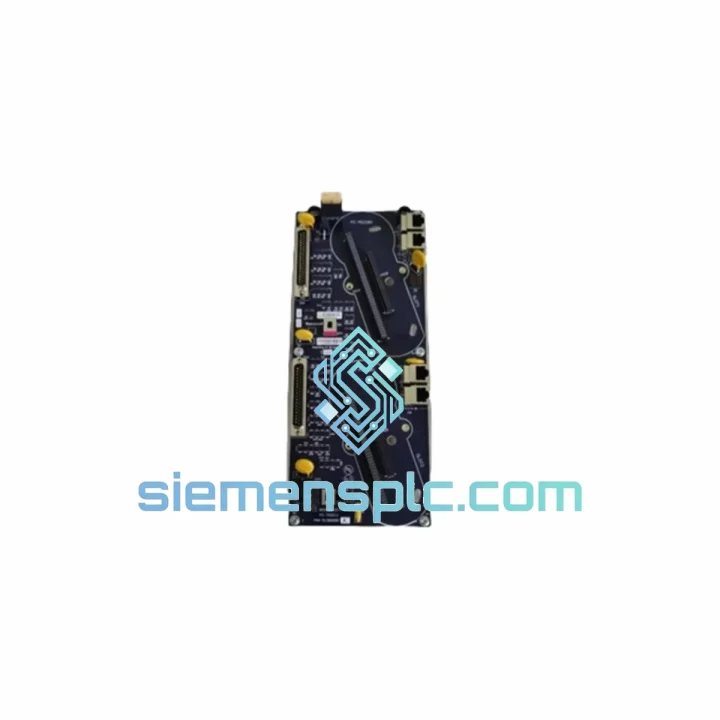

Honeywell FC-TDIO11 Safety I/O Module – Safety Manager FSC

Honeywell FC-TDIO11 – Redundant Digital I/O Module in the Safety Manager FSC Architecture

The FC-TDIO11 occupies a structurally critical position within Honeywell’s Safety Manager Fail-Safe Controller (FSC) platform. As a redundant digital I/O module, it forms the direct electrical boundary between the safety logic solver and field instrumentation — the precise point where deterministic control decisions translate into physical process actions. In safety-instrumented systems (SIS) governed by IEC 61508 and IEC 61511, the integrity of this boundary is non-negotiable. The FC-TDIO11 is engineered to maintain that integrity under sustained industrial stress, including voltage transients, ground loops, and electromagnetic interference from adjacent drive systems or high-current switching equipment.

Within a redundant FSC rack configuration, two FC-TDIO11 modules operate in a synchronized active/hot-standby pair. The FSC safety CPU continuously arbitrates between both modules, comparing channel-level output states and input readings at each scan cycle. Any discrepancy triggers a diagnostic alarm and initiates a bumpless switchover to the standby module — without interrupting the safety function or generating a spurious trip. This architecture directly supports the demand mode and continuous mode safety function requirements defined in IEC 61511 Part 1, and is the basis for achieving SIL 2 and SIL 3 loop certification in process plant ESD, BMS, and HIPPS applications.

The module’s photoelectric isolation barrier separates field-side wiring from the backplane logic domain. Each digital input channel passes through an optocoupler stage rated for field voltages up to 24 VDC, with a minimum isolation voltage that prevents common-mode noise from corrupting the logic-level signal presented to the FSC CPU. On the output side, solid-state switching elements drive field loads — solenoid valves, relay coils, motor starters — with contact protection circuitry to suppress inductive kickback. The FSC backplane bus carries both power and high-speed data between the FC-TDIO11 and the safety CPU, using a proprietary deterministic protocol that guarantees bounded latency for I/O updates within each controller scan cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FC-TDIO11’s hardware design reflects the constraint hierarchy of functional safety: diagnostic coverage takes precedence over raw throughput, and fault containment takes precedence over cost minimization. Several design decisions are worth examining at the circuit level.

Optocoupler Isolation Architecture: Each digital input channel uses a dedicated optocoupler rather than a shared multiplexed isolation stage. This one-to-one mapping eliminates the risk of inter-channel crosstalk and ensures that a field-side wiring fault — short to ground, open circuit, or voltage reversal — is contained to a single channel without affecting adjacent inputs. The optocoupler’s current transfer ratio (CTR) is selected to maintain a defined logic threshold across the full operating temperature range, preventing thermally induced false state transitions in high-ambient-temperature enclosures.

EMC Design and Conducted Immunity: The module’s PCB layout separates the field-side analog front end from the digital logic domain using a physical ground plane split. Transient voltage suppressors (TVS diodes) are placed at each field terminal to clamp inductive transients generated by solenoid valve de-energization — a common source of conducted EMI in ESD panel environments. The module meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial installation Category III environments.

Redundancy Arbitration Logic: In the active/hot-standby pair, the FSC CPU does not rely on the modules themselves to arbitrate switchover. The safety CPU’s arbitration logic continuously compares the output command register of the active FC-TDIO11 against the standby module’s shadow register. If the active module fails to acknowledge a write command within the defined watchdog timeout — typically within one scan cycle — the CPU promotes the standby module to active status and logs a maintenance alarm. This CPU-centric arbitration model prevents split-brain scenarios where both modules simultaneously assert conflicting output states to field actuators.

Output Driver Protection: The solid-state output drivers incorporate current-limiting circuitry to protect against sustained short-circuit conditions on field wiring. A thermal shutdown mechanism disables the output channel if junction temperature exceeds the rated threshold, and the FSC CPU registers this as a channel fault — distinguishing it from a process-initiated de-energization. This distinction is critical for alarm management: maintenance personnel receive a hardware fault alarm rather than a spurious process trip alarm, reducing diagnostic time during plant incidents.

System Integration Benefits

• Deterministic Scan Cycle Contribution: The FC-TDIO11’s backplane interface operates within the FSC’s fixed scan cycle budget. I/O update latency is bounded and documented in the FSC system manual, enabling safety engineers to calculate worst-case response time (WCRT) for each safety function — a mandatory input to SIL verification calculations per IEC 61511-1 Clause 11.
• Transparent Channel-Level Diagnostics: Each input and output channel reports its status — healthy, open-circuit, short-circuit, or out-of-range — to the FSC CPU’s diagnostic register. This data is accessible via the FSC engineering workstation without interrupting the running safety application, supporting online maintenance and proof test documentation.
• Zero-Impact Proof Testing: The module’s COST (Continuous Online Self-Test) architecture allows partial proof testing of input channels while the safety function remains active. This reduces the required manual proof test interval and directly improves the PFD (Probability of Failure on Demand) calculation for SIL 2 and SIL 3 loops.
• Hot-Swap Capability: Faulty FC-TDIO11 modules can be replaced under power without de-energizing the FSC rack, provided the redundant partner module is healthy. The replacement module synchronizes its shadow register with the active module within one scan cycle after insertion, restoring full redundancy without a process shutdown.
• Backward Compatibility with Legacy FSC Racks: The FC-TDIO11 is mechanically and electrically compatible with earlier FSC rack generations, enabling incremental I/O upgrades without full rack replacement. This preserves the existing safety application software and reduces re-validation scope under IEC 61511 Management of Change procedures.
• Integrated Alarm Prioritization Support: Channel fault alarms generated by the FC-TDIO11 are tagged with a hardware fault classification in the FSC alarm log, distinguishing them from process alarms. This supports EEMUA 191 and ISA-18.2 alarm management requirements by preventing hardware faults from inflating process alarm rates.
• Reduced Wiring Complexity via Terminal Board Architecture: Field wiring terminates on a dedicated FSC terminal board (TB) that connects to the FC-TDIO11 via a direct-plug or ribbon interface. This separation allows the terminal board to remain wired during module replacement, eliminating the need to disconnect and re-terminate field cables — a significant time saving during maintenance windows.
• Consistent Signal Conditioning Across Temperature Range: The module’s input threshold voltage is maintained within specification across the full 0 °C to +60 °C operating range, ensuring that field sensor signals — particularly from proximity switches with temperature-dependent output characteristics — are correctly interpreted without requiring field-side signal conditioning hardware.
