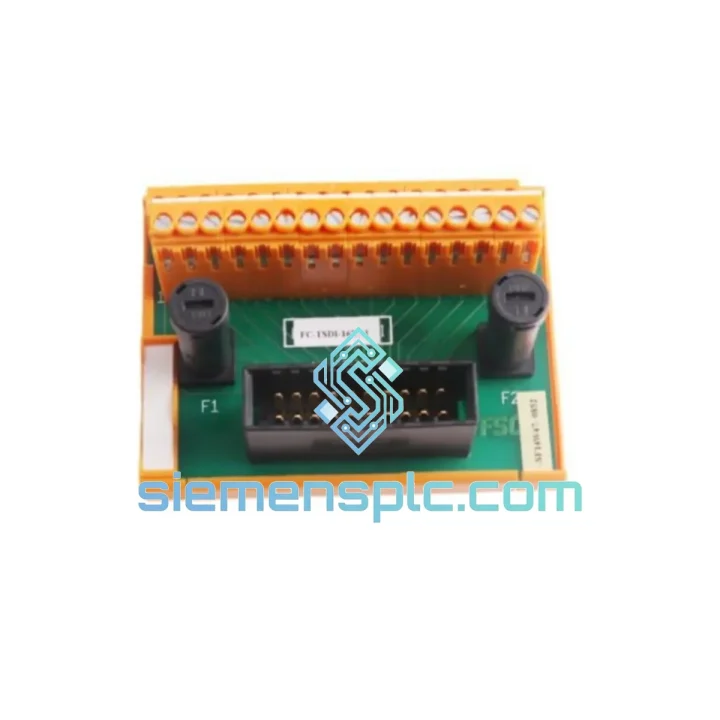

Honeywell FC-TSDO-0424 Safety Terminal Board

FC-TSDO-0424 Down? Every Minute of Downtime Costs You — We Ship Today

Your FSC safety system just flagged a DO terminal board fault. The SIS is in bypass. Your process is on manual hold. You’ve already called your local distributor — lead time is 8 weeks. That’s not an option.

We stock the Honeywell FC-TSDO-0424 FSC Digital Output Terminal Board in Xiamen, China. Same-day dispatch via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive shipment within 2–5 business days. We’ve done this hundreds of times. We know what a real shutdown looks like, and we built our operation around cutting that recovery window as short as physically possible.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The FC-TSDO-0424 is a passive terminal board — no firmware, no configuration software required. That said, field engineers consistently hit the same four failure points during replacement. Here is what to watch for:

1. Backplane Connector Seating
The most common cause of a new-board-same-fault scenario. The 64-pin backplane connector on the FSC chassis is a friction-fit design. If the board is not fully seated — and you will feel resistance before it is actually home — the DO module above it will report a terminal board mismatch or channel fault. Power down the FSC rack before insertion. Apply firm, even pressure across both ends of the board. Verify the locking tabs click into position.

2. Field Wiring Polarity on Group Commons
The FC-TSDO-0424 uses a grouped common architecture: 4 groups, each with a shared 24 VDC common rail. If you are replacing a board that failed due to a field-side short, inspect the common rail terminals (C1–C4) for burn marks or carbon tracking before re-terminating. A damaged common rail on the old board often means the field cable itself has a latent fault. Megger the field cables before reconnecting.

3. DO Module Pairing — Verify Slot Assignment
The terminal board must be installed in the slot directly below its paired DO module (FC-SDO-0824 or equivalent). FSC chassis use a fixed slot-to-terminal-board mapping. Installing the FC-TSDO-0424 in the wrong slot will not cause immediate hardware damage, but the FSC CPU will generate a configuration mismatch alarm and the associated DO channels will remain de-energized. Cross-reference your FSC system drawing before installation.

4. Common Fault Codes Associated with This Board

• DO_TB_MISSING (0x4A12) — Terminal board not detected by DO module. Check backplane seating and connector pins for corrosion.
• DO_CH_OPEN (0x4B0x) — Open circuit on one or more DO channels. Verify field wiring continuity at the terminal board screw terminals.
• DO_GRP_OC (0x4C0x) — Group overcurrent detected. Isolate channels individually to identify the offending load.
• DO_TB_MISMATCH (0x4D01) — Terminal board type does not match DO module configuration. Confirm you have the correct variant: 0424 = 4-group, 24-channel. Do not substitute 0824.

5. Post-Replacement Verification
After installation, perform a channel-by-channel output test using the FSC Engineering Workstation in maintenance override mode. Force each DO channel ON/OFF and verify field device response. Do not return the safety loop to automatic mode until all 24 channels have been individually verified. Document the test results in your MOC package.

Reliability in Harsh Conditions

The Honeywell FSC platform was engineered for environments where standard industrial electronics fail within months. The FC-TSDO-0424 is built to the same hardening specification as the rest of the FSC family.

Vibration Resistance: Qualified to IEC 60068-2-6 sinusoidal vibration profiles — directly relevant for compressor skids, offshore topsides, and pump stations where structural vibration is continuous. The backplane connector uses a positive-locking retention mechanism specifically to prevent vibration-induced intermittent contact, which is the leading cause of spurious DO trips in high-vibration installations.

Thermal Cycling: Rated for 0 to +60 deg C continuous operation. FSC systems installed in non-air-conditioned electrical rooms in tropical climates — Malaysia, Indonesia, Saudi Arabia — have demonstrated multi-year MTBF without terminal board failures attributable to thermal stress. The PCB substrate and solder joints are qualified to IEC 60068-2-14 thermal shock testing.

Humidity and Condensation: Conformal coating on the FC-TSDO-0424 PCB provides protection against humidity up to 95% RH non-condensing. For offshore or coastal installations where salt-laden air is a factor, Honeywell recommends maintaining the FSC enclosure at positive pressure with filtered, conditioned air. The terminal board itself does not require additional coating in standard FSC cabinet configurations.

EMI/RFI Immunity: Galvanic isolation between field wiring terminals and the logic backplane provides hardware-level protection against common-mode noise, ground loops, and conducted EMI from variable frequency drives, large motor starters, and welding equipment. This is a physical barrier — not a software filter — and cannot be defeated by a firmware bug or configuration error.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday. Orders confirmed before 14:00 CST ship the same day. Here is exactly how the process works from inquiry to delivery:

Step 1 — Inquiry and Stock Confirmation (0–2 hours)
Send your part number, required quantity, and destination country to [email protected] or WhatsApp +86 18359268345. We confirm stock availability and provide a proforma invoice within 2 hours during business hours.

Step 2 — Payment and Export Documentation (2–4 hours)
We accept T/T wire transfer, PayPal, and major credit cards. Upon payment confirmation, our logistics team prepares the commercial invoice, packing list, and certificate of origin. For orders requiring an export license or end-user certificate, we handle the documentation.

Step 3 — Packaging and Dispatch (Same Day)
The FC-TSDO-0424 is packed in anti-static ESD foam inside a double-wall corrugated carton. Fragile and ESD-sensitive labels are applied. The shipment is handed to DHL Express or FedEx International Priority with full export customs clearance from China.

Step 4 — Transit and Tracking
You receive the tracking number within 1 hour of dispatch. Typical transit times: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 3–5 days, Americas 4–6 days. We monitor all shipments and proactively contact you if customs clearance requires additional documentation on the destination side.

Step 5 — Delivery Confirmation
Upon delivery, we request a brief confirmation that the board arrived in good condition. If there is any physical damage in transit, we initiate a DHL/FedEx insurance claim on your behalf and arrange a replacement shipment immediately.
