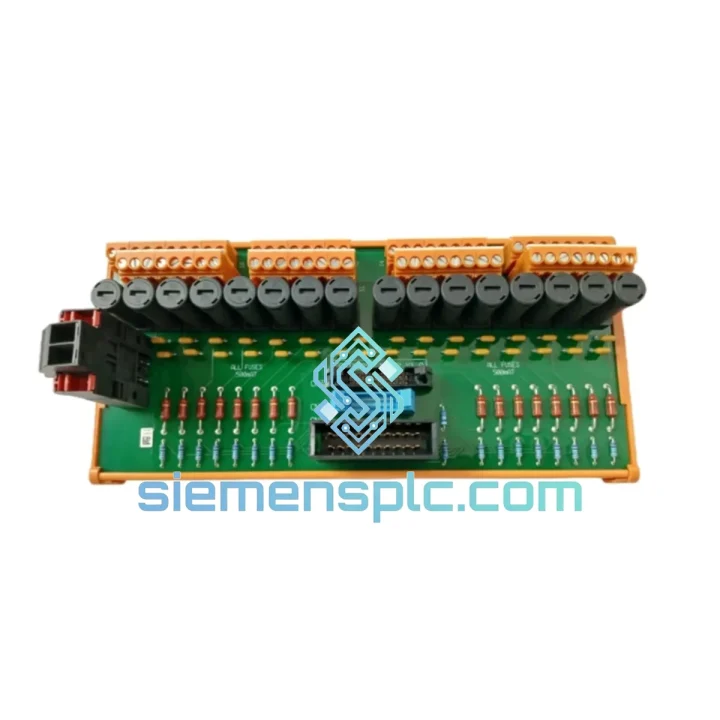

Honeywell FC-TSGASH-1624P Field Termination Assembly

FC-TSGASH-1624P Down? Every Minute of Downtime Costs You — Get It Shipped Today

A failed FC-TSGASH-1624P in a Safety Manager or HC900 system doesn’t just trip an alarm — it can halt an entire production line, trigger a plant-wide ESD, or force a manual bypass that your HSE team will not sign off on. We stock this module in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and land on your bench within 3–5 business days. The math is simple: one day of unplanned downtime in a mid-scale process plant runs $50,000–$500,000. A replacement FTA costs a fraction of that.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here is what actually goes wrong with the FC-TSGASH-1624P and what to watch before you bolt in the replacement:

1. Powered vs. non-powered — confirm before ordering. The FC-TSGASH-1624P is the powered variant (24 VDC supplied through the FTA backplane). Its sibling, the FC-TSGASH-1624N, is non-powered. Swapping them without checking your cabinet power distribution will result in either a dead module or a blown fuse on the marshalling panel. Pull the wiring diagram from your as-built documentation and confirm the suffix before signing the purchase order.

2. I/O module pairing matters. The FTA must be paired with the correct Honeywell Safety Manager I/O module (typically FC-SDIL-0824 or equivalent). Mismatched FTA-to-I/O pairings will cause the Safety Manager to flag a hardware fault on startup. The module will not self-address to a mismatched slot — you will see a solid red LED on the I/O module and a Module Mismatch fault in the Safety Manager diagnostic log.

3. Common fault codes before condemning the FTA:

• SM Fault 0x1A04 — FTA communication loss. Usually a failed ribbon cable between FTA and I/O module, not the FTA itself. Reseat the cable first.
• SM Fault 0x1A08 — Channel input stuck high or low. Disconnect field wiring and test each channel with a 24 VDC source before replacing the FTA.
• SM Fault 0x1A11 — FTA power supply undervoltage. Check the 24 VDC rail feeding the FTA backplane. A sagging supply will kill the FTA before the module itself fails.
• SM Fault 0x2C01 — Module removed from slot without physical removal. Suspect a loose backplane connector or vibration-induced intermittent contact.

4. Replacement procedure. The Safety Manager supports online replacement of FTA modules in redundant configurations. In simplex configurations, a controlled shutdown of the affected I/O group is required. Document current channel assignments, remove plug-in field wiring terminal blocks (do not cut wires), swap the FTA, reconnect terminal blocks, and perform a channel-by-channel functional test before returning the loop to automatic control. Experienced technician swap time: 20–35 minutes.

5. Firmware note. The FC-TSGASH-1624P is a passive termination assembly — no onboard firmware. No FTA firmware update is required. However, after a Safety Manager controller firmware upgrade, verify that the paired I/O module firmware is also current. Mismatched I/O module firmware can generate spurious channel faults on an otherwise healthy FTA.

Reliability in Harsh Conditions

The FC-TSGASH-1624P was built for environments that destroy consumer-grade electronics in weeks. Honeywell’s design validation for this FTA series covers:

• Vibration: Tested to IEC 60068-2-6 sinusoidal vibration profiles — 5 Hz to 150 Hz at 1g acceleration. DIN rail mounting clips and terminal block retention mechanisms maintain contact integrity under continuous mechanical vibration typical of compressor rooms and pump skids.
• Thermal cycling: Qualified across the full 0–60 °C operating range with repeated thermal shock cycles. PCB substrate and conformal coating resist delamination and trace cracking that plague cheaper FTA alternatives in outdoor or poorly climate-controlled control rooms.
• Humidity and condensation: Conformal coating provides protection up to 95% RH. In coastal or offshore installations where salt-laden air is a factor, this coating is the difference between a 10-year service life and a 2-year corrosion failure.
• EMI/RFI immunity: Meets IEC 61000-4 series immunity requirements. Galvanic isolation between field wiring and the backplane bus suppresses ground loops and transient spikes from inductive field devices — a common source of nuisance trips in DI circuits connected to solenoid valves and motor starters.

All units shipped from siemensplc.com undergo pre-shipment inspection: visual examination, label and serialization verification, and functional continuity checks. Anti-static packaging and foam-lined cartons are standard.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how a typical urgent order moves:

• Day 0 — Order confirmed: Payment cleared before 14:00 CST triggers same-day pick, pack, and export documentation. Commercial invoice, packing list, and HS code declaration (HS 8537.10) generated immediately.
• Day 1 — Airfreight departure: Shipment departs Xiamen Gaoqi International Airport on the first available DHL Express or FedEx Priority flight. Direct routing to Frankfurt, Memphis, Dubai, and Singapore hubs.
• Day 2–3 — In-transit: Real-time tracking via DHL/FedEx waybill provided within 2 hours of departure. Customs pre-clearance documentation submitted electronically to destination country.
• Day 3–5 — Delivery: Door-to-door to most destinations in Europe, North America, Southeast Asia, and the Middle East. Remote locations may require one additional day for final-mile courier.

For same-day dispatch, contact us via WhatsApp before 12:00 CST. We can coordinate with freight forwarders for charter or hand-carry options on critical shutdowns.
