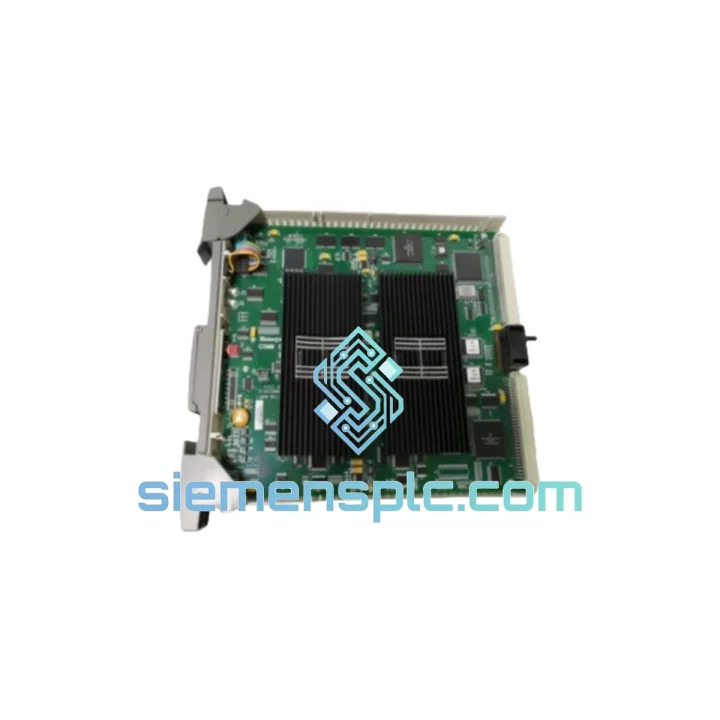

Honeywell FS-SAI-0410 Safety I/O Module – Safety Manager Series

Honeywell FS-SAI-0410: 4-Channel SIL 2 Safe Analog Input Module for Safety Instrumented Systems

The Honeywell FS-SAI-0410 is a 4-channel safe analog input (SAI) module purpose-built for deployment within Honeywell’s Safety Manager platform — a TÜV-certified, IEC 61508-compliant Safety Instrumented System (SIS) controller widely adopted across oil & gas, petrochemical, power generation, and LNG terminal applications. This module occupies a single I/O slot in the Safety Manager chassis and provides galvanically isolated, continuously self-diagnosing analog signal acquisition at SIL 2 integrity level, making it a foundational component in any process safety architecture where analog field transmitter signals must be brought into the safety logic solver with full diagnostic transparency.

Unlike general-purpose analog input cards, the FS-SAI-0410 is designed from the ground up to satisfy the architectural constraints of IEC 61508 Part 2 and IEC 61511 Part 1. Its internal hardware structure implements a dual-channel signal path with cross-comparison logic, enabling the module to detect both dangerous detected (DD) and dangerous undetected (DU) failure modes within the bounds required for SIL 2 single-channel use. The module’s diagnostic coverage (DC) exceeds 90%, placing it firmly in the High DC category per IEC 61508 Table A.2, which directly reduces the probability of failure on demand (PFD) contribution from the input subsystem.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FS-SAI-0410’s internal architecture reflects the hardware design discipline required for functional safety applications. Each of the four input channels routes the 4–20 mA field signal through an independent analog front-end circuit consisting of a precision shunt resistor, a differential amplifier stage, and a dedicated analog-to-digital converter (ADC). The ADC output is fed simultaneously to two independent microprocessor paths — a primary processing channel and a monitoring channel — whose results are cross-compared on every scan cycle. Any discrepancy exceeding a configurable tolerance threshold triggers an immediate safe-state transition and diagnostic alarm, satisfying the IEC 61508 requirement for hardware fault tolerance (HFT = 0) at SIL 2.

Galvanic Isolation Architecture: Each channel employs optocoupler-based galvanic isolation between the field wiring and the backplane logic domain. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements (Level 3, 2 kV line-to-earth). This design prevents ground loop currents from corrupting the analog measurement and protects the safety logic solver from field-side electrical faults — a critical consideration in petrochemical environments where ground potential differences between field instruments and control room equipment can reach tens of volts.

EMC Design: The module’s PCB layout incorporates dedicated ground planes, ferrite bead filtering on all analog input traces, and shielded routing between the ADC and the digital processing section. This layout discipline suppresses conducted and radiated interference in accordance with IEC 61000-4-3 (radiated immunity, 10 V/m) and IEC 61000-4-6 (conducted immunity, 10 V RMS), ensuring measurement integrity in environments with variable-frequency drives (VFDs), high-current motor starters, and RF transmitters operating in proximity to the control cabinet.

HART Pass-Through Logic: The FS-SAI-0410 implements HART communication by superimposing the FSK-modulated HART signal on the 4–20 mA loop without interrupting the primary analog measurement. A dedicated HART modem circuit demodulates the FSK signal and passes device variable data, diagnostic status, and configuration parameters to the Safety Manager engineering workstation via the backplane bus. This architecture allows maintenance personnel to interrogate smart transmitters and retrieve secondary process variables without breaking the safety loop or requiring a bypass — a significant operational advantage during live plant operation.

Watchdog and Redundancy Arbitration: The module’s dual-processor architecture includes a hardware watchdog timer on each processing path. If either processor fails to service its watchdog within the configured timeout window (typically 10–50 ms), the module forces its outputs to the safe state and asserts a fault flag on the backplane bus. The Safety Manager controller detects this flag within one scan cycle and executes the configured safety function — typically de-energizing the associated final element. This fail-safe behavior is deterministic and does not depend on software execution, satisfying the hardware-level safe-state requirement of IEC 61508.

System Integration Benefits

• Deterministic Scan-Cycle Contribution: The FS-SAI-0410 completes analog-to-digital conversion and diagnostic self-test within a fixed hardware latency of less than 5 ms per channel, contributing a bounded and predictable delay to the overall safety function response time (SFRT) calculation — essential for SIL verification per IEC 61511 Clause 11.
• Zero External Signal Conditioning: The module accepts 4–20 mA signals directly from 2-wire loop-powered transmitters without requiring external barriers, isolators, or signal conditioners, reducing BOM complexity and eliminating additional failure modes in the input subsystem.
• Continuous Online Diagnostics: Self-diagnostics execute on every scan cycle without interrupting the safety function. Detected faults are classified by type (open circuit, short circuit, ADC failure, processor divergence) and reported to the Safety Manager controller with a structured diagnostic code, enabling maintenance personnel to identify the root cause without physical inspection.
• HART Secondary Variable Access: Maintenance teams can retrieve secondary process variables (e.g., sensor temperature, pressure differential) from HART-capable transmitters via the engineering workstation, supporting predictive maintenance programs without additional field wiring or handheld communicators.
• Simplified SIL Verification: Honeywell provides a certified safety manual and FMEDA report for the FS-SAI-0410, supplying the PFD, PFH, DC, SFF, and MTTF_D values required for SIL verification calculations. This eliminates the need for the end user to perform independent failure mode analysis on the module.
• Hot-Swap Capability: The Safety Manager chassis supports module replacement under power with appropriate bypass procedures, reducing planned maintenance downtime and enabling corrective maintenance without a full system shutdown — a significant operational benefit in continuous-process industries.
• Scalable I/O Architecture: Multiple FS-SAI-0410 modules can be installed in a single Safety Manager chassis, allowing the SIS I/O count to scale from a few channels to several hundred without changing the controller or communication infrastructure.
• Integrated Proof-Test Support: The Safety Manager engineering workstation provides guided proof-test procedures for the FS-SAI-0410, logging test results with timestamps and operator IDs to satisfy IEC 61511 proof-test documentation requirements and support functional safety audits.
