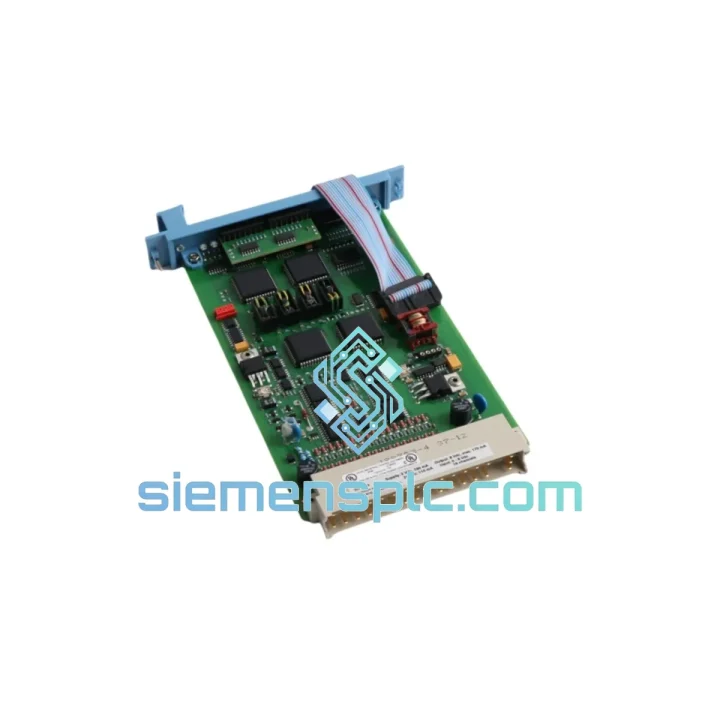

Honeywell FS-TDOL-07120 Safety Output Module

FS-TDOL-07120 Down? Every Minute of Downtime Costs You — We Ship Same Day

Your Safety Manager tripped. The TDOL module is flagged. Production is at a standstill. You’ve already burned two hours on diagnostics and the maintenance window is closing fast. This is exactly the scenario the Honeywell FS-TDOL-07120 stock at siemensplc.com is built for — verified original units, pre-inspected, boxed, and ready to leave Xiamen within hours of your order confirmation.

We don’t sell hope. We sell hardware that’s on the shelf right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Honeywell FSC and Safety Manager systems teach you one thing: most FS-TDOL-07120 failures are not random. They follow a pattern. Here’s what to check before you pull the module — and what to watch when you slot the replacement in.

Common Fault Signatures

• DO channel stuck LOW / no output: Check the 24 VDC field supply rail first. A sagging supply (below 20 V under load) will cause the transistor output stage to latch off. Measure at the terminal block, not at the cabinet bus bar.
• Partial channel failure (channels 1–4 OK, 5–8 dead): Classic sign of internal output driver IC degradation, often accelerated by inductive load switching without proper flyback suppression. Inspect field wiring for missing freewheeling diodes on solenoid loads.
• Module LED solid RED / FAULT status in Safety Builder: The module has detected an internal diagnostic failure. This is a self-test result — the module is telling you it cannot guarantee SIL output integrity. Do not attempt to reset and continue. Replace immediately.
• Intermittent trip / nuisance shutdown: Before condemning the module, verify backplane connector pins for fretting corrosion. Vibration environments (compressor skids, turbine decks) are notorious for this. Clean with contact cleaner, reseat, and monitor. If the fault persists across two power cycles, the module is the culprit.

Replacement Procedure — Key Steps

• Step 1 — Inhibit the SIF loop: Coordinate with the control room to inhibit the Safety Instrumented Function (SIF) associated with this DO module before any physical work. Never hot-swap a safety output module without a formal bypass in place.
• Step 2 — Document the slot address: The FS-TDOL-07120 uses chassis-based slot addressing. The replacement module will inherit the slot address automatically upon insertion — no DIP switch or rotary dial required on this model. Confirm the slot number in Safety Builder before pulling the old unit.
• Step 3 — Firmware compatibility check: Cross-reference the firmware revision of your Safety Manager controller against the module compatibility matrix in Honeywell document SM-FSC-0001. Mismatched firmware can cause the new module to fail its self-test on first power-up. If your controller is running an older firmware baseline, request the compatibility table from your Honeywell service contact before ordering.
• Step 4 — Physical swap: Power down the chassis slot (or follow your site’s hot-work procedure if the chassis supports it). Remove the old module. Inspect the backplane connector for bent pins or debris. Insert the replacement, ensure the locking lever clicks fully, and restore power.
• Step 5 — Functional verification: Force each output channel through Safety Builder diagnostics. Confirm field device response (valve stroke, relay energize) for all 8 channels before releasing the SIF inhibit. Log the replacement in your MOC system.

Configuration Notes

• No manual address configuration (DIP switches) required — slot-based auto-addressing.
• Output channel configuration (energize-to-trip vs. de-energize-to-trip) is defined in the Safety Builder application logic, not on the module hardware.
• If replacing across a firmware boundary, a full download of the safety application may be required. Plan for this in your maintenance window.

Reliability in Harsh Conditions

The FS-TDOL-07120 was engineered for environments where failure is not an option. Honeywell’s FS Series modules undergo qualification testing that goes well beyond standard industrial ratings.

• Vibration: Qualified to IEC 60068-2-6 sinusoidal vibration profiles — relevant for compressor skids, offshore platforms, and turbine control panels where structural vibration is continuous. The backplane locking mechanism and conformal-coated PCB prevent connector fretting and trace corrosion under sustained mechanical stress.
• Thermal cycling: Rated 0 °C to +60 °C operating, with storage down to -40 °C. The solid-state transistor output stage has no mechanical contacts to degrade under thermal expansion cycles — a key advantage over relay-output alternatives in high-cycle applications.
• Humidity and condensation: Conformal coating on the PCB provides protection against humidity ingress in non-purged enclosures. For offshore or coastal installations with high salt-fog exposure, verify enclosure IP rating independently — the module itself is not rated for direct exposure.
• EMC immunity: Designed to IEC 61000-4 series immunity standards. The backplane bus interface includes isolation barriers that prevent field-side transients from propagating into the safety controller logic — critical in environments with large motor starters or VFDs nearby.
• Diagnostic coverage: Internal self-diagnostics run continuously at the module level, independent of the controller scan cycle. Any detected output driver fault is reported to the Safety Manager within one diagnostic test interval, enabling the system to take the SIF to its safe state before a dangerous failure can propagate.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your replacement module moves fast, regardless of where your plant is.

• Order cutoff: Orders confirmed before 14:00 CST ship same business day. Orders confirmed after cutoff ship next morning.
• DHL Express: Xiamen → Europe: 2–3 business days. Xiamen → Middle East: 2–4 business days. Xiamen → Southeast Asia: 1–2 business days. Xiamen → North America: 3–5 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL Express.
• Documentation package: Every shipment includes commercial invoice, packing list, and certificate of conformance. For customers requiring CITES, MSDS, or customs pre-clearance documentation, notify us at order placement.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Emergency freight: For critical shutdowns requiring overnight delivery, contact us directly on WhatsApp for charter freight options and expedited customs clearance coordination.

We have shipped to refineries in Saudi Arabia, chemical plants in Germany, power stations in India, and offshore platforms in Malaysia — all on emergency timelines. Your downtime clock is running. Let’s stop it.
