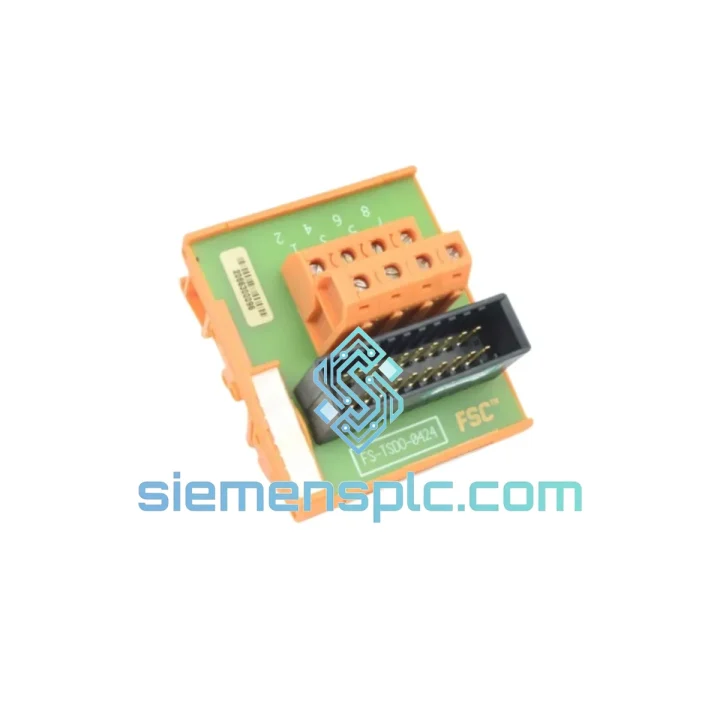

Honeywell FS-TSDO-0424 Safe Digital Output Module: Safety-Critical Output Control in SIS Architectures

The Honeywell FS-TSDO-0424 is a 4-channel Safe Digital Output (SDO) module engineered for deployment within the Honeywell Safety Manager SC (formerly FSC) safety instrumented system platform. Rated to SIL 2 per IEC 61508, this module serves as the terminal actuation interface between the safety logic solver and field-connected devices — solenoid valves, motor contactors, relay coils, and alarm annunciators — in process industries where functional safety is a regulatory and operational mandate.

Unlike general-purpose digital output cards, the FS-TSDO-0424 integrates hardware-level diagnostic routines that continuously verify output driver integrity, load continuity, and short-circuit conditions without interrupting the safety function. Each channel operates through a solid-state transistor sourcing topology at 24 VDC, delivering up to 0.5 A per channel with deterministic switching latency governed by the Safety Manager SC backplane scan cycle.

In a typical Emergency Shutdown (ESD) loop, the FS-TSDO-0424 receives a de-energize-to-trip (DETT) command from the CPU over the internal backplane bus. The module’s output driver immediately opens the sourcing transistor, removing 24 VDC from the solenoid coil and allowing the spring-return actuator to drive the valve to its safe position. The entire signal path — from CPU logic resolution to field terminal voltage change — occurs within the deterministic scan cycle, with no software-layer buffering that could introduce latency uncertainty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FS-TSDO-0424 implements a dual-channel output driver architecture at the hardware level. Each of the four output channels is controlled by two series-connected transistors — a primary drive transistor and a diagnostic monitoring transistor — whose states are independently verified by the module’s onboard microcontroller during every scan cycle. This 1oo2 hardware voting at the transistor level ensures that a single component failure cannot produce a spurious energization of the output, which is the critical failure mode in DETT (de-energize-to-trip) safety loops.

The module’s EMC design follows IEC 61000-4 series requirements. The field terminal block is galvanically isolated from the backplane logic circuitry through optocoupler barriers rated at 500 V isolation voltage. This isolation prevents ground loops and common-mode transients — common in industrial environments with variable-frequency drives, large motor starters, and high-current bus bars — from propagating into the safety logic layer. Transient voltage suppression (TVS) diodes are placed at each field terminal to clamp inductive kickback from solenoid coil de-energization, protecting the output transistors from voltage spikes that can exceed 100 V in unprotected circuits.

The backplane communication interface uses a time-division multiplexed (TDM) protocol with CRC-16 error detection on every data frame. If a CRC mismatch is detected on a command frame, the module holds its last valid output state and raises a diagnostic fault to the CPU — it does not execute the corrupted command. This fail-retain behavior is configurable per channel in the Safety Builder engineering tool, allowing engineers to define whether a communication fault should drive the output to its safe state or hold the last known good state, depending on the process hazard analysis (PHA) outcome for each loop.

Load monitoring is performed by measuring the voltage drop across a precision sense resistor in series with each output channel. The measured current is compared against configurable high and low thresholds. A current below the low threshold indicates an open-circuit condition (broken wire or disconnected solenoid), while a current above the high threshold indicates a short circuit. Both conditions generate diagnostic alarms without requiring the safety function to trip, enabling maintenance intervention before a spurious trip occurs.

System Integration Benefits

• Deterministic scan-cycle actuation: Output switching is synchronized to the Safety Manager SC CPU scan cycle, eliminating asynchronous latency that could affect SIL 2 response time calculations in the Safety Requirements Specification (SRS).
• Zero-configuration hot-swap: The module supports online replacement within the Safety Manager SC chassis without requiring a system shutdown, provided the chassis is configured for redundant power and the CPU is in run mode — reducing planned maintenance downtime to under 5 minutes per module swap.
• Integrated loop diagnostics: Load current monitoring provides continuous wire-break and short-circuit detection on all four channels simultaneously, surfacing faults to the operator HMI via the Safety Manager SC diagnostic bus without requiring external loop testers.
• SIL 2 loop validation retention: Replacing a failed FS-TSDO-0424 with an identical OEM module preserves the existing SIL 2 loop validation records. No re-certification of the safety function is required, avoiding the engineering cost and schedule impact of a full SIL re-verification exercise.
• Configurable safe-state behavior: Each channel’s de-energized state behavior on CPU fault, communication loss, or watchdog timeout is independently configurable in Safety Builder, allowing engineers to align module behavior precisely with the process hazard analysis outcome for each individual safety function.
• Galvanic isolation to 500 V: Optocoupler isolation between field terminals and backplane logic prevents ground-loop currents and common-mode transients from corrupting safety logic states, a critical requirement in plants with shared earthing systems across multiple process units.
• Inductive load protection: Onboard TVS clamping at each field terminal eliminates the need for external freewheeling diodes on solenoid coil circuits, simplifying field wiring design and reducing the component count in junction boxes.
• Transparent fault reporting: All diagnostic events — open circuit, short circuit, internal self-test failure, communication CRC error — are time-stamped and logged in the Safety Manager SC event journal with module slot address and channel number, providing a complete audit trail for incident investigation and functional safety audits.

Quality Assurance & Global Logistics

Every FS-TSDO-0424 unit supplied by siemensplc.com is sourced through verified channels with full Honeywell OEM traceability. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of PCB, connector pins, and housing for physical damage; firmware version verification against the Honeywell Safety Manager SC compatibility matrix; and functional output channel testing using a calibrated 24 VDC load bank to confirm switching response and current measurement accuracy within factory tolerance.

Units are shipped in anti-static packaging with desiccant inserts, enclosed in double-wall corrugated cartons rated for international air freight handling. From our warehouse in Xiamen, China, we dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with typical transit times of 3–5 business days to Europe, North America, the Middle East, and Southeast Asia. For urgent plant shutdowns or unplanned maintenance events, same-day dispatch is available for in-stock units on orders confirmed before 14:00 CST.

All shipments include a Certificate of Conformance (CoC), packing list with serial number traceability, and the original Honeywell product datasheet. Export documentation — including commercial invoice, packing list, and ECCN classification support — is prepared in compliance with Chinese customs regulations and destination-country import requirements. A 12-month replacement warranty covers all units against manufacturing defects and functional failure under normal operating conditions.
