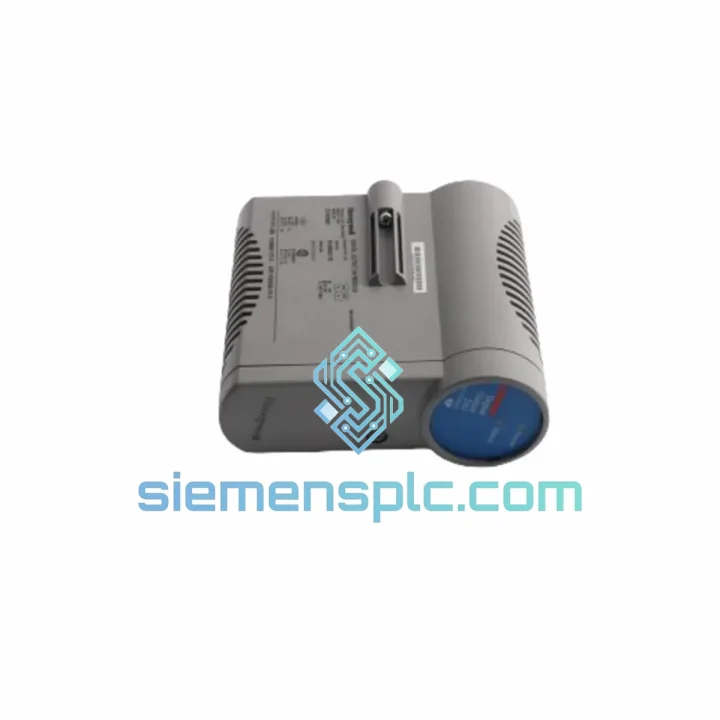

Honeywell FS-USI-0001 V1.2 Safety Interface Module – Safety Manager

Honeywell FS-USI-0001 V1.2 — Fail-Safe Universal Safety Interface in the Safety Manager Control Loop

The Honeywell FS-USI-0001 V1.2 is a plug-in Universal Safety Interface (USI) module engineered for deployment within Honeywell’s Safety Manager (SM) and Safety Manager SC (SMSC) safety instrumented system platforms. Its primary function is to serve as the deterministic signal conditioning and I/O execution layer between field-level safety devices and the SM/SMSC safety logic controller. In a functional safety architecture, the USI module occupies the most critical position in the signal chain: it is the last hardware boundary before a process demand reaches the logic solver, and the first hardware boundary through which a safe-state command reaches a final element.

Unlike conventional I/O modules that operate under best-effort communication protocols, the FS-USI-0001 V1.2 is designed from the ground up to satisfy IEC 61508 hardware fault tolerance requirements. Its internal architecture enforces a fail-safe de-energize-to-trip (DTT) behavior: any detected hardware fault — whether in the analog front-end, the digital output driver, or the backplane communication path — causes the module to drive its outputs to the defined safe state without requiring intervention from the logic controller. This autonomous fault response is a fundamental requirement for SIL 2 and SIL 3 loop certification under IEC 61511.

The module’s universal I/O architecture allows a single hardware SKU to be configured as discrete input (DI), discrete output (DO), analog input (AI 4–20 mA), or analog output (AO 4–20 mA) on a per-channel basis through the Safety Manager engineering workstation. This eliminates the need to stock separate DI, DO, AI, and AO module variants, reducing spare parts inventory complexity in large-scale SIS installations where dozens of I/O chassis may be deployed across a facility.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Galvanic Isolation Architecture: The FS-USI-0001 V1.2 implements transformer-based galvanic isolation between each field-side terminal group and the module’s internal logic bus. This isolation barrier presents a minimum 500 V AC withstand rating between field circuits and the backplane, preventing ground loop currents from corrupting signal integrity in installations where field cable shields are grounded at multiple points — a common condition in large petrochemical plants with distributed earthing systems.

Analog Front-End Signal Conditioning: For AI channels, the module employs a 16-bit sigma-delta ADC with hardware oversampling. The oversampling ratio is fixed at 64×, yielding an effective noise-free resolution of approximately 14 bits across the 4–20 mA span. This translates to a minimum detectable step of approximately 0.98 µA — sufficient to resolve 0.006% of span, well within the ±0.1% accuracy specification required for SIL 2 analog measurement loops. The ADC reference voltage is derived from a precision bandgap reference with a temperature coefficient below 10 ppm/°C, ensuring measurement stability across the full 0–60 °C operating range without field calibration drift.

Discrete Output Driver and DTT Logic: Each DO channel uses a dual-switch solid-state output topology: two series-connected MOSFETs must both be in the conducting state for the output to energize. A hardware watchdog circuit, independent of the module’s main processor, monitors the backplane communication heartbeat. If the heartbeat is absent for more than the configured timeout window (typically 100–200 ms), the watchdog asserts a hardware reset line that forces both MOSFETs to the non-conducting state, de-energizing the output independent of software state. This hardware-enforced DTT behavior satisfies the IEC 61508 requirement for independence between the diagnostic function and the safety function.

EMC Design: The module’s PCB layout follows IEC 61000-4 series immunity requirements. Differential-mode and common-mode filter networks are placed at each field terminal entry point, attenuating conducted RF interference in the 150 kHz–80 MHz band. The module housing is a die-cast aluminum enclosure with conductive gasket sealing at the chassis interface, providing a continuous Faraday shield that achieves greater than 40 dB attenuation of radiated fields above 30 MHz. This is particularly relevant in installations near variable-frequency drives (VFDs) or high-current bus bars, which are common EMI sources in process plant environments.

HART Pass-Through: On AI channels configured for 4–20 mA HART, the module’s analog front-end preserves the 1200/2200 Hz FSK HART signal superimposed on the DC loop current. The HART signal is routed to a dedicated HART modem on the module, which demodulates device variables and passes them to the SM/SMSC controller via the backplane. This enables online valve diagnostics (partial stroke testing, valve signature analysis) without breaking the safety loop or requiring a separate HART multiplexer infrastructure.

System Integration Benefits

• Deterministic Safety Scan Cycle: The FS-USI-0001 V1.2 synchronizes its I/O update cycle to the SM/SMSC controller’s safety scan period, ensuring that field signal changes are captured and acted upon within a single scan cycle. For a typical 100 ms safety scan, worst-case input-to-output response time through the USI module is bounded at less than 10 ms, leaving the remaining scan budget for logic execution.
• Online Diagnostics Without Process Interruption: The module executes continuous self-diagnostics — including ADC reference checks, output driver continuity tests, and backplane communication CRC verification — during normal operation. Diagnostic coverage (DC) exceeds 99% for dangerous detected failures, satisfying the IEC 61508 DC requirements for SIL 3 hardware fault tolerance architectures.
• Redundant Backplane Communication: The SM/SMSC chassis provides dual redundant backplane buses. The FS-USI-0001 V1.2 maintains active communication on both buses simultaneously, with automatic failover to the secondary bus within one scan cycle if the primary bus experiences a communication error. This eliminates the backplane as a single point of failure in the safety loop.
• Universal I/O Reduces Spare Parts Complexity: A single FS-USI-0001 V1.2 spare can replace any failed DI, DO, AI, or AO module in the field. For a plant with 200 USI slots, maintaining 10 universal spares provides the same coverage that would otherwise require 40 type-specific spares — a direct reduction in capital tied up in spare parts inventory.
• HART-Based Asset Management Integration: HART device variables extracted by the module are available to Honeywell’s Asset Management System (AMS) or third-party HART asset management tools via the SM/SMSC OPC DA/UA server. This enables predictive maintenance workflows — valve wear trending, transmitter drift detection — without additional field wiring or HART infrastructure investment.
• Partial Stroke Testing (PST) Support: For DO channels driving ESD valves, the module supports partial stroke test commands issued from the SM/SMSC logic. The PST sequence moves the valve to a defined partial position (typically 10–15% of stroke) and monitors the HART feedback signal to verify actuator response, confirming valve operability without a full process shutdown. PST results are logged with timestamp in the SM/SMSC event historian.
• Transparent Fault Reporting to DCS: The SM/SMSC controller propagates USI module fault codes — channel-level, module-level, and chassis-level — to the plant DCS via Modbus TCP or OPC UA. Control room operators receive specific fault descriptions (e.g., AI Channel 3 — Open Circuit Detected) rather than generic SIS fault alarms, reducing mean time to repair (MTTR) by enabling maintenance personnel to arrive at the correct field location with the correct spare.
• IEC 62443 Cybersecurity Posture: The module’s firmware update mechanism requires cryptographic signature verification before accepting any firmware image. Unsigned or tampered firmware is rejected at the hardware level, preventing unauthorized modification of the safety I/O firmware — a requirement for IEC 62443-3-3 Security Level 2 compliance in safety-critical process control networks.

Quality Assurance & Global Logistics

Every Honeywell FS-USI-0001 V1.2 unit supplied by siemensplc.com is sourced through verified industrial automation distribution channels. Each module arrives with original Honeywell labeling, intact firmware version markings, and a traceable serial number. Prior to dispatch, our technical team performs a visual inspection covering connector pin integrity, housing condition, and label authenticity. Functional pre-shipment verification confirms backplane connector continuity and absence of physical damage to the PCB assembly.

Units are packed in anti-static shielding bags, placed in foam-lined corrugated cartons rated for international air freight handling. Export documentation — including commercial invoice, packing list, and certificate of conformance — is prepared in compliance with Chinese customs export regulations and destination country import requirements. Shipments originate from our warehouse in Xiamen, Fujian Province, China, with access to Xiamen Gaoqi International Airport and Xiamen Port for both air and sea freight options.

Standard air freight transit times: 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, 6–8 business days to North America. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers. Full shipment tracking is provided at time of dispatch. For urgent plant shutdown requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility. Replacement units are dispatched by express courier at no additional charge for confirmed warranty cases.
