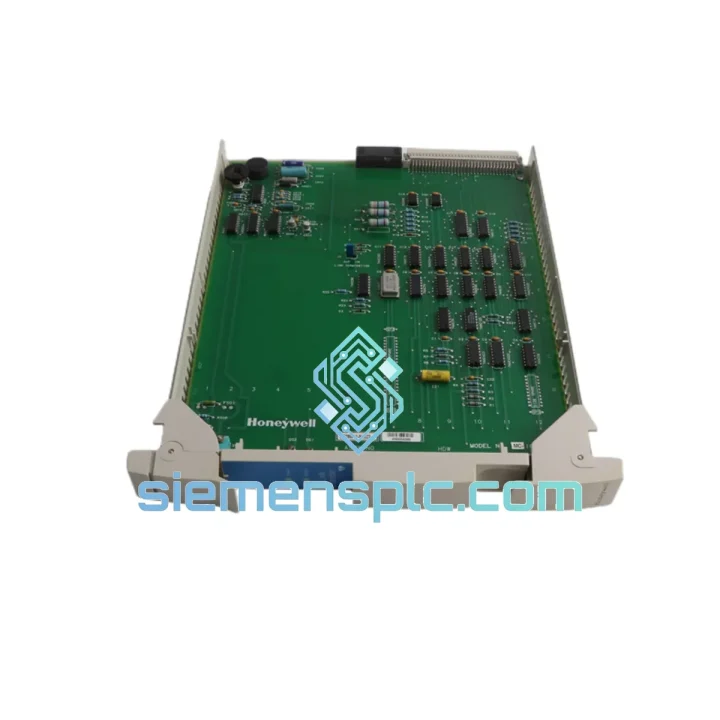

Honeywell MC-IOLX02 51304419-150 I/O Link Extender Card

MC-IOLX02 51304419-150: Stop the Bleed — Every Minute of DCS Downtime Costs You Real Money

Your Experion PKS C300 just lost its I/O link. The field instruments are dark. Operators are blind. The batch is at risk. You’ve already isolated the fault to the I/O Link Extender Card — and now you need a replacement in hand, not in three weeks. That’s exactly why we stock the Honeywell MC-IOLX02 51304419-150 in Xiamen, ready to ship today via DHL or FedEx Express to anywhere on the planet.

In a refinery running at full throughput, an unplanned DCS outage can burn through $50,000–$200,000 per hour in lost production, off-spec product, and emergency labor. The MC-IOLX02 is not a glamorous module — it sits quietly in the chassis extending the I/O link from the C300 controller to remote I/O cabinets — but when it fails, the entire communication backbone collapses. There is no workaround. You need the card. We have it.

Unlike generalist electronics brokers who list everything and stock nothing, we are industrial automation specialists. Every MC-IOLX02 unit we ship has been visually inspected, functionally verified against a reference Experion PKS rack, and packed in ESD-safe anti-static bags with foam-cushioned double-box protection. We’ve shipped to refineries in the Middle East, chemical plants in Southeast Asia, and power stations in Europe — all on emergency timelines. We know what’s at stake when you call us.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on Experion PKS systems, here are the failure patterns and swap procedures that matter when you’re under pressure:

Common Failure Signatures:

• I/O Link Fault LED solid red on C300: First suspect the MC-IOLX02 if the fault persists after cable swap. The extender card is the most common single point of failure on extended I/O link runs.
• Intermittent I/O link dropouts (Experion alarm: IOLINK_COMM_FAIL): Often caused by a degraded MC-IOLX02 before full failure. Check the card’s connector pins for oxidation — especially in coastal or high-humidity plants.
• All downstream I/O modules showing OFFLINE simultaneously: If the C300 itself is healthy and the I/O link cable tests good, the extender card is the culprit. Do not waste time re-downloading the controller — swap the card first.
• Sporadic process alarms with no field instrument fault: Intermittent I/O link extension failures can cause ghost alarms. Log the timestamps against the C300 diagnostic history in Experion Station.

Replacement Procedure — Field Notes:

1. Confirm hot-swap authorization with your site procedure. The MC-IOLX02 is designed for the Experion PKS chassis which supports online card replacement, but your site’s Management of Change (MOC) process governs this. Do not assume — check.
2. No DIP switch or rotary address setting required. The MC-IOLX02 does not have user-configurable addressing switches. The I/O link address is managed by the C300 controller configuration, not the card hardware. This is a direct pull-and-plug replacement.
3. Firmware matching: The MC-IOLX02 carries embedded firmware. In most Experion PKS R400+ installations, the controller will automatically download the correct firmware to the replacement card on insertion. Verify this in your system’s Experion Configuration Studio — look for the IOLINK_FW_MISMATCH diagnostic flag post-swap.
4. Cable seating: Re-seat the I/O link cable connectors on both ends before condemning the card. A partially seated connector mimics a failed extender card perfectly.
5. Post-swap verification: After insertion, monitor the C300 diagnostic display for 60–90 seconds. All downstream I/O modules should transition from OFFLINE to ONLINE sequentially. If any remain offline, check individual module seating — the extender card itself is now confirmed good.
6. Redundant configurations: If your system uses redundant I/O link extenders, perform the swap on the standby path first, verify link integrity, then switch over. Never pull the active extender without confirming the standby is healthy.

Reliability in Harsh Conditions

Process plants are not server rooms. The MC-IOLX02 was engineered for environments that would destroy consumer-grade electronics within weeks. Here’s what it’s built to handle — and what you need to verify when sourcing a replacement:

Vibration: Continuous mechanical vibration from rotating equipment — pumps, compressors, turbines — is a constant stress on chassis-mounted cards. The MC-IOLX02’s PCB is conformally coated and its connector system is designed to maintain contact integrity under sustained vibration profiles consistent with IEC 60068-2-6 test conditions. When inspecting a replacement unit, check that the conformal coating is intact and that no solder joints show micro-cracking.

Thermal Cycling: In outdoor or poorly climate-controlled substations, cards experience daily thermal cycles from ambient cold to full operating temperature. The MC-IOLX02’s component selection accounts for this — but counterfeit or improperly refurbished units often use out-of-spec capacitors that fail within months under thermal stress. Every unit we supply is sourced from verified channels, not grey-market brokers.

Humidity and Corrosion: Coastal refineries, offshore platforms, and tropical chemical plants push humidity to the limits of the 95% RH specification. The conformal coating on the MC-IOLX02 is the primary defense. We inspect every unit under UV light to verify coating integrity before shipment — a step most distributors skip entirely.

EMI/RFI: High-voltage switchgear, variable frequency drives, and welding operations generate electromagnetic interference that can corrupt I/O link communication. The MC-IOLX02’s shielded design and the Experion PKS chassis’s grounding architecture provide robust EMI immunity — but only if the chassis ground strap is properly connected. Always verify chassis grounding when troubleshooting intermittent I/O link faults before replacing the card.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx Express connections to major industrial hubs worldwide. Here’s how an emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit leaves our warehouse the same afternoon.
• DHL Express Worldwide: Xiamen to Dubai — 2 business days. Xiamen to Rotterdam — 3 business days. Xiamen to Houston — 3–4 business days. Xiamen to Singapore — next business day.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. We select the faster carrier for your specific destination automatically.
• Export documentation: Commercial invoice, packing list, certificate of origin, and ESD handling declaration are prepared and attached to every shipment. For destinations requiring additional customs documentation (e.g., import permits for industrial electronics), contact us in advance — we’ve navigated customs in over 40 countries.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor the shipment proactively and alert you to any customs holds immediately.
• Emergency freight options: For situations where even express courier is too slow, we can arrange hand-carry courier service to select destinations. Contact us directly to discuss.

We understand that when you’re calling us, your plant is already down or at risk. Speed is not a selling point — it’s the only thing that matters. Our logistics process is built around that reality.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
