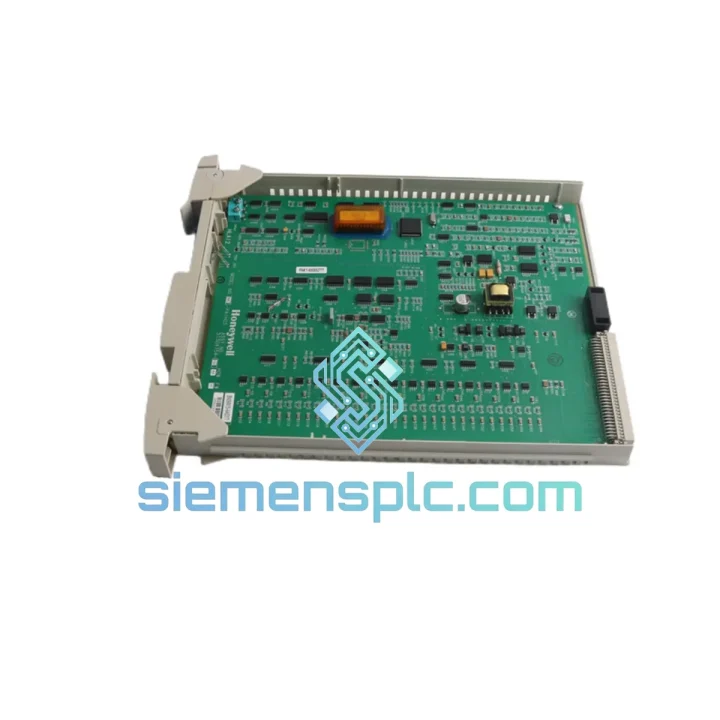

Honeywell MC-PAIH03 51304754-150 Analog Input Module

Honeywell MC-PAIH03 (51304754-150): Stop the Bleeding — Get Your Process Back Online Now

Every minute your Experion PKS or TDC 3000 system sits in fault because of a failed analog input card, you’re burning money. Lost throughput, idle operators, delayed batch cycles — the cost compounds fast. The MC-PAIH03 is a high-level analog input module that sits at the heart of your voltage-signal acquisition loops, and when it fails, there’s no workaround. You need a verified replacement in hand, not a 6-week lead time from the OEM.

We stock the Honeywell MC-PAIH03 (P/N 51304754-150) in Xiamen, China. Tested, verified, ready to pull from the shelf and ship today via DHL or FedEx Express. If your plant is down, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Failure Signatures

Before you pull the card, confirm the fault is actually the module and not upstream wiring or the IOTA termination assembly. The MC-PAIH03 typically presents with one or more of these symptoms in Experion:

• BAD I/O status on all 8 channels simultaneously — classic module-level failure, not a field wiring issue. If only 1–2 channels are bad, check field wiring and transmitter output first.
• Module LED solid red or no LED at all — indicates loss of backplane communication or internal power rail failure. Check backplane slot contacts for corrosion or bent pins before condemning the module.
• Experion alarm: “I/O Module Not Responding” or “Module Removed” — can be triggered by a loose module seating. Re-seat firmly before ordering a replacement.
• Intermittent channel dropouts with no field-side changes — often caused by internal ADC multiplexer degradation, accelerated by thermal cycling in poorly ventilated cabinets.
• All channels reading rail (0% or 100%) with known-good transmitter signals — points to a failed reference voltage circuit inside the module.

Step-by-Step Hot-Swap Replacement Procedure

1. Verify hot-swap eligibility: Confirm in Experion Station that the controller is in RUN mode and the affected module’s point parameters are set to “Use Last Value” or “Bad” on fault — not “Shutdown.” If any critical control loops depend on this module, coordinate a safe hold with the process team before proceeding.
2. Document current channel configuration: In Experion Configuration Studio, export the I/O channel assignments for this module slot. You’ll need this if the replacement module requires re-download.
3. Check firmware revision: Note the firmware version of the failed module (visible in Experion’s I/O Module detail screen). The replacement must carry the same or higher firmware revision. Mismatched firmware on Experion R510+ can cause the controller to reject the module.
4. Physical removal: Squeeze the two locking tabs on the module face simultaneously and pull straight out. Do not rock or twist — the 96-pin DIN connector is fragile under lateral force.
5. Inspect the IOTA slot: Before inserting the replacement, visually inspect the IOTA backplane connector for bent pins, debris, or corrosion. A failed IOTA will kill a new module within hours.
6. Insert replacement module: Align the module guide rails with the IOTA slot and push firmly until both locking tabs click. A partial seat will cause intermittent communication faults.
7. Verify auto-recognition: Within 30–60 seconds, Experion should detect the new module and automatically download the channel configuration. Watch for the module LED to cycle from amber to green. If it stays amber, trigger a manual configuration download from Experion Station.
8. Validate channel readings: Compare live process values against field transmitter outputs using a calibrated multimeter at the IOTA terminals. Confirm all 8 channels are within ±0.1% of expected engineering units.
9. Clear alarms and document: Acknowledge the module fault alarms in Experion, log the replacement in your maintenance management system with the new module serial number, and update your spare parts inventory.

Critical Configuration Notes

• No DIP switches or address jumpers: The MC-PAIH03 uses slot-based auto-addressing via the IOTA backplane. Physical position determines the module address — no manual configuration required.
• Signal type is fixed at the IOTA level: The MC-TAIH03 termination assembly is wired for high-level voltage inputs. Do not attempt to connect 4–20 mA current loops directly — use the MC-PAIM03 variant or install 250 Ω shunt resistors at the IOTA terminals.
• Firmware upgrade path: If your replacement module ships with older firmware, upgrade via Experion’s Firmware Upgrade Utility before placing the controller back in automatic. Running mixed firmware revisions across redundant I/O pairs causes synchronization faults.

Reliability in Harsh Conditions

The MC-PAIH03 was designed for process plants, not office environments. Honeywell’s qualification testing subjects this module to conditions that reflect real-world industrial punishment:

• Vibration resistance: Tested to IEC 60068-2-6 sinusoidal vibration profiles — 5–500 Hz sweep, 1g acceleration. Relevant for compressor stations, pump skids, and rotating equipment enclosures where structural vibration is constant.
• Thermal cycling: Qualified across 0°C to +60°C operating range with accelerated thermal cycling tests simulating years of daily startup/shutdown cycles. The internal ADC reference circuit maintains calibration accuracy across the full temperature span.
• Humidity and condensation: Rated to 95% RH non-condensing. The conformal coating on the PCB provides a barrier against moisture ingress in coastal refineries, offshore platforms, and tropical process facilities.
• Electrical noise immunity: Optical channel-to-bus isolation blocks ground loops and common-mode noise up to 500 V — critical in plants where field cables run parallel to high-voltage motor drives and welding equipment.
• EMC compliance: CE-marked to EN 61000 series; FM-certified for Class I, Division 2 hazardous locations. Suitable for installation in gas processing, chemical, and petrochemical environments without additional barriers in Div 2 zones.

Every unit we ship has been powered on, functionally tested across all 8 channels, and verified against Honeywell’s published accuracy specification. We do not ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL and FedEx Express connections to over 220 countries. Here’s how your order moves from our shelf to your plant floor:

• Order cutoff: Orders confirmed before 14:00 CST ship same business day. Orders after cutoff ship next morning.
• Packaging: Module is wrapped in anti-static shielding bag, cushioned in foam-lined double-wall carton, and sealed with tamper-evident tape. A humidity indicator card is included for long-haul air freight.
• Carrier options: DHL Express (1–3 business days to most destinations), FedEx International Priority (1–3 business days), or customer-nominated freight forwarder.
• Customs documentation: Commercial invoice, packing list, and certificate of origin provided with every shipment. HS code pre-declared for smooth customs clearance. We have experience shipping to EU, US, Middle East, Southeast Asia, and Australia — we know the paperwork.
• Tracking: Tracking number sent via email and WhatsApp within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds immediately.
• Emergency freight: For critical plant-down situations, we can arrange same-day courier pickup and overnight air freight to most major industrial hubs. Contact us directly on WhatsApp for emergency logistics coordination.

Typical transit times: Europe 2–3 days | North America 2–3 days | Middle East 2–4 days | Southeast Asia 1–2 days | Australia 3–4 days.
