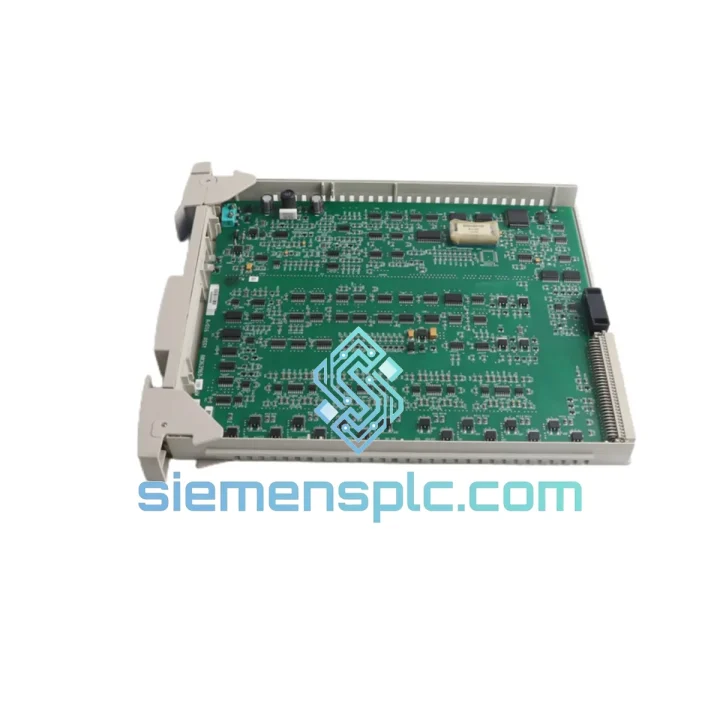

Honeywell MC-PAOY22 80363969-150 Analog Output Module

MC-PAOY22 80363969-150: Stop the Bleed — Every Minute of Downtime Costs You Real Money

Your control valve is frozen. The DCS alarm is screaming. Your shift supervisor is on the radio. You already know the culprit — the analog output module has failed, and until you get a replacement seated and commissioned, that process loop is dead. The Honeywell MC-PAOY22 (part number 80363969-150) is the exact module you need, and we have it on the shelf in Xiamen right now. Not in a warehouse queue. Not on a 12-week lead time from the OEM. Ready to ship today.

We’ve been in this business long enough to know that when a plant calls about an MC-PAOY22, they’re not browsing — they’re in recovery mode. That’s why our entire fulfillment process is built around one priority: getting the right module to your site before the next production shift starts.

⚡ URGENT REQUIREMENT?
Email: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of MC-PAOY22 failures across refinery and chemical plant sites, the failure patterns are consistent. Here’s what you need to know before you pull the old card and seat the new one.

Most Common Failure Modes:

• Channel output stuck at 4 mA or 20 mA: The DAC output stage has latched. This is the most frequent failure — usually triggered by a field wiring short that drove reverse current back into the module. Before installing the replacement, verify loop resistance and check for shorted field cables. A stuck-low output (4 mA) will drive your control valve fully closed; stuck-high (20 mA) will drive it fully open. Both are dangerous.
• Intermittent output drift: If the channel output wanders ±0.5 mA without setpoint changes, suspect capacitor degradation on the output filter stage. This typically appears after 8–12 years of service in high-humidity environments. The DCS historian will show a sawtooth pattern on the trend.
• Module not recognized by IOM after insertion: The PM I/O Link Interface Module (IOM) performs a hardware handshake on power-up. If the replacement module’s firmware revision is significantly older than the IOM firmware, the IOM may reject it. Check the firmware label on the module PCB edge — it should match or be newer than what was previously installed.
• Fault LED solid red, both channels offline: This indicates a power rail fault inside the module. Check the 24 VDC supply to the PM I/O chassis. If supply voltage is within spec (22–26 VDC), the module’s internal DC-DC converter has failed — replace the module.

Step-by-Step Replacement Procedure:

1. Notify the control room. Even with hot-swap support, both output channels will go to their configured fail-safe state (typically 4 mA or hold-last-value) during the swap. Coordinate with the board operator before proceeding.
2. Verify the replacement module part number. Confirm MC-PAOY22 and suffix 80363969-150 match exactly. The -150 suffix denotes the specific hardware revision — do not substitute with a different suffix without engineering approval.
3. No DIP switch configuration required. The MC-PAOY22 uses automatic slot addressing via the PM I/O backplane. The IOM assigns the channel addresses based on physical slot position. There are no DIP switches or jumpers to set on this module — plug-and-play within the PM I/O chassis.
4. Seat the module firmly. The PM I/O card guide requires a deliberate push until the rear connector fully engages. A partially seated module will show as a communication fault, not a hardware fault — a common source of confusion during rushed replacements.
5. Verify channel outputs in Experion Station. After insertion, navigate to the IOM detail display and confirm both AO channels show “Good” status. Force each channel to a known setpoint (e.g., 12 mA = 50%) and verify the field device responds correctly before releasing control back to automatic.
6. Check the FTA wiring. The Field Termination Assembly connected to this module slot carries the 4–20 mA wiring to field devices. Inspect terminal screws for corrosion or loose connections — a failed module often masks underlying wiring issues that will cause the replacement to fail prematurely.

Reliability in Harsh Conditions

The MC-PAOY22 was designed for the realities of process plant environments — not a clean server room. Honeywell’s PM I/O hardware undergoes qualification testing that covers the full spectrum of industrial stress conditions that shorten the life of lesser components.

Vibration is a constant in rotating equipment areas. The module’s PCB is conformal-coated and the rear connector uses a high-retention-force design that maintains electrical contact under continuous vibration loads consistent with IEC 60068-2-6 test profiles. Plants running compressors, pumps, and turbines nearby have reported MC-PAOY22 modules operating without issue for 15+ years in these environments.

Thermal cycling is equally punishing. In outdoor substations and non-climate-controlled marshalling cabinets, ambient temperatures swing from near-freezing winter nights to 50°C+ summer afternoons. The module’s components are rated for the full 0–60°C operating range, and the design accounts for differential thermal expansion between the PCB substrate and component solder joints — a failure mode that kills cheaper modules within 3–5 years.

Humidity and condensation are the silent killers of analog electronics. The conformal coating on the MC-PAOY22 PCB provides a barrier against moisture ingress, preventing the dendritic growth and leakage currents that cause output drift and eventual channel failure in unprotected boards. For installations in coastal or tropical environments — common in Southeast Asian petrochemical complexes — this coating is not optional; it’s what separates a 10-year module from a 2-year module.

EMI immunity is critical in environments with large motor drives, welding equipment, and high-voltage switchgear nearby. The 4–20 mA current loop output is inherently noise-immune over long cable runs, and the module’s internal signal conditioning includes filtering that rejects common-mode interference up to the levels specified in IEC 61000-4 series standards.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental; it was chosen specifically to minimize transit time to the industrial clusters in Southeast Asia, the Middle East, and Europe where Honeywell DCS systems are most heavily deployed.

How your order moves:

• Order confirmed → Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. The module is pulled from stock, inspected, packed in anti-static ESD shielding with foam-lined outer carton, and handed to the courier the same afternoon.
• DHL Express: Our primary carrier for urgent shipments. Xiamen to Singapore: 1–2 business days. Xiamen to Dubai: 2–3 business days. Xiamen to Rotterdam: 2–3 business days. Xiamen to Houston: 3–4 business days. These are real transit times based on our actual shipment history — not carrier marketing estimates.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Comparable transit times to DHL for most industrial regions.
• Export documentation: We prepare the commercial invoice, packing list, and certificate of origin in-house. For shipments requiring an HS code declaration, we use 8537.10 (boards, panels, consoles for electric control) — a classification we’ve cleared through Chinese customs hundreds of times without delay.
• Tracking: A tracking number is sent to your email within 2 hours of dispatch. We monitor shipments proactively and will contact you immediately if a customs hold or routing exception occurs.
• Emergency freight: For genuine plant-down situations, we can arrange hand-carry courier service from Xiamen to your destination airport. Contact us directly on WhatsApp to discuss options.
