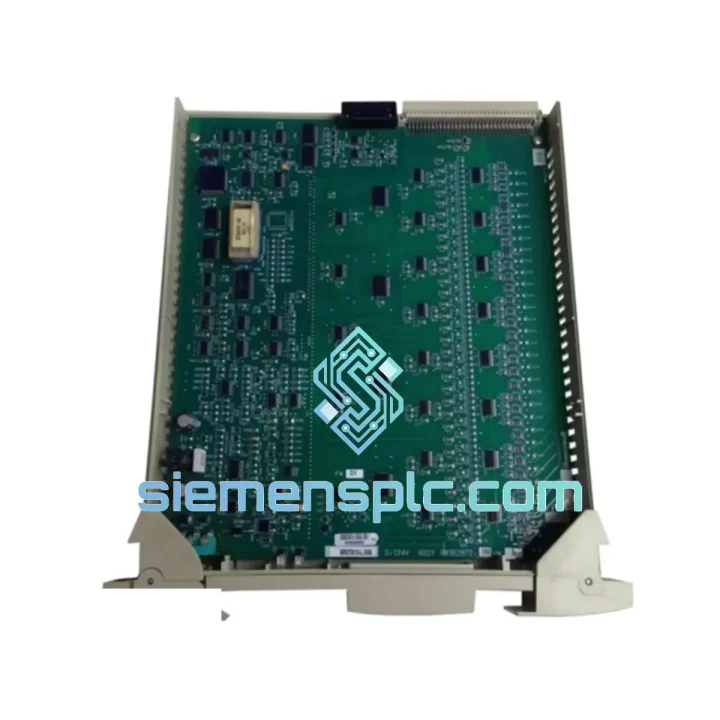

Honeywell MC-PDIY22 80363972-150 Digital Input Module

MC-PDIY22 80363972-150: Stop the Bleed — Every Minute of DCS Downtime Costs You Real Money

Your Experion PKS C300 cluster just lost a digital input card. Field signals are dark. Operators are flying blind on valve positions and motor states. The shift supervisor is on the phone. You’ve already burned through your on-site spare — and procurement says the OEM lead time is six weeks.

That’s exactly the scenario the Honeywell MC-PDIY22 (part number 80363972-150) was built to resolve — and it’s exactly why we stock it in Xiamen, ready to move today. One call, one shipment, one module back in the rack. Production resumes. The post-mortem can wait.

The MC-PDIY22 is the dedicated 24-channel Digital Input module for the Honeywell Experion PKS platform, operating within the C300 Controller’s IOTA-based I/O subsystem. It captures discrete binary signals — limit switches, relay contacts, motor run/stop feedback, valve open/closed status — and delivers them to the C300 via the Field Interface Module (FIM) with deterministic scan cycle timing. No signal, no control. That’s why this card sits at the top of every plant’s critical spare list.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for MC-PDIY22:

• Fault code DIAG-0x14 / Module Not Responding: The FIM has lost communication with the DI card. First check the IOTA carrier seating — a partially ejected module will generate this fault without any visible gap. Re-seat firmly and wait one full scan cycle before declaring the card dead.
• Intermittent input chattering on channels 8–16: Classic symptom of internal optocoupler degradation, often accelerated by high-humidity environments. If the chattering follows a thermal pattern (worse after 2–3 hours of operation), the card is failing — don’t wait for a hard fault.
• All channels reading OFF simultaneously: Before condemning the module, verify the 24VDC field power supply to the IOTA. A blown fuse on the field power rail will mimic a dead DI card perfectly. Check the supply first — it’s a 5-minute fix versus a module swap.
• Module recognized but channels non-responsive after replacement: The replacement card must match the firmware revision of the FIM it’s paired with. Mismatched firmware between the MC-PDIY22 and the FIM can cause silent channel lockout. Verify firmware compatibility in Experion Engineering Studio before closing the cabinet.

Replacement procedure — field-tested sequence:

1. In Experion Engineering Studio, place the affected I/O module into Maintenance Mode to suppress nuisance alarms during the swap. Do not skip this step — unacknowledged alarms during hot-swap can cascade into controller-level faults.
2. Confirm the C300 controller is in Normal state, not Loaded or Checkpointing. A swap during a checkpoint write risks configuration corruption.
3. Grip the module handle — do not pull by the faceplate label. Slide straight out along the IOTA rail. The module will disengage with a distinct click at approximately 15mm of travel.
4. Insert the replacement MC-PDIY22 until both locking tabs engage. The FIM will auto-detect the new module within 3–5 seconds and begin the self-addressing sequence. Watch the STATUS LED: solid green = healthy; flashing amber = firmware negotiation in progress (normal, wait up to 30 seconds); solid red = fault, check firmware revision.
5. In Engineering Studio, verify all 24 channels return to their expected states. Cross-check against the field device status board before releasing Maintenance Mode.
6. Document the swap in your CMMS with the replacement module’s serial number and firmware revision. This data is critical for the next outage investigation.

Configuration note — no DIP switches on this module. The MC-PDIY22 uses software-based self-addressing via the FIM. There are no physical address switches to set. If you’re coming from an older Honeywell I/O platform (e.g., TDC 3000 HPM), do not look for hardware addressing — it doesn’t exist here. The module address is assigned automatically based on its slot position in the IOTA carrier.

Reliability in Harsh Conditions

Refinery control rooms are not data centers. The MC-PDIY22 was designed for environments where the air smells like H2S, the floor vibrates from compressor trains running 24/7, and the ambient temperature swings 30°C between day and night shifts.

The module’s optical isolation architecture physically separates field wiring from the DCS backplane. When a field device generates a voltage spike — a motor starter dropping out, a solenoid valve de-energizing — that transient hits the optocoupler and stops there. The C300 controller never sees it. This is not a software filter; it’s a hardware barrier, and it’s why Honeywell DI modules outlast the field devices they monitor.

Vibration tolerance is built into the IOTA locking mechanism. The dual-tab retention system keeps the module seated under continuous vibration loads consistent with IEC 60068-2-6 test profiles — the kind of vibration you get when the module rack is mounted on a skid next to a reciprocating compressor. Modules don’t walk out of their slots in the field.

Humidity and condensation are addressed through conformal coating on the PCB assembly. In coastal petrochemical facilities and offshore platforms where relative humidity regularly exceeds 90%, uncoated boards fail within months. The MC-PDIY22’s coating provides a physical barrier against moisture ingress that no amount of cabinet air conditioning can fully replicate.

Every unit we ship has been inspected for physical integrity of the conformal coating, connector pin condition, and label authenticity. We do not ship modules with cracked housings, corroded pins, or missing firmware labels — those go back to the supplier, not into your plant.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, the Middle East, Europe, and the Americas.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL/FedEx Express — 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): DHL Express — 2–3 business days
• Europe (Germany, Netherlands, UK, France): FedEx International Priority — 3–4 business days
• North America (USA, Canada): DHL Express / FedEx — 3–5 business days
• South America (Brazil, Chile, Colombia): FedEx International — 4–6 business days
• Australia / New Zealand: DHL Express — 2–3 business days

Every shipment includes a complete export documentation package: commercial invoice with accurate HS code classification, packing list with module serial number, and a certificate of origin where required by the destination country’s customs authority. We do not undervalue shipments or misdeclare goods — practices that create customs holds and add days to your downtime, not hours.

For genuine emergency situations — plant shutdown, safety system impairment, production loss exceeding $50,000/day — contact us via WhatsApp for same-day booking on the next available DHL or FedEx flight out of Xiamen. We have done this before. We know how to move fast when it matters.
