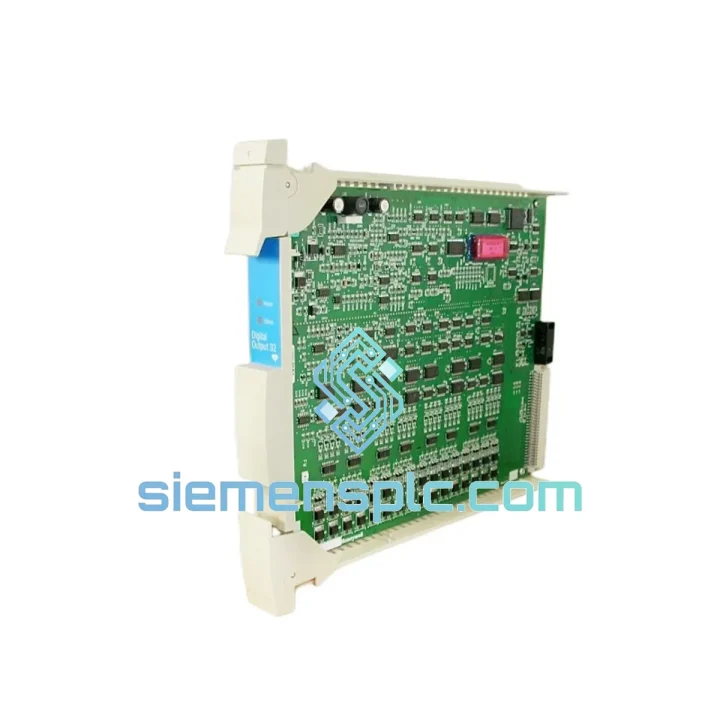

Honeywell MC-PDOY22 80363975-150 Digital Output Module – Experion PKS

Honeywell MC-PDOY22 80363975-150: 24-Channel Discrete Output Module in Experion PKS Control Architecture

The Honeywell MC-PDOY22 (catalog suffix 80363975-150) occupies a well-defined position in the Experion PKS distributed I/O hierarchy: it is the terminal interface between the C200/C300 controller’s output scan and the 24 V DC field devices that execute discrete commands. Each of its 24 output channels drives solenoid valves, motor starter coils, contactor relays, and annunciator lamps through a solid-state switching stage rated at 0.5 A continuous per point. The module mounts onto the MC-TAOY22 IOTA (I/O Termination Assembly), which provides the physical screw-terminal field wiring interface and the backplane connector to the Experion Series C I/O Link.

In a typical refinery or petrochemical control loop, the MC-PDOY22 receives its output commands from the C300 controller over the FTE (Fault Tolerant Ethernet) backbone at a deterministic scan rate. The controller writes a 24-bit output image to the module’s local memory buffer; the module’s onboard ASIC then latches each channel state and drives the corresponding output transistor within one scan cycle. This architecture eliminates the latency variability associated with software-polled I/O and ensures that emergency shutdown sequences and interlock logic execute within the timing envelope defined in the safety functional specification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MC-PDOY22’s internal architecture reflects Honeywell’s design philosophy of separating field-side risk from controller-side logic through multiple isolation barriers. The optical isolation stage between the backplane logic bus and the output driver array uses high-speed optocouplers with a minimum isolation voltage of 500 V DC. This barrier prevents ground loops originating in field wiring — a common failure mode in large-scale process plants where cable runs exceed 300 m and ground potential differences between instrument earth and structural steel can reach several volts — from propagating into the controller backplane and corrupting the output image register.

Each output channel’s solid-state switching element is a low-side N-channel MOSFET with an integrated flyback suppression diode. When driving inductive loads such as solenoid coils, the diode clamps the back-EMF transient generated at de-energization, limiting the voltage spike to approximately 1.2 V above the supply rail. Without this clamping, repeated inductive switching at 24 V DC can generate transients exceeding 100 V, which degrade optocoupler LED junctions over time and cause intermittent output faults that are difficult to reproduce during maintenance windows.

The module’s onboard microcontroller continuously monitors the output driver stage for overcurrent and short-circuit conditions. If a channel’s current exceeds the 0.5 A threshold — typically caused by a shorted field device or wiring fault — the driver is latched off within microseconds and a diagnostic bit is set in the module’s status register. The C300 controller reads this status register on the next I/O scan and propagates the fault to the Experion Station alarm display, enabling maintenance personnel to isolate the affected field loop without interrupting the remaining 23 channels. This per-channel fault isolation is a measurable advantage over relay-based output modules, where a single wiring fault can trip an entire output group.

EMC performance is achieved through a combination of board-level filtering and chassis shielding. Ferrite beads on the output lines attenuate high-frequency conducted emissions in the 30 MHz to 1 GHz range, while the module’s metal housing provides a Faraday enclosure that reduces radiated susceptibility. The design meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) immunity levels appropriate for industrial process environments.

System Integration Benefits

• Deterministic output latency: The module’s ASIC-driven output latch updates all 24 channels within a single I/O scan cycle, eliminating the jitter associated with software-polled architectures and supporting time-critical interlock sequences.
• Per-channel fault transparency: Individual overcurrent detection and status reporting allow maintenance teams to pinpoint a faulted field loop to a single terminal without removing the module or interrupting adjacent control loops.
• Hot-swap capability: The MC-PDOY22 supports online replacement on the MC-TAOY22 IOTA without powering down the I/O chassis, reducing planned maintenance windows and eliminating the need for process shutdowns during module exchange.
• Seamless Experion PKS integration: The module is natively recognized by Honeywell Control Builder and Experion Configuration Studio. No third-party drivers or custom function blocks are required; the I/O point database is auto-populated upon module insertion.
• Scalable channel density: At 24 output points per module slot, the MC-PDOY22 provides a practical balance between channel density and per-channel diagnostic granularity, supporting cabinet layouts that minimize field cable marshalling complexity.
• Optical isolation barrier: The 500 V DC isolation between field wiring and backplane logic protects the controller from ground faults and transient overvoltages originating in the field, extending the service life of both the module and the connected controller.
• Inductive load protection: Integrated flyback suppression on each output channel eliminates the need for external freewheeling diodes on solenoid valve coils, reducing BOM complexity and potential wiring errors during commissioning.
• Alarm integration: Module-level and channel-level fault bits are mapped directly into the Experion PKS alarm management system, supporting ISA-18.2-compliant alarm rationalization without custom configuration.

Quality Assurance & Global Logistics

Every MC-PDOY22 80363975-150 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual inspection confirms label integrity, connector pin condition, and the absence of physical damage to the module housing and backplane edge connector. Functional verification is performed where test equipment is available, confirming that the module powers up without fault LEDs and that the output driver stage responds correctly to test commands. Units are packed in anti-static ESD bags sealed with humidity indicator cards, then placed in foam-lined corrugated cartons rated for international air freight handling.

Honeywell’s manufacturing standards for the MC-PDOY22 series are documented under ISO 9001-certified production processes at their Phoenix, Arizona facility. Each module carries a traceable date code and revision suffix (150 in this case) that allows precise identification of the hardware revision and associated firmware baseline. We maintain traceability records for all units and can provide documentation packages including test records and country-of-origin certificates upon request for regulated industries such as nuclear, pharmaceutical, and offshore oil and gas.

Logistics from Xiamen to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas typically complete within 3 to 7 business days via DHL Express or FedEx International Priority. For urgent plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. We support EXW, FOB Xiamen, and CIF destination Incoterms, and can provide commercial invoices and packing lists formatted for customs clearance in the destination country.
