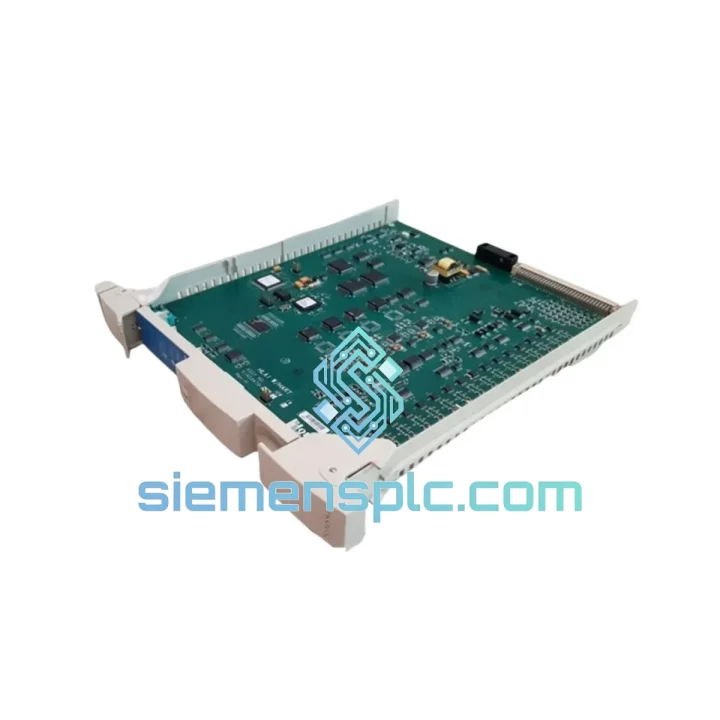

HONEYWELL MC-PHAI01 51403479-150 Analog Input Module – Experion PKS

HONEYWELL MC-PHAI01 51403479-150 — 16-Channel HART Analog Input Module for Experion PKS and TDC 3000 Distributed Control Systems

The MC-PHAI01 (catalog reference 51403479-150) is a rack-mounted analog input card developed by Honeywell Process Solutions for deployment within the Experion PKS and legacy TDC 3000 control architectures. Its primary function within a control loop is signal conditioning and digitization of 4–20 mA field transmitter outputs, with simultaneous HART superimposed communication passed transparently to the DCS host. Each channel operates as an independent acquisition path, converting the analog process variable into a 16-bit digital word that the C300 or equivalent controller processes at deterministic scan rates. The module occupies a single slot in the Honeywell I/O chassis and communicates upstream via the IOLINK serial bus, offloading analog-to-digital conversion from the controller backplane and maintaining a clean separation between field-side and control-side signal domains.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MC-PHAI01 implements a per-channel sigma-delta ADC topology rather than a multiplexed successive-approximation architecture. This design choice has a direct consequence on EMC performance: each channel’s conversion clock is independent, eliminating the inter-channel crosstalk that arises when a single ADC samples multiple inputs sequentially through an analog multiplexer. In high-noise industrial environments — motor control centers, variable-frequency drives, high-current bus bars — this architecture maintains signal integrity without requiring additional shielding at the termination panel.

Optical isolation is implemented at the channel boundary using high-speed optocouplers rated for 500 V_rms working isolation. The isolation barrier breaks the galvanic path between field wiring and the IOLINK bus, preventing ground-loop currents from injecting common-mode noise into the digitization stage. In plants where field instruments share a common ground reference with rotating machinery, this isolation is the primary defense against 50/60 Hz interference appearing as a DC offset on the measured process variable.

HART communication is handled by a dedicated HART modem circuit on each channel pair. The 1200/2200 Hz FSK signal superimposed on the 4–20 mA loop is extracted before the ADC stage, decoded by the onboard HART modem, and buffered in a local register set. The Experion PKS host retrieves this data via the IOLINK bus on a polling schedule configured in the FDM (Field Device Manager) software. This architecture means HART polling does not consume controller CPU cycles — the modem operates asynchronously relative to the analog scan cycle, preserving deterministic loop execution times even when HART diagnostics are active on all 16 channels simultaneously.

The module’s IOLINK interface uses a differential RS-485 physical layer with CRC-16 error detection on every frame. Any transmission error triggers an automatic retransmit and sets a module-level diagnostic flag visible in the Experion operator station. This error-detection mechanism ensures that a corrupted ADC reading is never silently passed to the control strategy — the controller receives either a valid value or an explicit bad-quality indication, which the control logic can use to initiate a fallback or alarm condition.

System Integration Benefits

• Deterministic scan cycle preservation: By offloading analog conversion and HART polling to dedicated onboard hardware, the MC-PHAI01 ensures that the C300 controller’s 100 ms or 500 ms scan cycle is not extended by I/O processing overhead, maintaining loop timing accuracy across all control strategies.
• Diagnostic transparency at the field device level: HART pass-through exposes transmitter self-diagnostics — sensor degradation, loop integrity faults, and calibration drift — directly in the Experion alarm management system without requiring a separate HART multiplexer or handheld communicator.
• Brownfield migration path: The module’s electrical and mechanical form factor is compatible with existing Honeywell I/O chassis used in TDC 3000 installations, allowing phased migration to Experion PKS without rewiring field termination assemblies or replacing cable trays.
• High channel density for cabinet space reduction: 16 analog inputs per slot reduces the number of I/O cards required in a marshalling cabinet by up to 50% compared to 8-channel predecessors, directly lowering cabinet count and associated cooling load in brownfield expansions.
• Online replacement without process interruption: When paired with redundant IOLINK configurations, the module supports hot-swap removal and insertion. The controller detects the card absence, holds the last valid process value, and resumes normal operation within one scan cycle after the replacement card initializes.
• Unified engineering environment: Configuration, calibration, and diagnostics are managed entirely within Experion Configuration Studio and FDM, eliminating the need for separate I/O configuration tools and reducing the risk of parameter mismatch between the physical module and the control database.
• SIL-capable deployment: When configured and documented per Honeywell’s published SIL assessment, the MC-PHAI01 can participate in Safety Instrumented Functions up to SIL 2, allowing a single I/O platform to serve both basic process control and safety layer requirements in appropriate applications.
• Structured fault propagation: Bad-quality flags generated by the module’s CRC error detection and open-loop detection circuits propagate through the IOLINK bus to the controller tag database, where they are available to the control strategy as a discrete input. This allows engineers to implement automatic fallback logic — switching to a backup transmitter or a safe output state — without relying on operator intervention.

Quality Assurance & Global Logistics

Every MC-PHAI01 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification sequence. Visual inspection covers board-level examination for mechanical damage, oxidation on edge connectors, and label authenticity cross-referenced against Honeywell’s published part marking standards. Firmware revision is confirmed against the compatibility matrix for the customer’s declared Experion PKS release. Where bench test equipment is available, the module is powered in a test chassis and all 16 channel inputs are exercised with a calibrated 4–20 mA source to verify ADC linearity and HART modem response before packaging.

Authentic sourcing is maintained through documented procurement from authorized Honeywell distribution channels, certified system integrators, and decommissioned plant inventories with verifiable chain of custody. Each unit ships in anti-static ESD packaging, foam-lined cartons, and moisture-barrier outer packaging rated for air and sea freight. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every international shipment. Standard in-stock orders are dispatched within 2–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide available as carrier options. Transit times to Europe, North America, and Southeast Asia typically range from 3 to 7 business days depending on customs clearance.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled by advance replacement where stock permits, minimizing plant downtime. Extended warranty and on-site commissioning support are available on request.
