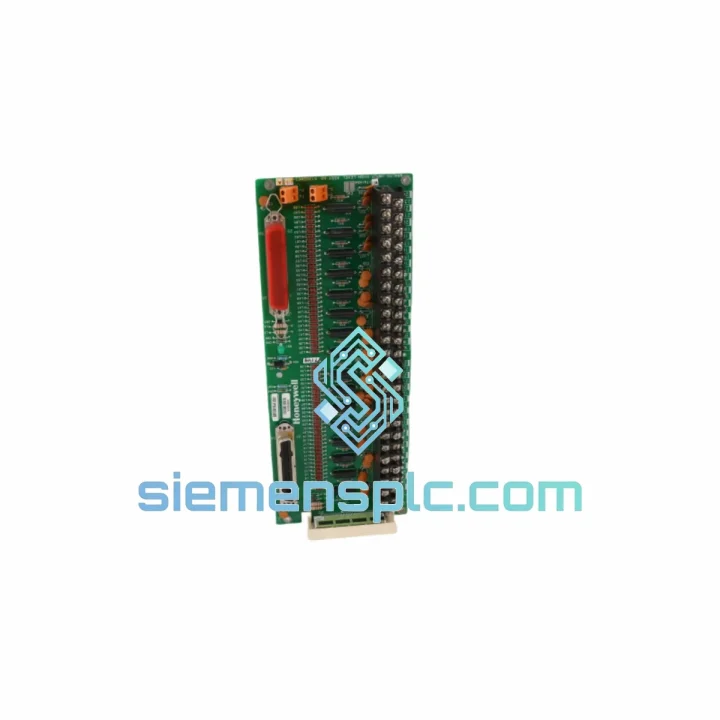

Honeywell MC-TAIH54 51305863-275 Analog Input Module

MC-TAIH54 51305863-275 — Stop the Bleed: Every Hour of Downtime Has a Price Tag

Your distillation column is blind. Your reactor temperature loop is open. Your DCS historian is logging flatlines where there should be live thermocouple data. You already know what this costs per hour — and you need the Honeywell MC-TAIH54 (P/N 51305863-275) on a plane today, not in three weeks.

We stock this card in Xiamen. It ships DHL Express within 24 hours of order confirmation. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor tells you that most MC-TAIH54 failures fall into three buckets. Know which one you’re dealing with before you pull the card.

Fault Pattern 1 — All channels fail simultaneously (module-level fault)
The backplane power rail feeding the card has collapsed, or the card’s internal DC/DC converter has failed. Check the chassis power supply output voltage first. If rail voltage is nominal and the module LED is solid red or unlit, the card itself is gone. Swap it. No configuration is lost — the Experion controller holds the I/O configuration in its own memory. The replacement card self-identifies on the backplane; no DIP switches, no manual addressing on this generation.

Fault Pattern 2 — Intermittent single-channel dropouts, BAD PV alarms cycling
Ninety percent of the time this is a field wiring issue: corroded terminal block, broken thermocouple extension wire, or a ground loop introduced by a poorly bonded junction box. Before condemning the card, disconnect the field wiring from the termination assembly and measure the TC resistance end-to-end. A healthy J-type TC loop reads 2–15 Ω. Open circuit or >100 Ω means the problem is in the field, not the module. If the channel reads correctly with a calibrated mV source applied directly at the termination assembly, the card is fine.

Fault Pattern 3 — Systematic offset error across all channels after a lightning event
The input protection clamps on the MC-TAIH54 absorb the surge but the precision reference circuit drifts. You’ll see all channels reading 2–5°C high or low with no fault alarm. A calibration check against a NIST-traceable reference will confirm it. At this point the card needs to be replaced — field recalibration of the internal reference is not supported without depot-level equipment.

Replacement Procedure — Key Steps

1. Place the controller in manual or confirm the loop is in a safe hold state before pulling the card. Hot-swap is supported in Experion PKS, but confirm your system revision supports it — early TPS builds do not.
2. Label and photograph the termination assembly wiring before disconnecting. The MC-TAIH54 uses a dedicated termination panel; verify the replacement card’s termination assembly revision matches (51305863-275 vs. -175 are not always interchangeable at the termination panel level).
3. Slide the replacement card into the same slot. The Experion controller will detect the new module within 30–60 seconds and download the existing I/O configuration automatically.
4. Verify each channel in the Experion Station display: confirm PV status changes from BAD to GOOD and that the engineering unit value is plausible against the process condition.
5. Perform a cold-junction compensation check if the plant ambient temperature has changed significantly since the original card was commissioned.
6. Document the swap in your maintenance management system with the old card’s serial number and the replacement card’s serial number. Honeywell’s lifecycle support team may request this for warranty or reliability tracking.

Firmware Note: The MC-TAIH54 does not carry user-upgradeable firmware in the field. If your Experion system is running a controller firmware version below R310, verify compatibility with Honeywell’s I/O compatibility matrix before installing a later-revision card. Mismatched revisions can cause the controller to reject the module with a “Module Type Mismatch” fault.

Reliability in Harsh Conditions

The MC-TAIH54 was not designed for a climate-controlled server room. It was built for the reality of industrial control rooms: ambient temperatures that swing 20°C between day and night shifts, humidity that condenses on cabinet walls during monsoon season, and vibration from nearby compressors that never stops.

Honeywell’s Experion I/O cards are qualified to IEC 61131-2 environmental standards. The MC-TAIH54 specifically is rated for continuous operation at up to 60°C ambient with no derating, and it tolerates relative humidity up to 95% non-condensing. The conformal coating on the PCB provides a barrier against airborne contaminants — sulfur compounds from refinery atmospheres, salt fog in coastal installations, and conductive dust in cement or mining environments.

Channel-to-channel isolation is not just a spec-sheet number. In a plant where dozens of thermocouples share a common instrument ground bus, a single ground fault on one TC can inject millivolt-level noise into adjacent channels on a non-isolated card. The MC-TAIH54’s per-channel isolation barrier eliminates this failure mode entirely, which is why it remains the preferred choice for high-density TC applications in safety-instrumented environments.

Vibration tolerance is validated to IEC 60068-2-6: 10–150 Hz, 1g continuous. For installations near reciprocating compressors or on offshore platforms, this matters. Cards that fail vibration qualification develop intermittent solder joint failures that are nearly impossible to diagnose in the field — they pass bench testing and fail the moment they go back into service. The MC-TAIH54 does not have this problem.

Units we ship from Xiamen are stored in climate-controlled, ESD-safe warehousing. Every card is individually bagged in anti-static packaging with silica gel desiccant before dispatch. We do not ship bare boards in bubble wrap.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL and FedEx flight connections to major industrial hubs worldwide.

Standard Express Timeline (DHL / FedEx Priority):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Australia / New Zealand: 3–4 business days

Export Documentation Provided: Commercial invoice, packing list, certificate of origin (if required), and HS code declaration (HS 8537.10 / 8538.90 as applicable). For customers requiring CITES, REACH, or RoHS documentation, advise at time of order.

Customs Clearance: We declare goods accurately at fair market value. We do not under-declare. If your facility requires a formal import permit or end-user certificate for industrial automation components, notify us before shipment — we have handled this for buyers in regulated markets including India, Brazil, and the EU.

Tracking: A DHL or FedEx tracking number is provided within 2 hours of dispatch. For urgent shipments, we can arrange airport-to-airport freight with same-day airline booking if your local agent can handle the import side.

Every hour your process is down costs money. We treat your logistics timeline with the same urgency you do.
