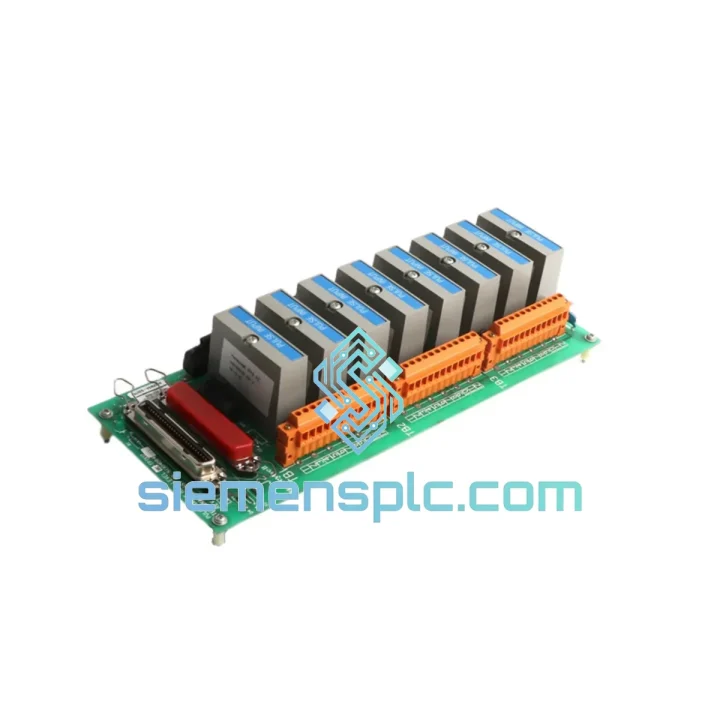

Honeywell MC-TPIX12 51304084-175 UCN Pulse Input Module – TDC 3000

Honeywell MC-TPIX12 51304084-175 – 12-Channel UCN Pulse Input Module for TDC 3000 and Experion PKS

The MC-TPIX12 (factory part number 51304084-175) occupies a dedicated slot in the Honeywell UCN card cage and serves as the primary pulse-signal acquisition node between field instrumentation and the process control loop. Its function is deterministic: each of the 12 input channels independently latches incoming pulse trains from turbine flow meters, shaft encoders, proximity switches, or magnetic pickups, accumulates counts in a hardware register, and transfers engineering-unit values to the UCN token-passing network at a fixed 5 Mbps scan rate. Because count accumulation occurs in dedicated on-board logic rather than in the host controller’s CPU, the module decouples high-frequency field events from the controller’s execution cycle, preventing scan-time jitter from corrupting flow totals or speed measurements. In custody-transfer metering and rotating-equipment protection applications, this architectural separation is not optional — it is the mechanism that guarantees measurement integrity under full process load.

The module interfaces natively with TDC 3000 LCN/UCN card cages and remains compatible with Experion PKS environments that retain a UCN infrastructure. No gateway, no protocol adapter, and no firmware patch are required for standard slot-for-slot installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MC-TPIX12 implements a distributed count-acquisition architecture that separates field-event capture from network communication at the hardware level. Each of the 12 input channels is served by an independent input conditioning circuit that performs three functions before any data reaches the backplane: signal-level translation (to normalize contact closure, NPN, PNP, and magnetic pickup signals to a common internal logic level), debounce filtering (to suppress contact bounce on mechanical switches without masking legitimate high-frequency pulses from electronic sensors), and edge detection (to identify rising or falling transitions as countable events).

Captured edge events increment a 32-bit hardware accumulator register dedicated to each channel. The register is read non-destructively by the UCN communication controller on each token pass, meaning the accumulator continues counting during the network read cycle — there is no sample-and-hold dead time that would cause pulse loss at high input frequencies. This design is particularly relevant in custody-transfer applications where even a single missed pulse represents a measurable volume error.

EMC performance is achieved through a combination of opto-isolation on each input channel (galvanically separating field wiring from backplane logic), a ground-plane layout that routes high-frequency return currents away from the analog input conditioning circuitry, and a shielded card-edge connector that maintains chassis ground continuity across the UCN backplane slot. The result is a module that meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial panel environments without requiring additional external filtering on field wiring.

The UCN communication controller on the module implements the full UCN token-passing protocol stack in hardware, including token acquisition, data framing, CRC generation and checking, and error reporting to the host controller. If a CRC error is detected on a received token, the module does not update its output data table — the previous valid value is held and a communication fault flag is set in the module status word, giving the host controller deterministic fault visibility without requiring application-layer polling.

System Integration Benefits

• Zero-latency count accumulation: Hardware accumulators capture pulse events independently of the UCN scan cycle, eliminating the pulse-loss risk that occurs when count logic runs in the host controller’s application task.
• Deterministic scan-time contribution: The module’s fixed UCN token-pass response time (sub-millisecond) does not vary with channel load, preserving the controller’s overall loop execution determinism.
• Transparent channel-level diagnostics: Each channel reports individual status bits (open-circuit, over-frequency, communication fault) to the host controller’s I/O status table, enabling alarm differentiation at the channel level without custom function blocks.
• Galvanic isolation per channel: Opto-isolation on each of the 12 inputs prevents ground-loop currents from field wiring from coupling noise into the backplane, reducing nuisance trips in electrically noisy environments such as motor control centers.
• Plug-and-play UCN compatibility: The module is recognized by TDC 3000 and Experion PKS I/O builders without manual address configuration; slot position determines the I/O address, consistent with standard UCN card cage conventions.
• Mixed-signal cage support: The MC-TPIX12 coexists in the same card cage with analog input (MC-TAIX12), analog output (MC-TAOY22), and digital I/O modules, allowing a single cage to serve a mixed-signal field junction without additional marshalling hardware.
• Engineering-unit scaling in firmware: Pulse-to-engineering-unit conversion (e.g., pulses per liter, pulses per revolution) is configured in the I/O builder and executed on the module, offloading scaling computation from the controller CPU and reducing application code complexity.
• Backward compatibility across Experion releases: The module’s UCN protocol implementation is consistent across TDC 3000 R600 through Experion PKS R500, allowing it to remain in service through multiple DCS software upgrades without hardware replacement.

Quality Assurance & Global Logistics

Every MC-TPIX12 unit dispatched from our Xiamen, China facility is a genuine Honeywell-manufactured module sourced through verified supply channels. Prior to shipment, each unit passes a structured four-stage inspection protocol: visual board-level examination for component integrity and counterfeit indicators; bench-level power-on test with UCN communication verification using Honeywell-compatible test equipment; firmware revision confirmation against Honeywell release documentation; and final packaging inspection with anti-static protection and humidity indicator cards.

Units are shipped with a test report and, upon request, a Certificate of Conformance (CoC). Export documentation including commercial invoice, packing list, and HS code declaration (HS 8537.10) is prepared for all international shipments. Standard dispatch from Xiamen is within 1–3 business days of order confirmation. Air freight to major industrial hubs — Rotterdam, Houston, Singapore, Dubai — typically achieves 3–5 transit days. Sea freight consolidation is available for multi-unit orders. All shipments include full tracking and are covered by the 12-month warranty from date of shipment.
