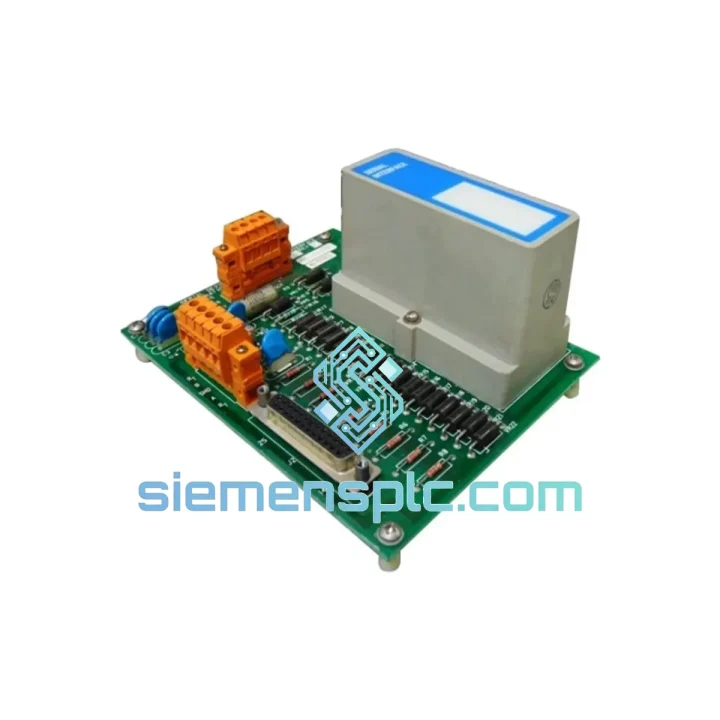

Honeywell MC-TSIM12 Interface Termination Module

MC-TSIM12 Down? Every Minute Costs You — Get the Replacement Module Shipped Today

Your DCS loop just went blind. The operator screen is flooding with bad PV alarms. Maintenance is on the phone. You already know the MC-TSIM12 is the culprit — the 12-channel interface termination module that bridges your field wiring to the Experion PKS MC controller chassis. You don’t need a lecture on what it does. You need one on the shelf, tested, packed, and moving toward your site before the shift ends.

We stock the Honeywell MC-TSIM12 in Xiamen, China. DHL Express to Rotterdam, Houston, Singapore, or Mumbai — typically 3–5 business days door to door. No broker delays, no minimum order quantity, no runaround. One module, one invoice, one tracking number.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom pattern that points to MC-TSIM12 failure: Multiple channels on a single I/O module simultaneously report bad quality or fixed-value readings. The fault is not in the field instruments — loop checks on the marshalling cabinet show correct signals at the terminal block. The problem is upstream, at the termination interface between the field wiring and the MC I/O module. That’s your MC-TSIM12.

Before you pull the module, verify:

• Check the Experion PKS Station for active hardware faults on the specific MC I/O slot. A “Module Failure” or “Communication Fault” alarm on the associated I/O module is the clearest indicator.
• Inspect the MC-TSIM12 connector pins for corrosion, bent contacts, or moisture ingress — particularly in coastal or high-humidity plants. A visual inspection takes 2 minutes and can save you from condemning a good module.
• Verify the I/O module seated in the carrier above the MC-TSIM12 is not the root cause. Swap the I/O module first if you have a spare — the termination module is passive and rarely fails before the active I/O card.

Replacement procedure (field-tested sequence):

• Step 1 — Document wiring: Photograph or sketch the field wiring terminations on the MC-TSIM12 before disconnecting anything. The 12-channel layout is straightforward but mislabeling one pair during reinstallation will cost you hours of loop checking.
• Step 2 — Confirm hot-swap eligibility: In most Experion PKS MC configurations, the termination module can be replaced with the I/O module removed and the carrier powered. Confirm with your site’s SIS/safety documentation before proceeding in live process areas.
• Step 3 — Remove the I/O module first: Unlatch and extract the MC I/O card seated above the termination module. Set it aside on an ESD mat.
• Step 4 — Disconnect field wiring: Loosen terminal screws systematically from channel 1 to 12. Tag each wire if your labeling is not already clear.
• Step 5 — Extract the MC-TSIM12: Release the module locking tabs and slide it out of the carrier. Note the orientation — the module is keyed but double-check before inserting the replacement.
• Step 6 — Insert replacement: Slide the new MC-TSIM12 into the carrier until it clicks. No address switches or DIP settings are required on this termination module — it is passive hardware with no firmware or addressing.
• Step 7 — Reconnect field wiring: Terminate channels 1–12 per your documentation. Torque terminal screws to spec (typically 0.5–0.6 Nm for this class of terminal block).
• Step 8 — Reseat the I/O module: Insert the MC I/O card and confirm the Experion PKS Station clears the hardware fault within 30–60 seconds of module recognition.
• Step 9 — Loop check: Verify all 12 channels return to good quality in the DCS. Inject a known signal at the field end if any channel remains in bad quality after module recognition.

Common fault codes associated with MC-TSIM12 degradation:

• “IOM Communication Failure” — Often triggered when the termination module’s connector interface degrades, breaking the signal path between field wiring and the I/O module.
• “Bad PV — Hardware Fault” — Multiple simultaneous bad PV alarms on channels sharing one MC-TSIM12 are a strong indicator of termination module failure rather than individual instrument faults.
• “Module Not Responding” — If the Experion PKS chassis cannot enumerate the I/O module after a power cycle, check the MC-TSIM12 seating and connector integrity before replacing the I/O card.

No firmware matching required. The MC-TSIM12 is a passive termination assembly — no firmware, no EEPROM, no address configuration. Replacement is purely mechanical. The intelligence lives in the I/O module above it.

Reliability in Harsh Conditions

Honeywell engineered the MC series for continuous operation in process plant environments — not office-grade conditions. The MC-TSIM12 termination module is built to the same industrial standard as the rest of the Experion PKS MC I/O subsystem.

Vibration resistance: The module’s chassis-mount design and positive-locking carrier mechanism prevent contact intermittency caused by mechanical vibration — a common failure mode in compressor houses, pump skids, and rotating equipment areas where vibration levels routinely exceed 1g.

Thermal stability: Rated for operation from 0°C to 60°C ambient, the MC-TSIM12 handles the thermal cycling typical of marshalling cabinets that see wide temperature swings between day and night shifts in outdoor or semi-outdoor installations. The terminal block materials maintain clamping force across repeated thermal expansion cycles, preventing the gradual loosening that causes intermittent signal faults in cheaper termination hardware.

Humidity and contamination: The module’s conformal-coated PCB (where applicable per revision) provides baseline protection against condensation and airborne contaminants — relevant in coastal refineries, offshore platforms, and tropical chemical plants where relative humidity regularly exceeds 85%. For installations in particularly aggressive environments, ensure the marshalling cabinet maintains positive pressure with filtered, conditioned air per Honeywell’s installation guidelines.

EMI immunity: Proper grounding of the MC carrier and cabinet earthing bus is critical in high-EMI environments (near VFDs, large motor starters, or high-current bus bars). The MC-TSIM12’s shielded terminal design supports proper cable shield termination, which is the single most effective measure against induced noise on analog signal channels.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard dispatch process:

• Order confirmed before 14:00 CST: Same-day dispatch for in-stock units.
• Packaging: Each MC-TSIM12 is individually wrapped in anti-static (ESD) bubble film, placed in a rigid cardboard box with foam inserts, and sealed with tamper-evident tape. The outer carton is labeled with part number, quantity, and destination customs information.
• Carrier selection: DHL Express is our primary carrier for most destinations. FedEx International Priority is used for US-bound shipments when DHL capacity is constrained. Both carriers provide door-to-door tracking with customs clearance included in the express service.
• Transit times (estimated): Europe (Rotterdam, Frankfurt, Amsterdam) — 3–4 business days. North America (Houston, Chicago, Toronto) — 4–5 business days. Southeast Asia (Singapore, Bangkok, Jakarta) — 2–3 business days. Middle East (Dubai, Dammam, Doha) — 3–4 business days. South Asia (Mumbai, Chennai) — 4–5 business days.
• Customs documentation: Commercial invoice, packing list, and HS code declaration are prepared for every shipment. For destinations requiring additional documentation (e.g., import permits, end-user certificates), please advise at the time of order.
• Tracking: A waybill number is sent to your email within 2 hours of dispatch. Real-time tracking is available directly on the DHL or FedEx website.

For time-critical shutdowns where standard express is not fast enough, contact us directly — we can arrange same-day courier handoff to the airport for next-flight-out (NFO) shipments to major hub cities.
