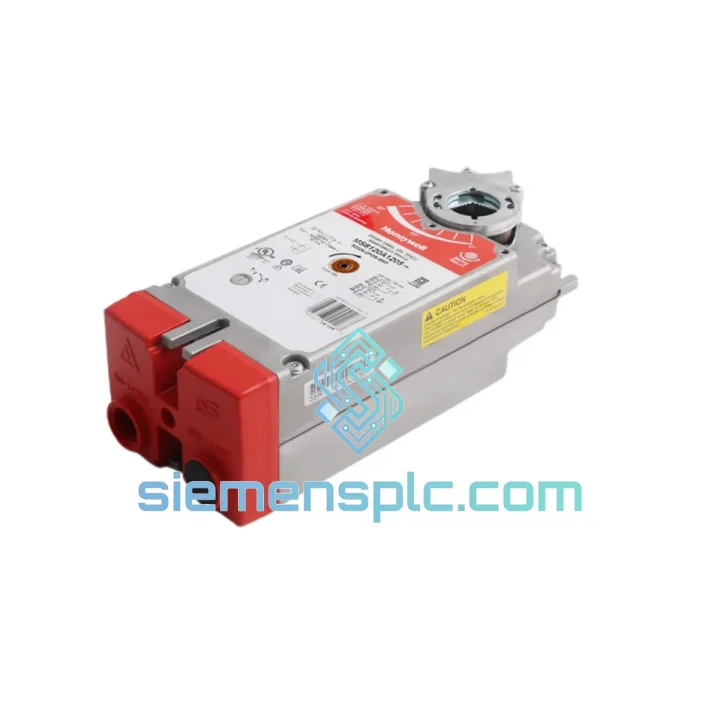

Honeywell MS8120A1205 S2024-2POS-SW2 Damper Actuator

MS8120A1205 S2024-2POS-SW2: Stop the Bleed — Every Hour of HVAC Downtime Has a Price Tag

A failed damper actuator in a live air handling system is not a maintenance ticket — it is a production stoppage. Zone pressurization collapses. Cleanroom differential pressure alarms. Data center hot-aisle temperatures climb. The Honeywell MS8120A1205 S2024-2POS-SW2 is the exact part that gets your system back online. We stock it. We ship it today. The question is how fast you need it.

This is a 2-position, spring return, direct coupled actuator from Honeywell’s proven S2024 Series. No crank arm. No linkage. Mount it directly to the damper shaft, wire the 24VAC control signal, and the damper is back under control. The SW2 dual auxiliary switch feeds end-position feedback straight to your BAS controller — open confirmed, closed confirmed, interlock logic restored. If power drops, the spring return drives the blade to its safe position automatically. That failsafe is not optional in pharmaceutical, food processing, or fire/smoke control applications. It is the reason this actuator was specified in the first place.

We have seen the same failure pattern dozens of times in the field: the actuator runs for 8–12 years, the internal gear train develops backlash, the auxiliary switch contact welds or opens intermittently, and the BAS starts logging nuisance alarms. Eventually the damper stops responding to the control signal entirely. At that point, the fastest path back to normal operation is a direct swap — same mounting footprint, same wiring, same BAS configuration. The MS8120A1205 S2024-2POS-SW2 is a drop-in replacement for the previous S2024 generation units in most installations.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom: Damper not responding to BAS command signal
Before condemning the actuator, verify 24VAC is present at the actuator terminals under load. A weak transformer or undersized wiring run will cause the actuator to stall or cycle erratically. If voltage checks out, disconnect the actuator from the damper shaft and command it to stroke manually — if it moves freely off-shaft but binds on-shaft, the damper blade or linkage is seized, not the actuator.

Symptom: BAS showing damper position fault / auxiliary switch alarm
The SW2 dual switch contacts are the most common wear point on long-service S2024 units. With the actuator powered and stroked to full open, use a multimeter to verify continuity across the auxiliary switch terminals. An open circuit at end-of-travel indicates a failed switch contact — the actuator body must be replaced. There is no field-serviceable switch replacement on this unit.

Replacement procedure — field checklist:

1. Isolate the AHU or damper section from airflow. Lock out / tag out the control panel feeding the actuator circuit.
2. Note the current damper blade position before removing the old actuator — photograph the shaft orientation and any position markings.
3. Disconnect the control wiring. Label each wire before removal. The S2024-2POS wiring is straightforward (common, hot, and auxiliary switch terminals) but labeling prevents errors during reinstallation.
4. Remove the actuator from the shaft. Inspect the shaft for corrosion, scoring, or deformation. A damaged shaft will cause premature failure of the replacement unit.
5. Mount the new MS8120A1205 S2024-2POS-SW2. Torque the shaft clamp to specification — under-torqued clamps allow shaft slip under load, causing position drift and auxiliary switch misalignment.
6. Reconnect wiring. Apply power and command the actuator through a full open/close cycle. Verify auxiliary switch feedback at the BAS controller before returning the system to automatic control.
7. Check BAS alarm history after 24 hours of operation to confirm the fault has cleared and no new position alarms are generated.

Configuration note: The S2024-2POS-SW2 does not require address configuration or firmware matching — it is a hardwired on/off device. However, if your BAS uses the auxiliary switch feedback for interlock logic (e.g., proving damper open before starting a fan), verify the switch wiring polarity matches your controller’s input expectation (normally open vs. normally closed contact).

Reliability in Harsh Conditions

The S2024 Series was not designed for a climate-controlled server room. It was designed for the mechanical room — the place where ambient temperatures swing from sub-zero during winter commissioning to 50°C in summer when the AHU is running at full load and the room has no ventilation. Honeywell’s internal testing subjects S2024 actuators to thermal cycling, high-humidity soak, and mechanical vibration profiles that simulate years of compressor and fan-induced vibration transmitted through the ductwork structure.

The direct coupled mounting design eliminates the crank arm and linkage assembly that are the primary failure points on older actuator designs. Fewer moving parts means fewer wear surfaces, fewer lubrication requirements, and fewer opportunities for mechanical slop to develop over time. The spring return mechanism uses a pre-loaded coil spring that maintains its return force specification across the full operating temperature range — a critical requirement in fire/smoke control applications where the failsafe must function reliably after years of standby.

In high-humidity environments such as coastal facilities, food processing plants, and tropical climates, the actuator housing provides adequate ingress protection for typical mechanical room installations. For outdoor or wash-down applications, additional weatherproofing enclosures should be specified — contact our technical team for guidance on suitable enclosure options.
