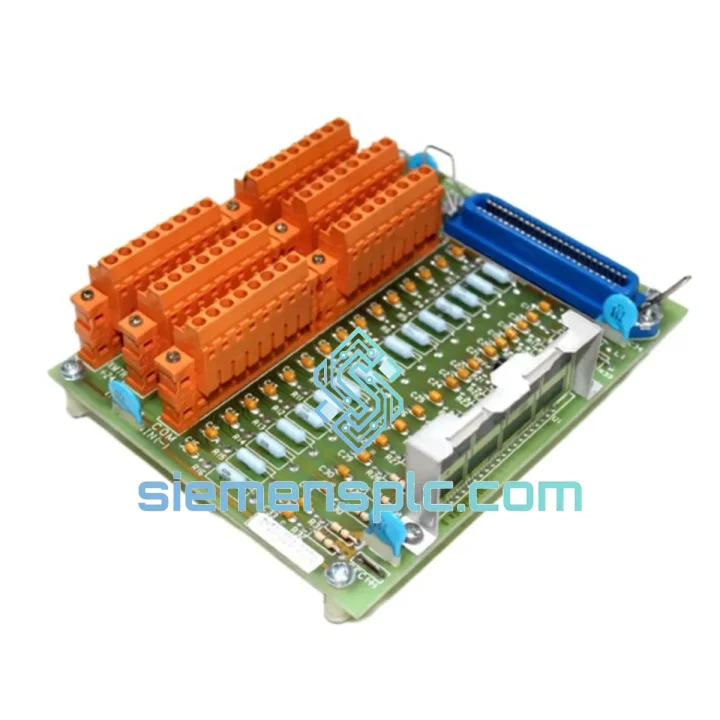

Honeywell MU-TAIH02 51304453-100 Analog Input Termination Board

Honeywell MU-TAIH02 51304453-100 — Stop the Bleed: Every Hour of DCS Downtime Has a Price Tag

When your Honeywell Experion PKS or TPS system throws a bad AI channel fault and your process goes to manual, the clock starts immediately. In a mid-size refinery, unplanned DCS downtime runs $18,000–$65,000 per hour in lost throughput, emergency labor, and off-spec product. The MU-TAIH02 (P/N 51304453-100) is the analog input high-level termination board that sits between your field wiring and the AI module backplane — and when it fails, all 16 channels on that slot go dark simultaneously. There is no partial failure mode. You either have the replacement on the shelf or you are calling freight forwarders at 2 AM.

siemensplc.com maintains verified stock of the MU-TAIH02 51304453-100 in Xiamen, China — one of Asia’s primary international air freight hubs. DHL Express and FedEx International Priority shipments clear Xiamen Gaoqi International Airport daily, reaching Rotterdam, Houston, Singapore, and Mumbai in 48–72 hours door-to-door. If your plant is down, this is the fastest path from fault to fix outside of a local OEM warehouse.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How the MU-TAIH02 fails in the field — and how to confirm it before you pull the board:

The most common failure signature is a simultaneous loss of all 16 AI channels on a single slot, with the Experion PKS system logging IOLINK_COMM_FAIL or AI_CARD_FAULT against the associated MC-PAIH03/04 module. If only 1–3 channels are bad, suspect field wiring or transmitter failure first — the MU-TAIH02 fails as a unit, not channel-by-channel. Secondary failure modes include intermittent signal noise on all channels (often caused by a cracked solder joint on the 40-pin connector from thermal cycling) and complete loss of HART pass-through while analog signals remain intact (points to the HART multiplexer circuit on the board).

Pre-replacement checklist (do this before ordering to confirm the board is the fault source):

• Verify 24 VDC loop power supply output at the termination board input terminals — a sagging PSU mimics board failure exactly
• Reseat the 40-pin ribbon cable between the termination board and the AI module — connector oxidation is common in high-humidity marshalling cabinets
• Check Experion system logs for IOLINK_COMM_FAIL timestamps — if the fault correlates with ambient temperature peaks, suspect thermal solder joint failure on the termination board
• Swap the AI module (MC-PAIH03/04) to a known-good slot first — if the fault follows the module, the termination board is clear
• If the fault stays on the same slot after module swap, the MU-TAIH02 is confirmed faulty

Replacement procedure — field-tested sequence:

1. Notify the control room operator — all 16 channels on this slot will go to last-value hold or bad-input alarm during replacement; confirm process is in a safe state or manual control
2. De-energize loop power to the termination board terminal strip — do not rely on the AI module power interlock alone
3. Photograph the existing field wiring at the terminal block before disconnecting — the 40-pin interface is polarized but individual terminal assignments must be verified against your as-built drawings
4. Disconnect the 40-pin ribbon cable from the termination board — note the cable orientation tab; incorrect reinsertion will cause all channels to read zero without generating a fault alarm
5. Remove field wiring from the terminal block — label each conductor with its channel number before removal if your as-built drawings are not current
6. Install the replacement MU-TAIH02 — verify hardware revision matches your DCS release (see Honeywell compatibility matrix; 51304453-100 is compatible with Experion PKS R400 and later)
7. Reconnect field wiring and ribbon cable — torque terminal screws to 0.5 N·m; under-torqued connections are the leading cause of repeat failures within 6 months
8. Restore loop power and verify all 16 channels return to live values in the Experion operator station within 30 seconds of power-up
9. Perform a HART scan on the restored channels if your plant uses AMS Device Manager — confirm device tags match pre-fault records before releasing to automatic control

Configuration notes specific to this board: The MU-TAIH02 has no onboard DIP switches or jumpers for channel configuration — all input range and engineering unit scaling is managed at the AI module (MC-PAIH03/04) level in Experion Control Builder. No re-configuration is required at the termination board after replacement. However, if you are replacing a 51304453-050 (earlier revision) with a 51304453-100, verify that your AI module firmware is at R400.2 or later — earlier firmware versions do not support the revised HART multiplexer circuit on the -100 revision board.

Reliability in Harsh Conditions

The MU-TAIH02 is designed for continuous operation in the environments where process plants actually run — not laboratory conditions. The PCB substrate is conformal-coated to IPC-CC-830B standard, providing resistance to condensation, industrial cleaning solvents, and airborne contaminants including H₂S and SO₂ at concentrations typical of refinery marshalling cabinets. This coating is the primary reason boards from humid coastal refineries and offshore platforms outlast their expected service life when properly installed.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1G) — sufficient for marshalling cabinets mounted on structural steel in operating process units. The 40-pin DIN rail connector uses a positive-latch mechanism that maintains contact integrity under continuous vibration without requiring periodic re-torquing. Thermal cycling performance is validated to IEC 60068-2-14 (−25 °C to +70 °C, 100 cycles) — the board survives repeated plant shutdowns and cold restarts without solder joint degradation.

Every unit shipped from siemensplc.com is bench-tested on a live Honeywell-compatible AI module fixture before dispatch. All 16 channels are verified for signal pass-through accuracy and HART communication. Boards that show any channel deviation >0.1% full-scale or intermittent HART response are rejected — not reworked and reshipped. You receive a functional test report with your shipment documenting channel-by-channel results.

Global Express Logistics

siemensplc.com ships from Xiamen, Fujian Province — a designated China (Fujian) Pilot Free Trade Zone port with streamlined customs export procedures for industrial electronic components. Export classification for the MU-TAIH02 falls under HS code 8537.10 (boards, panels, and consoles for electric control), which carries zero export restriction and clears Chinese customs within 4–8 hours of shipment booking under standard procedures.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Bangkok, Jakarta): 24–36 hours via DHL Express or FedEx IP
• Middle East (Dubai, Riyadh, Doha): 36–48 hours via FedEx International Priority
• Europe (Rotterdam, Frankfurt, London): 48–72 hours via DHL Express Worldwide
• North America (Houston, Los Angeles, Toronto): 48–72 hours via FedEx International Priority
• South America (São Paulo, Buenos Aires): 72–96 hours via DHL Express
• Australia/New Zealand: 48–60 hours via DHL Express

All international shipments include a complete export documentation package: commercial invoice with declared value, packing list with net/gross weight, certificate of origin (China), and HS code declaration. For orders requiring import duty pre-calculation (DDP terms), contact us before order confirmation — we support DDP shipping to EU, UK, and GCC countries on request.

For genuine plant emergency situations — confirmed process shutdown, safety system impairment, or production loss exceeding $10,000/hour — contact us via WhatsApp at +86 18359268345 for immediate stock confirmation and same-day booking. We do not require a purchase order to initiate emergency shipment preparation; a written email confirmation is sufficient to begin packing while commercial terms are finalized.
